What Are the Types of Input and Output Modules?

WHAT IS AN I/O MODULE?



Input/Output Modules, or I/O Modules, manage the communication between a CPU and a network, including the transfer of data, the management of power loads, and the control of machine functions.



This allows system integrators to link different devices together, giving them better management over the industrial network. I/O modules are particularly useful when dealing with older machinery, devices, and systems that can't naturally communicate using a desired industrial protocol.



I/O modules assist in expanding a manufacturer's network to include all manufacturing equipment. This expansion enables better system control and increased visibility into operations. They also tackle the difficulty of gathering data from peripheral devices, which may come in varying amounts, speeds, and formats.



Various devices, such as sensors, actuators, monitors, and valves, can provide data through an I/O module. Additionally, I/O modules can serve as accessory devices for PLCs and HMIs.

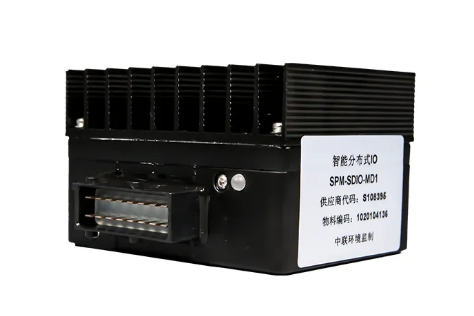

Input/Output modules


WHAT ARE THE MAIN FUNCTIONS OF AN I/O MODULE?



I/O modules play crucial roles in industrial settings, enabling the exchange of data between peripheral devices and the network. Here, we highlight the key functions of I/O modules:



Error Detection: I/O modules possess error-detection capabilities, identifying and reporting errors to the CPU. One method involves using the parity bit to detect errors.

Processor Communication: This essential function involves several components:

  • Command Decoding: Receiving and interpreting commands sent from the processor.

  • Data Exchange: Facilitating data exchange between peripherals, processors, and main memory.

  • Status Reporting: Communicating peripheral status updates to the processor.

  • Address Decoding: Organizing connected peripherals by managing their unique addresses.

Data Buffering: I/O modules use data buffering to control the speed of data transferred from the processor to peripheral devices, compensating for varying latency in peripherals.

Device Communication: Enabling communication between connected peripheral devices.

Control and Timing: I/O modules are designed to oversee data transactions between the internal system and peripheral devices.



WHAT ARE THE VARIOUS TYPES OF I/O COMMUNICATION METHODS?



There are three primary types of I/O communication methods:



1. Programmed I/O: Here, data transfer from an I/O device to memory necessitates the CPU to initiate a program. The CPU remains in a loop until the I/O device is ready to transfer the data.

2. Interrupt Driven I/O: In this method, the CPU issues a read command to the I/O device. When the device is prepared to transfer data, it sends an interrupt signal to the processor. The CPU then checks the device's status and writes that information into memory if the device is ready.

3. Direct Memory Access (DMA): This communication technique allows the I/O device to directly send and receive data from memory, bypassing the CPU entirely. This process enhances the speed of memory operations.



WHAT ARE THE 3 CATEGORIES OF INPUT/OUTPUT?



There are three types of I/O operations:



Sensory Input

  • Digital Input

  • Analog Input

Control Output

  • Direct Digital Output

  • Modulated Digital Output

  • Analog Output

Data Transfer

  • Parallel

  • Serial



WHAT PURPOSE DO I/O MODULES SERVE IN PLCs?



I/O modules are integrated into PLCs or added to enhance their capabilities, connectivity, and process control. They play a crucial role by managing incoming communication to the PLC and executing commands sent by processors. This functionality enables them to detect errors, exchange data, buffer information, and oversee data transactions between internal systems and peripheral devices.



WHAT SETS ANALOG AND DIGITAL I/O APART?



Analog and Digital I/O differentiate based on the signal type transmitted between devices and systems within an I/O operation.



Analog Signals:

Analog signals are continuous, representing a continuous range of values over time. For instance, consider a sound wave that represents an uninterrupted measurement of sounds over a period. Other examples include measurements like current or voltage.



Digital Signals:

Digital signals operate in binary form, typically denoted as either "On" or "Off," "1" or "0." They are discrete, not continuous like analog signals. Due to the prevalence of digital technology, digital I/O is becoming the standard for data collection, surpassing Analog I/O. Nevertheless, analog signals are still utilized and can also be converted into digital signals.



CONCLUSION



I/O modules are a key component of industrial networking, ensuring connectivity and control of systems, processes, and devices. Ensure data collection from peripheral devices and legacy equipment that is not compatible with desired industrial protocols.



Without Input/Output modules, organizations would be unable to exchange data between peripheral devices and their network.
