9 Channels I/O Module
Input and Output module

Input and Output module

Communication: 1✕CAN

Total IO: 9(2 inputs/7 outputs)

Max. Load: 40A

2 DIH inputs

1 PWM output with current feedback, rated current 6A

3 H-bridge outputs, rated current 15A

1 CAN, support CANOpen

1 status indicator

All input ports support misconnection of power and ground.

All output ports with short-circuit and over-temperature protection.

Protection grade: IP67

Input and Output module SPM-SDIO-MD2

-High current, multiple output ports, high protection class

-All ports have misconnected power and ground protection,

-The output port has short-circuit and overheating protection

-All output ports have open circuit detection function for easy fault diagnosis

Input and Output Module Applications SonnePower

Industrial Automation: Utilize the module for precise control and monitoring in industrial automation applications such as assembly lines, packaging systems, and material handling equipment.

Robotics: Integrate the module into robotic systems for controlling various actuators, sensors, and feedback mechanisms, enabling versatile robot functionalities in manufacturing, logistics, and research.

Machinery Control: Employ the module to regulate and monitor machinery functions in sectors like agriculture, forestry, and mining, ensuring optimal performance and efficiency while safeguarding against potential faults.

Automotive Systems: Seamlessly incorporate the module into automotive systems for advanced control of vehicle components such as motors, pumps, and valves, enhancing vehicle performance, safety, and energy efficiency.

Aerospace Applications: Deploy the module in aerospace systems for controlling actuators, sensors, and communication interfaces, enabling reliable operation and precise control in aircraft, satellites, and unmanned aerial vehicles (UAVs).

Outdoor Environments: Benefit from the module's IP67 protection rating for outdoor applications in harsh environments such as construction sites, agricultural fields, and marine vessels, where ruggedness and reliability are paramount.

Fault Diagnosis: Leverage the module's open circuit detection function for easy fault diagnosis, simplifying troubleshooting and minimizing downtime in critical applications, thereby enhancing operational efficiency and reducing maintenance costs.

Housing MaterialAluminum

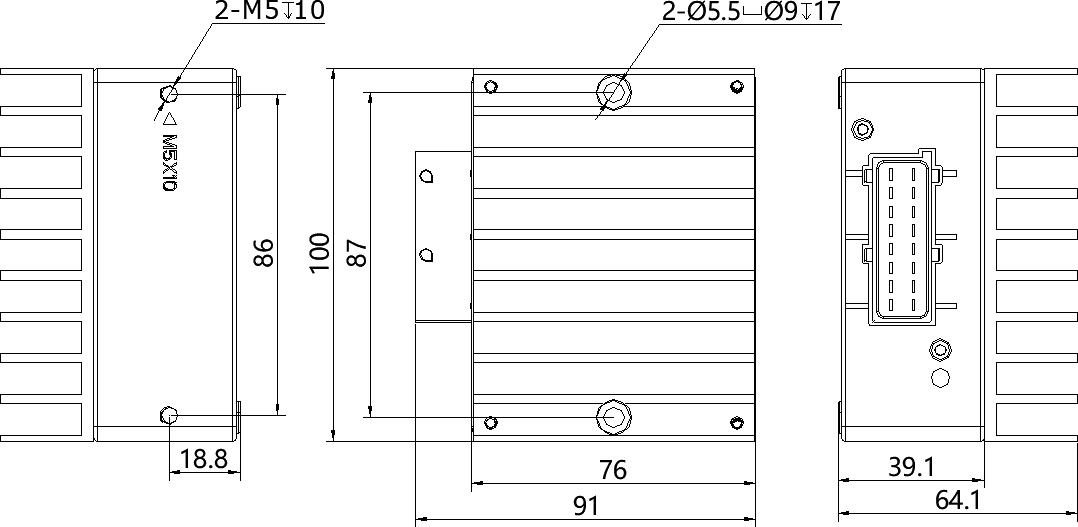

Size100×91×64.1 mm
Installation2 x M5×30 (side) or 2 x M5×10 (bottom) screw mounting
Connector16-Pin Tyco
Working temperature-40...85 ℃
Protection classIP67
Total IOs9 channels (2 input/7 outputs)
IO Resource2xDIH; 3xH-Bridge(3A); 1xPWMiH/DOH(6A)
InputUp to 2 inputs can be configured

SonnePower's Input and Output Module, where customization meets innovation. Beyond standard offerings, SonnePower provides tailored solutions to suit your unique requirements.

Elevate your systems with SonnePower—your partner for customized excellence.
