12 Channels I/O Module

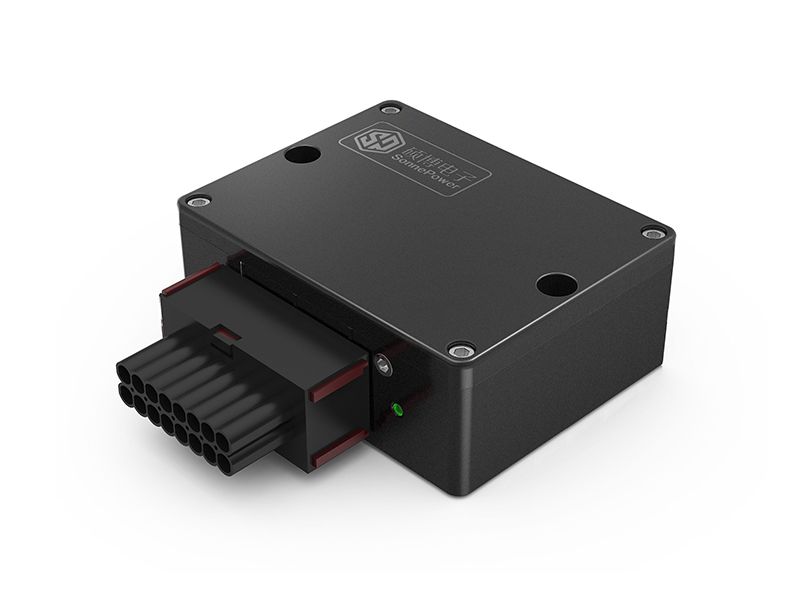

Input and Output module SPC-SDIO-S1200

Input and Output module SPC-SDIO-S1200

Communication: 1✕CAN

Total IO: 12(12 inputs/ 0 outputs)

Protocol: CAN open

The SPC-SDIO-S1200 Intelligent Distributed IO is the latest cost-effective solution developed by SonnePower. With 1 CAN bus and 12 input resources, this product offers high port versatility. The input ports can collect signals such as high/low levels, voltage, resistance, and pulses.

In addition, this product boasts high protection level, compact size, high integration, flexible port configuration, and quick response speed. These advantages make it an ideal choice as the main controller in distributed applications.

· Powerful 32-bit high-performance CPU

· 12-channel IO resources with high port multiplexing rate

· Supports 1 channel CAN with CANOpen compatibility

· A blue status indicator

· Input ports protected against power and ground misconnection

· Output ports have short-circuit and overheating protection

· IP67 protection grade for enhanced durability

Housing MaterialAluminum
Size100×91×39.1 mm
Installation2 x M5×30 (side) or 2 x M5×10 (bottom) screw mounting
Connector16-Pin Tyco
Working temperature-40...85 ℃
Protection classIP67
Total IOs12 channels (12 inputs/0 outputs)
IO resource2xAIU (0-32V); 12xDIH; 2xAIR(1-600Ω); 6xAIU(0-10V);8xDIL; 4xPI(≦30KHz); 2xPI(AB)(≦30KHz); 6xAII (4-20mA)
InputUp to 12 inputs can be configured



Sanitation Machinery

Agricultural Machinery

Port Machinery

Pavement Construction Machinery

Aerial Work Machines
