What is IO Module in PLC: A Comprehensive Overview

In the world of industrial automation and control systems, the Programmable Logic Controller (PLC) serves as the central brain, coordinating and executing a wide range of tasks. To interface with the physical world, PLCs rely on Input/Output (I/O) modules. In this comprehensive guide, we'll delve into the IO module in PLC, exploring its functions, types, and significance in industrial applications.


 The Role of I/O Modules in PLC


I/O modules, also known as I/O cards or I/O devices, are essential components of PLC systems. These modules act as intermediaries, enabling the PLC to interact with various external devices, sensors, and actuators. Their primary function is to convert the electrical signals received from the field into a format that the PLC can process and vice versa.


 Key Functions of I/O Modules in PLC:


1. Signal Conditioning: I/O modules often perform signal conditioning tasks such as amplification, filtering, isolation, and voltage level shifting. This ensures that the signals from sensors and devices are suitable for processing by the PLC's digital circuitry.


2. Data Transfer: I/O modules facilitate the bi-directional transfer of data between the PLC's CPU and the field devices. They receive inputs, convert them to a digital format, and transmit them to the PLC. Conversely, they receive digital output signals from the PLC and convert them into the necessary format for controlling field devices.


3. Isolation: I/O modules often incorporate electrical isolation to protect the sensitive PLC circuitry from external electrical noise and voltage spikes. This isolation ensures the integrity and reliability of data transmission.


4. Scalability: PLC systems can be customized to suit specific application requirements. Engineers can add or remove I/O modules as needed, making the system highly scalable and adaptable to changing operational needs.


5. Fault Detection: Many I/O modules feature diagnostic capabilities that monitor the health and status of field devices. This enables the early detection of faults, reducing downtime and maintenance costs.


6. Specialized Functions: Some I/O modules offer specialized functions, such as high-speed counting, analog signal processing, or communication with specific fieldbus protocols. These modules are tailored to specific industrial applications.

I/O Modules in PLC

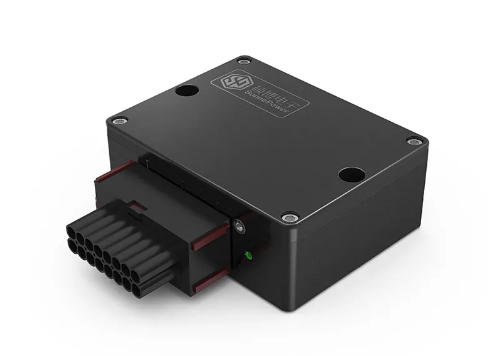

SPC-SDIO-S0808SPK Intelligent Distributed IO

 Types of I/O Modules


I/O modules come in various types, each designed to handle specific types of signals and devices. The choice of I/O module depends on the nature of the application and the requirements of the system. Here are some common types of I/O modules:


 1. Digital Input (DI) Module:

   - DI modules are used to interface with digital sensors and devices that provide discrete on/off signals.

   - Typical applications include limit switches, push buttons, proximity sensors, and end-of-travel switches.


 2. Digital Output (DO) Module:

   - DO modules are responsible for controlling digital output devices, such as relays, solenoids, and indicator lights.

   - They convert digital signals from the PLC into electrical signals to actuate these devices.


 3. Analog Input (AI) Module:

   - AI modules are used to interface with analog sensors that provide continuous signals, such as temperature sensors, pressure transducers, and potentiometers.

   - They convert analog signals into digital values for processing by the PLC.


 4. Analog Output (AO) Module:

   - AO modules are responsible for generating analog output signals. They are used to control devices that accept continuous analog signals, such as variable speed drives and proportional control valves.


 5. Specialized Modules:

   - Some applications require specialized I/O modules designed for unique tasks. These modules can include high-speed counter modules, motion control modules, or communication modules for specific fieldbus protocols like Profibus or Modbus.


 The Significance of I/O Modules in Industrial Applications


I/O modules play a critical role in the operation of industrial systems and processes. Their significance can be highlighted through various industrial applications:


 1. Manufacturing and Assembly Lines:

   - I/O modules enable the PLC to monitor and control machinery, sensors, and actuators on assembly lines. They ensure the seamless operation of conveyor belts, robotic arms, and quality control sensors.


 2. Process Control:

   - In industries like chemical processing, oil and gas, and utilities, I/O modules connect to sensors and transmitters that monitor variables such as temperature, pressure, and flow rates. They enable the PLC to make real-time adjustments to maintain process stability and safety.


 3. Building Automation:

   - In modern building management systems, I/O modules are integral for HVAC control, lighting, security, and access control. They facilitate the integration of sensors and control devices to optimize building performance and energy efficiency.


 4. Transportation and Automotive:

   - In transportation systems, I/O modules are used for vehicle control, railway signaling, and traffic management. In the automotive industry, they control assembly line robots and quality control sensors.


 5. Energy and Power Generation:

   - Power plants rely on I/O modules to interface with sensors and devices that monitor and control electrical generators, turbines, and cooling systems. They ensure safe and efficient power generation.




SonnePower recognizes the pivotal role of the IO module in industrial automation. Our cutting-edge IO modules interface seamlessly with an extensive range of sensors, actuators, and devices, ensuring smooth signal conditioning, data transfer, isolation, and fault detection. With unparalleled versatility and adaptability, our IO modules are tailored to meet the specific requirements of diverse industrial applications. Trust SonnePower for reliable and efficient IO solutions, empowering your industrial control systems for optimal performance and productivity. Get quote right now!
