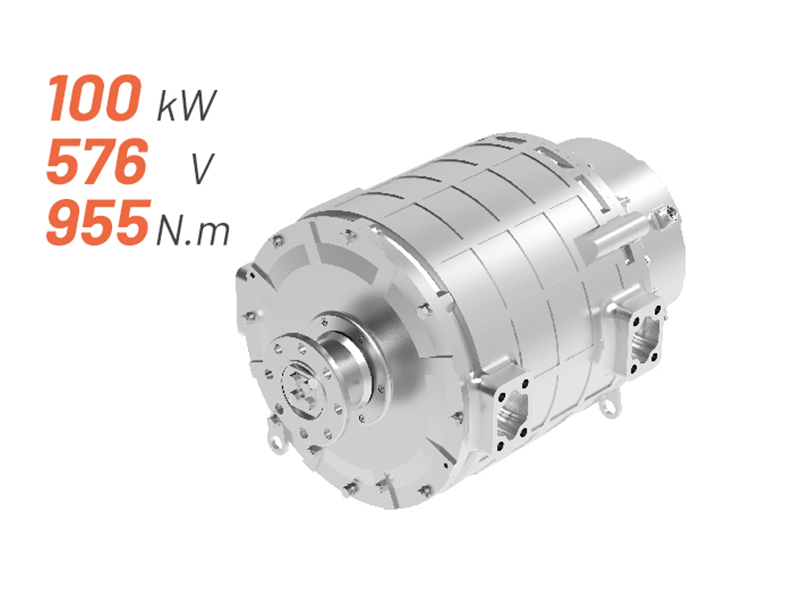

The MSP38-100S955X1000H400 motor drive is designed with an integrated powertrain concept, integrating motor and electronic control core modules into a single unit, resulting in a motor and control integrated powertrain. This new powertrain product incorporates advanced vector control algorithms and CAN bus communication technology, catering to the efficient assembly and testing needs of add-on systems for sanitation vehicles and construction machinery. It can be applied to motor drive and control systems for add-on applications in sanitation vehicles and construction machinery, offering high reliability, stability, and safety.
The MSP38-100S955X1000H400 motor control powertrain product features compact size, high efficiency, maintenance-free operation, strong electromagnetic compatibility, and convenient debugging. It enhances system reliability and achieves a high level of integration for add-on systems (such as fans, water pumps, and oil pumps) in sanitation vehicles, contributing to a highly integrated drive system.
| Specification for MSP38-100S955X1000H400 | |||
| Rated Voltage | 576V DC | Rated Torque | 955N.m |
| Rated Power | 100kw | Rated Current | 189A |
| Rated Speed | 1000rpm | Protection Class | IP67 |
| Cooling Method | Liquid Cooling | Number of Phase | 3-ohase |
| Insulation Class | H | Duty Cycle | S9 |
| Project | Independent Motor + Motor Controller Solution | Integrated Powertrain Solution |
| Weight | Heavy | Lightweight |
| Volume | Large | Integrated installation, reduced space occupancy |
| EMC | Poor | No three-phase line magnetic field radiation interference |
| Assembly & debugging | Difficult | Powertrain assembly, simplifying main factory assembly process |
| NVH | Poor | Powertrain-level NVH testing |
| Cost | High | Reduced external connections of high-voltage three-phase wire harnesses, signal wire harnesses, water pipes, brackets, assembly labor hours, lower cost |
