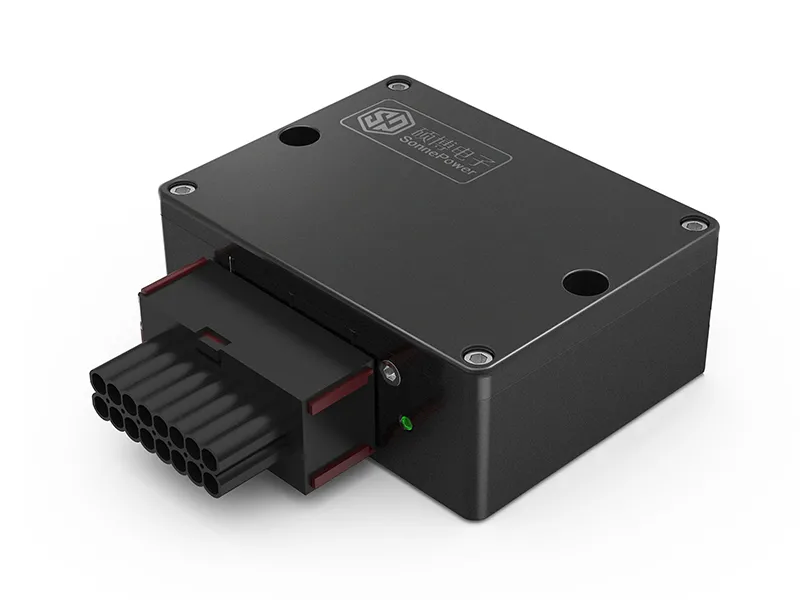

Off-Highway Vehicle Controller SPC-SFMC-X0402A

Off-Highway Vehicle Controller SPC-SFMC-X0402A

Power supply 8-32VDC

Communication 3×CAN 1×RS232

The Off-Highway Vehicle Controller SPC-SFMC-X0402A is a programmable controller developed on the CoDeSys 3.5 software platform. The controller programming complies with the IEC-61131-3 standard, allowing users to develop application programs using the CoDeSys 3.5 software.

Designed specifically for mobile vehicles and construction machinery, the Off-Highway Vehicle Controller SPC-SFMC-X0402A is capable of withstanding harsh working environments characterized by large temperature variations, high vibrations, strong impacts, and intense electromagnetic interference.

The Off-Highway Vehicle Controller SPC-SFMC-X0402A finds its primary applications in heavy-duty vehicles, construction machinery, crushing equipment, agricultural machinery, and sanitation equipment.

Off-Highway Vehicle Controller SPC-SFMC-X0402A Highlights

●Has high integration and rich resources.

Includes D+ functionality, supporting startup and ignition detection.

All ports support reverse polarity and over voltage protection.

The output ports are equipped with short-circuit and overheating protection.

All output ports have open circuit detection functionality, which facilitates fault diagnosis.

Off-Highway Vehicle Controller Technical Details:

●Power Supply: Operating voltage range from 8V to 32VDC, ensuring compatibility with various vehicle systems.

●Communication: Equipped with 3 CAN ports and 1 RS232 port, facilitating seamless data exchange and integration with other vehicle components.

●Programming Environment: Utilizes CoDeSys 3.5 software platform, providing a familiar and versatile environment for developing application programs.

●Total IO: Features 4 IO ports, comprising 4 inputs and 2 outputs, enabling flexible interfacing with sensors, actuators, and other peripherals.

●Input and Output Ports:

   ●4 Digital Input/High-Speed Analog Input (DIH/AIU) ports

   ●2 Analog Input (AII) ports

   ●2 Digital Output/High-Speed Pulse Width Modulation (DOH/PWMH) ports

   ●1 Voltage Output port (+5V/+10V, Max 100mA), offering additional power options for external devices.

●Operating Temperature: Designed to operate in extreme conditions, with a wide temperature range of -40°C to +85°C, ensuring reliability in challenging environments.

●Dimensions: Compact and space-efficient design measuring 100mm in length, 114.2mm in width, and 39.1mm in height, facilitating easy integration into vehicle systems.

●Protection: IP67-rated protection, safeguarding against dust and water ingress, ensuring durability and longevity in harsh operating environments.

●Connector Kit: Includes a 16-Pin AMP connector kit, simplifying installation and ensuring secure connections in rugged conditions.

This comprehensive set of technical specifications highlights the robustness, versatility, and reliability of the Off-Highway Vehicle Controller, making it an ideal choice for demanding vehicle applications.
