Modern heavy vehicles are becoming more intelligent every year. Construction machinery, agricultural equipment, mining trucks, airport ground support vehicles, and municipal machines now rely on dozens of electronic devices working together in real time.
A typical machine may include acontroller, display, engine ECU, hydraulic control system, sensors, keypads, cameras, and remote I/O modules. If each device required dedicated wiring to communicate with every other device, the vehicle would quickly become expensive, difficult to maintain, and challenging to upgrade.
This is why manufacturers increasingly rely on CAN bus networking systems. Rather than connecting every device through individual wires, CAN bus allows multiple electronic devices to communicate through a shared network.
In this article, we explain why CAN bus has become the standard communication technology for heavy vehicles and how it helps manufacturers build more reliable and scalable machines.
CAN (Controller Area Network) is a communication system originally developed for vehicles. It allows multiple electronic control units (ECUs) and intelligent devices to exchange data through a common communication network.
Instead of using separate signal wires between every device, CAN bus uses a shared communication line. Each device can send and receive messages on the network.
For example, a pressure sensor may send hydraulic pressure data to a controller. The controller can then process the information and send commands to a display or hydraulic valve without requiring additional point-to-point wiring.
Common CAN bus devices found on heavy vehicles include:
Mobile machinery controllers
Engine ECUs
CAN displays
CAN keypads
Sensors
Remote I/O modules
Joysticks
Telematics units
This architecture makes communication faster, cleaner, and easier to manage.

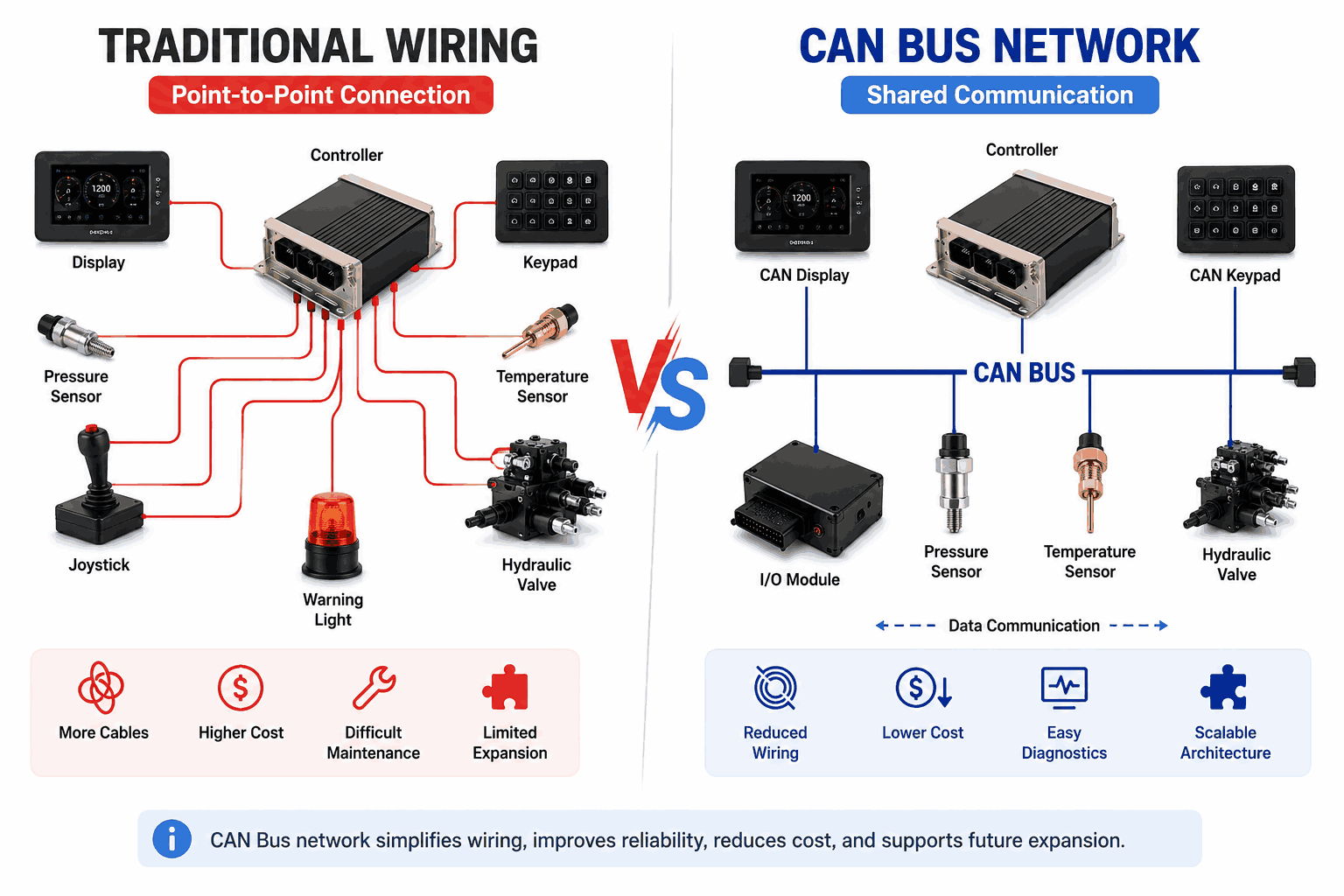

Before CAN bus became widely adopted, vehicle manufacturers relied heavily on point-to-point wiring.
In a traditional system, every switch, sensor, lamp, and actuator required dedicated wiring connected directly to a controller or relay system.
As machine complexity increased, this approach created several problems.
A modern heavy vehicle may contain dozens of sensors and actuators. Running individual wires to every device creates large and complex wiring harnesses.
Long wiring harnesses increase:
Material costs
Assembly time
Vehicle weight
Installation complexity
Troubleshooting a large wiring harness can be time-consuming.
Technicians must trace individual wires throughout the machine to identify faults. This becomes especially difficult on large equipment such as cranes, mining vehicles, and agricultural sprayers.
Adding a new display, sensor, or hydraulic function often requires additional wiring and redesign work.
As a result, future upgrades become more expensive and difficult to implement.
One of the biggest advantages of CAN bus is the ability to reduce wiring.
Instead of connecting every device directly to a central controller, devices communicate through a shared network.
This significantly reduces the number of wires required throughout the machine.
Benefits include:
Lower material costs
Reduced vehicle weight
Faster assembly
Cleaner machine architecture
For large machines, the reduction in wiring can be substantial.
Although CAN-enabled devices may initially appear more advanced, the overall system cost is often lower.
Reduced wiring means:
Less cable
Fewer connectors
Shorter assembly times
Lower installation costs
Manufacturers can often offset the cost of intelligent devices through savings in vehicle integration and production.
Heavy vehicles operate in demanding environments.
Machines are frequently exposed to:
Vibration
Dust
Moisture
Electrical noise
Temperature extremes
CAN bus was designed specifically for these conditions.
Built-in error detection and fault management mechanisms help ensure reliable communication even in harsh operating environments.
This reliability is one reason CAN bus remains the preferred communication technology for off-highway equipment.
Modern machines generate large amounts of operating data.
Through CAN bus networks, controllers and ECUs can share diagnostic information throughout the vehicle.
Manufacturers can monitor:
Engine status
Hydraulic pressure
Fuel consumption
Sensor faults
System warnings
This makes troubleshooting faster and helps reduce machine downtime.
For fleet operators, improved diagnostics can also support preventive maintenance strategies.
Machine designs rarely remain unchanged throughout their lifecycle.
Customers often request:
Additional hydraulic functions
Extra sensors
New displays
Remote monitoring systems
CAN bus makes expansion much easier because new devices can often be added to the existing network without major wiring changes.
This flexibility is particularly valuable for OEMs that offer multiple machine configurations from the same platform.
A modern heavy vehicle may use CAN bus as the backbone of its electronic control system.
A typical architecture includes:

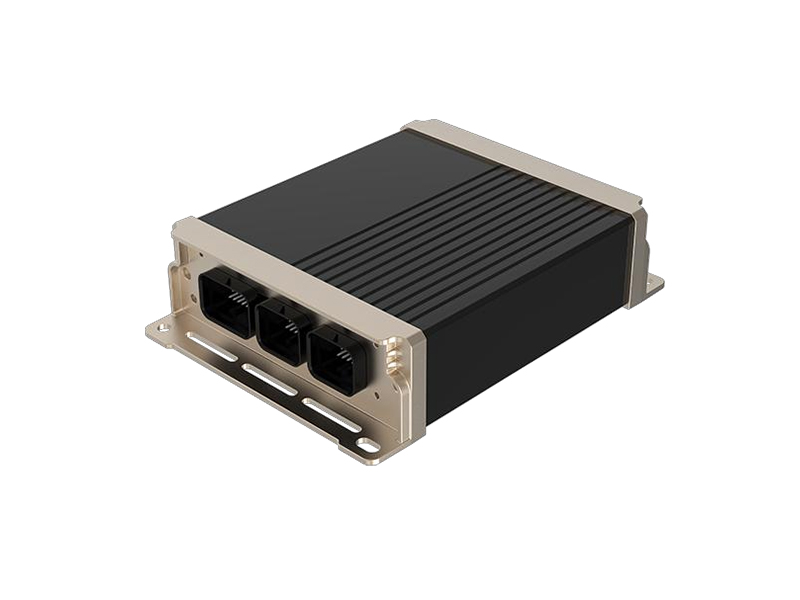

The controller acts as the central decision-making unit.
It receives information from sensors and operator inputs before generating commands for valves, motors, and other outputs.

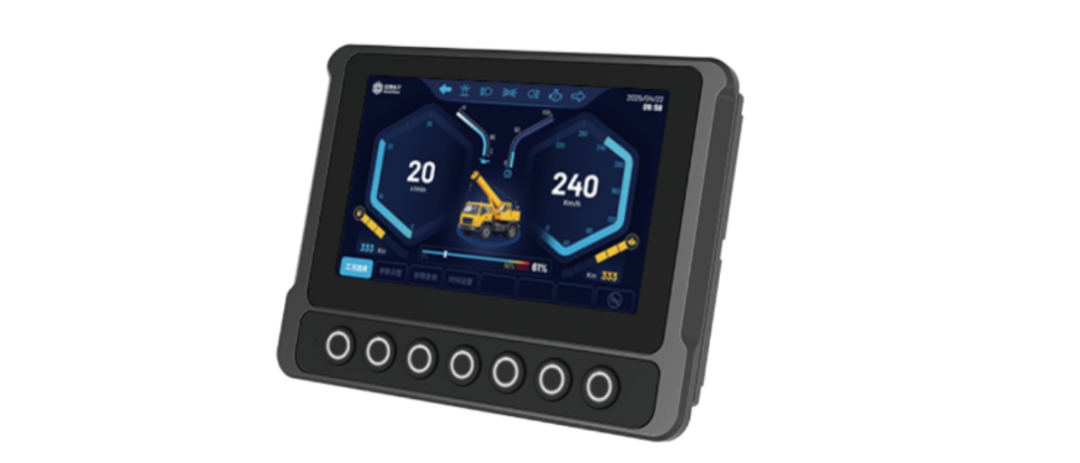

The display provides real-time machine information.
Operators can view:
Engine data
Hydraulic parameters
Alarm messages
Machine status
Because the display communicates through CAN bus, large amounts of information can be exchanged without dedicated wiring for every signal.

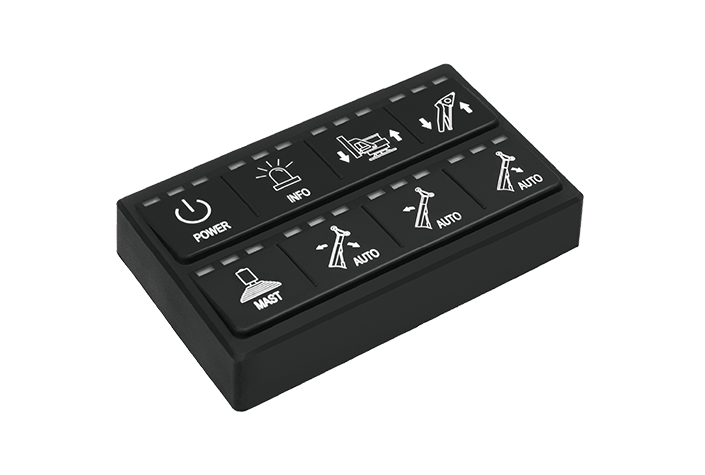

CAN keypads allow operators to control machine functions while reducing wiring complexity.
Each button press is transmitted as a CAN message rather than a dedicated electrical signal.
Remote I/O modules extend the control system closer to sensors and actuators.
Instead of routing every signal back to the main controller, signals can be collected locally and transmitted through the CAN network.
This further reduces wiring requirements and simplifies installation.
Today, CAN bus is used across a wide range of heavy-duty vehicles and machines.
CAN bus supports communication between:
Controllers
Load monitoring systems
Displays
Hydraulic controls
Modern aerial work platforms use CAN bus to connect operator controls, safety systems, sensors, and displays.
Tractors and sprayers often rely on CAN-based communication systems to integrate multiple electronic subsystems.
Large mining vehicles require reliable communication networks capable of operating in harsh environments. CAN bus provides the durability and reliability needed for these demanding applications.
CAN bus has become the standard communication technology for heavy vehicles because it solves many of the challenges associated with traditional wiring systems.
By reducing wiring harness complexity, lowering system costs, improving reliability, simplifying diagnostics, and supporting future expansion, CAN bus enables manufacturers to build smarter and more efficient machines.
For OEMs developing modern construction, agricultural, mining, or municipal equipment, CAN bus is more than a communication protocol. It is a foundation for scalable vehicle architecture and intelligent machine control.
CAN bus allows multiple electronic devices to communicate through a shared network, reducing wiring complexity and improving reliability.
Yes. CAN bus significantly reduces the amount of wiring required by allowing devices to exchange data over a common communication network.
SAE J1939 is a communication protocol based on CAN bus that is widely used in heavy-duty vehicles and off-highway equipment.
Yes. CAN bus allows controllers and ECUs to share diagnostic information, making troubleshooting and maintenance easier.
Common CAN bus devices include controllers, displays, keypads, sensors, engine ECUs, joysticks, telematics units, and remote I/O modules.
