Construction machinery does not operate in controlled environments.
Excavators, loaders, and other off-highway machines are exposed to:
Dust, mud, and water spray
High vibration and mechanical shock
Frequent washdowns
Long working hours in outdoor conditions
In this context, using standard cabinet-mounted I/O is often not enough.
IP67 CAN bus I/O modules are not just about protection.
They are about how the entire control system is structured, installed, and maintained in real working conditions.
IP67 means the device is:
Fully protected against dust
Protected against temporary water immersion
But in construction machinery, this is only the baseline.
The real implication is:
???? The I/O module can be mounted directly on the machine, not just inside a control box.
This changes everything in system design.
In a centralized architecture:
All signals are routed back to a control cabinet
Long wiring harnesses connect sensors and actuators
Connectors are exposed along the entire cable path
This creates multiple issues:
Cables are often the first components to fail:
Abrasion
Vibration fatigue
Loose connectors
When a fault occurs:
The issue may be anywhere along the cable
Technicians must trace long wiring paths
More cables
More routing work
Higher risk of wiring mistakes
In construction machinery, these problems are amplified.
CAN bus changes the structure of the system.
Instead of bringing all signals to one place:
???? I/O modules are distributed across the machine.
Each module:
Connects locally to sensors and actuators
Communicates with the controller via CAN bus
This reduces the need for long wiring runs.
Distributed I/O only works if modules can survive outside the cabinet.
That is where IP67 becomes critical.
An IP67 CAN I/O module can be:
Installed near hydraulic systems
Mounted close to sensors and valves
Exposed to dirt, moisture, and vibration
Without this level of protection, distributed architecture is not practical.
When I/O modules are installed close to the field devices:
Less exposure to damage
Lower signal loss risk
Reduced failure probability
Cleaner system design
Easier assembly
This directly improves reliability.
In a distributed system:
Faults are localized
Modules can be replaced individually
No need to trace long harnesses
For field service teams, this means:
Faster diagnosis
Shorter downtime
Lower maintenance cost
In real projects, this is often more important than the initial hardware cost.

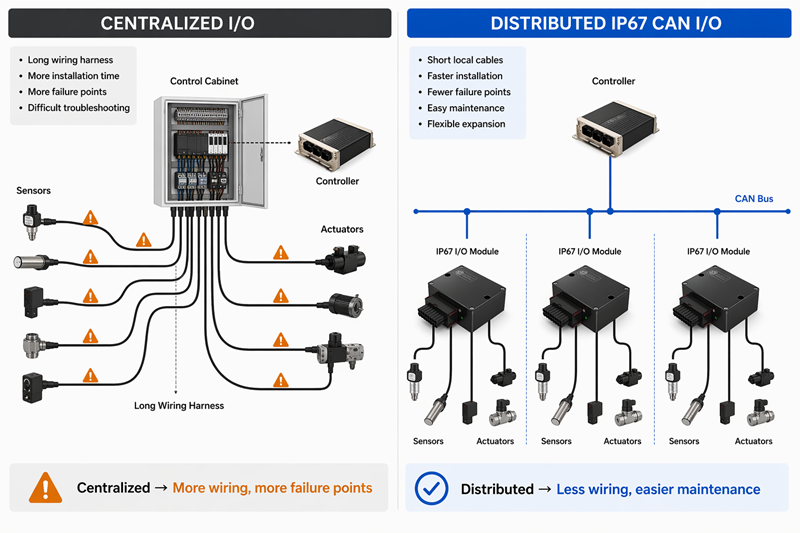

| Aspect | Centralized I/O | IP67 CAN Distributed I/O |
|---|---|---|
| Wiring | Long harnesses | Short local cables |
| Installation | Complex | Modular |
| Failure points | Many | Reduced |
| Maintenance | Time-consuming | Fast replacement |
| Expansion | Difficult | Flexible |
The difference is not just technical — it directly affects machine uptime.
More channels do not solve system-level problems.
If the module cannot be placed near field devices, wiring problems remain.
IP67 is not just a spec — it enables a different architecture.
In many cases, cables fail before electronics.
Instead of asking:
???? “How many inputs and outputs do I need?”
Ask:
Where should the I/O module be installed?
How long are the cable runs?
What are the main failure risks in this machine?
How fast can the system be repaired in the field?
These questions lead to better system design decisions.
IP67 CAN bus I/O modules are essential in construction machinery not just because they are protected.
They are essential because they enable:
Distributed system architecture
Reduced wiring complexity
Improved reliability
Faster maintenance
In harsh environments, system design matters more than individual components.
And IP67 CAN I/O modules are a key part of that design.
If you are designing control systems for construction machinery, choosing the right I/O architecture is critical to long-term reliability and serviceability.

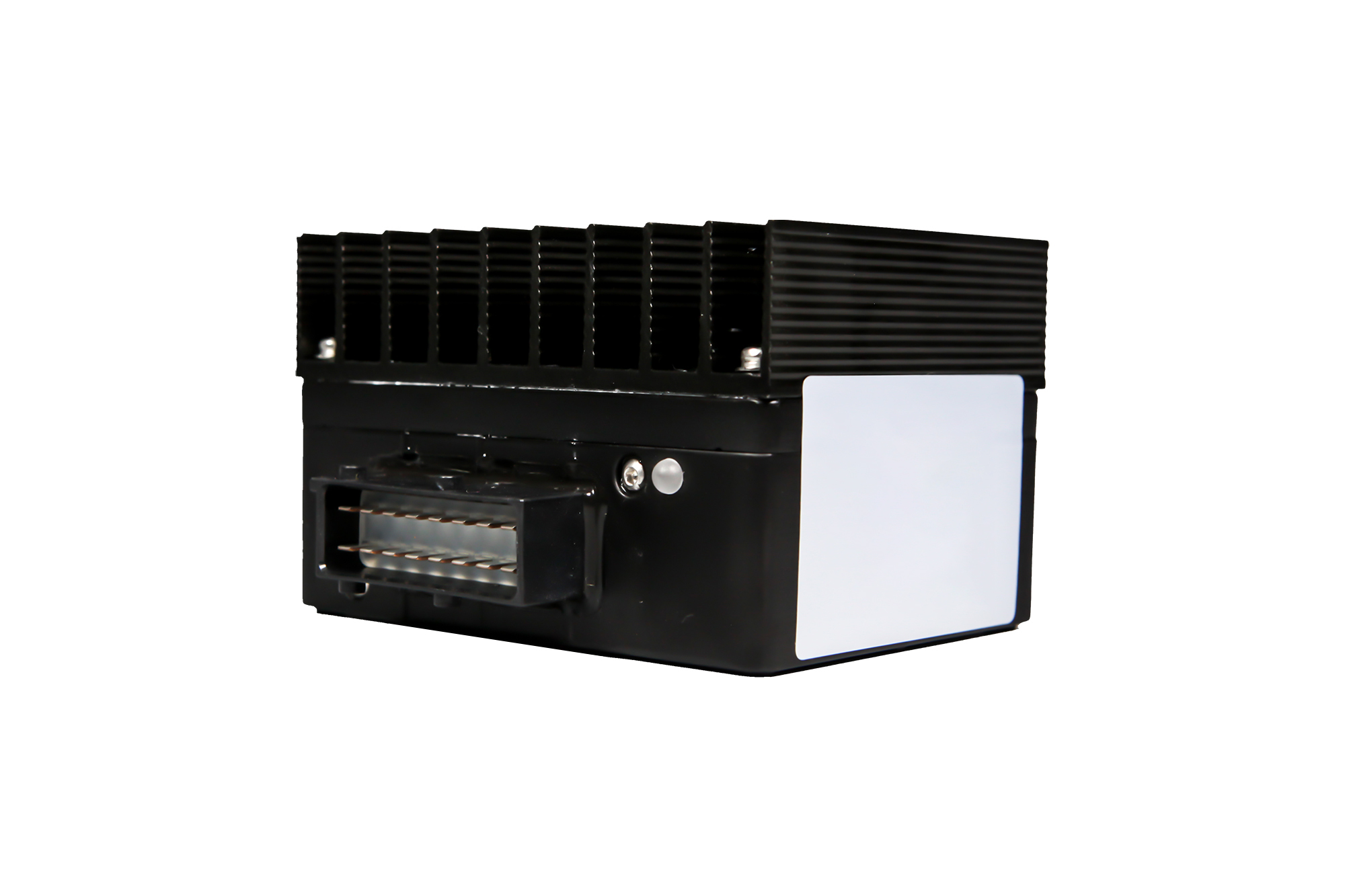

SonnePower provides IP67 CAN bus I/O modules designed for mobile machinery, supporting distributed installation, flexible configuration, and robust operation in harsh environments.
???? Contact us to discuss your application or request technical details.
