Modern mobile machinery is becoming more intelligent with increasing numbers of sensors, actuators, and electronic components.
Traditional centralized control systems connect all devices directly to the main controller. However, for large machines, this can result in complex wiring, higher costs, and difficult maintenance.
Remote I/O modules provide a flexible solution by collecting signals closer to machine components and communicating with the main controller through networks such as CAN Bus.
This article explains how remote I/O modules improve mobile machinery control systems and why they are important for modern machine design.

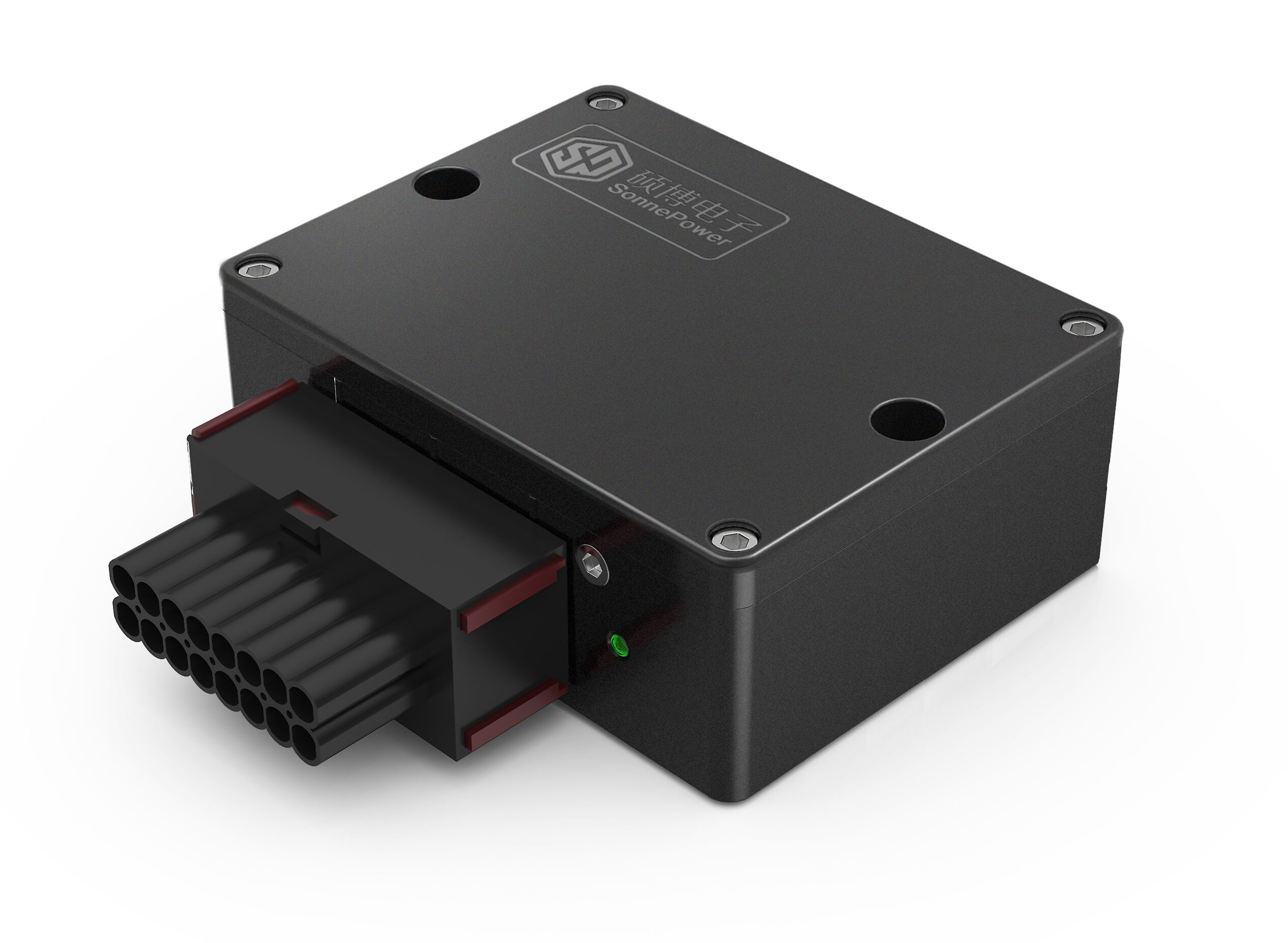

A Remote I/O module is an electronic device that expands the input and output capabilities of a machine control system.
Instead of connecting every sensor and actuator directly to the main controller, remote I/O modules process signals locally and transmit data through communication networks.
A typical architecture:
Sensors & Actuators
↓
Remote I/O Module
↓
CAN Bus / Ethernet
↓
Main Controller
↓
HMI Display
Remote I/O modules act as a bridge between field devices and the machine control system.
Mobile machinery often includes many distributed components, such as:
Hydraulic valves
Pressure sensors
Temperature sensors
Position sensors
Safety switches
Motor controllers
In large equipment, these components may be far away from the main controller.
A centralized wiring system can cause:
Long cable harnesses
Complex installation
Increased machine weight
Difficult troubleshooting
Remote I/O modules simplify the electrical architecture by placing signal processing closer to the devices.
Traditional architecture:
Sensors
↓
Long Wiring Harness
↓
Main Controller
↓
Actuators
Advantages:
Simple structure
Suitable for small machines
Limitations:
More wiring
Higher installation complexity
Modern architecture:
Sensors
↓
Remote I/O
↓
CAN Bus
↓
Main Controller
Advantages:
Reduced wiring
Easier system expansion
Better maintenance
More flexible machine design
Remote I/O modules collect information from different sensors, including:
Analog signals
Digital signals
Temperature data
Pressure feedback
Position information
The data is processed and transmitted to the main controller.
Remote I/O modules can also control machine components, such as:
Hydraulic valves
Relays
Solenoids
Lighting systems
This enables distributed control of machine functions.
Remote I/O modules commonly support:
CAN Bus
CANopen
J1939
Ethernet
CAN-based communication is widely used in mobile machinery because of its reliability and real-time performance.
Remote I/O modules reduce cable length and simplify machine wiring.
Benefits include:
Lower installation costs
Reduced system weight
Easier production
Different machines require different numbers of inputs and outputs.
Remote I/O modules allow OEMs to easily expand control systems by adding additional modules.
This helps manufacturers develop multiple machine models using the same control platform.
Modern remote I/O modules support diagnostic functions, allowing engineers to monitor:
Input/output status
Communication errors
System faults
This helps reduce maintenance time and improve machine reliability.
Remote I/O modules are used in:
Excavators
Wheel loaders
Cranes
Applications include:
Hydraulic control
Sensor monitoring
Safety functions
Examples:
Tractors
Harvesters
Balers
Applications include:
Implement control
Automated functions
Sensor integration
Electric machines require more electronic systems, including:
Battery monitoring
Motor control
Thermal management
Remote I/O modules help integrate these distributed systems efficiently.
OEM manufacturers should consider:
Including:
IP protection rating
Temperature range
Vibration resistance
Including:
CANopen
J1939
CAN Bus
Ethernet
Including:
Digital inputs
Analog inputs
PWM outputs
Channel requirements
Remote I/O modules are becoming an important part of modern mobile machinery control systems.
By distributing signal processing closer to machine components, they reduce wiring complexity, improve scalability, and enhance system reliability.
For OEM manufacturers developing construction equipment, agricultural machinery, and industrial vehicles, remote I/O modules provide a flexible solution for building smarter and more efficient electronic architectures.
SonnePower provides electronic control solutions including:
Remote I/O modules
CAN communication solutions
Customized control systems
Our solutions help OEM manufacturers develop reliable and scalable control architectures for next-generation mobile machinery.
