Electronic control systems have become a critical part of modern mobile machinery.
Construction equipment, agricultural machines, mining vehicles, and industrial vehicles rely on controllers, HMI displays, sensors, actuators,io module,keypads and communication networks to perform complex operations.
However, developing a reliable control system requires more than hardware design and software development. Comprehensive testing and validation are essential to ensure that the system can operate safely and reliably under real-world conditions.
This article explains the key testing and validation processes for electronic control systems used in mobile machinery and why they are important for OEM manufacturers.
Mobile machinery operates in demanding environments, including:
Strong vibration
Wide temperature changes
Dust and moisture exposure
Electrical interference
Heavy working loads
A control system failure can lead to:
Machine downtime
Reduced productivity
Safety risks
Increased maintenance costs
Therefore, OEM manufacturers need to verify that electronic systems can maintain stable performance throughout the machine lifecycle.
Hardware validation is the first step in ensuring system reliability.
A mobile machinery control system usually includes:

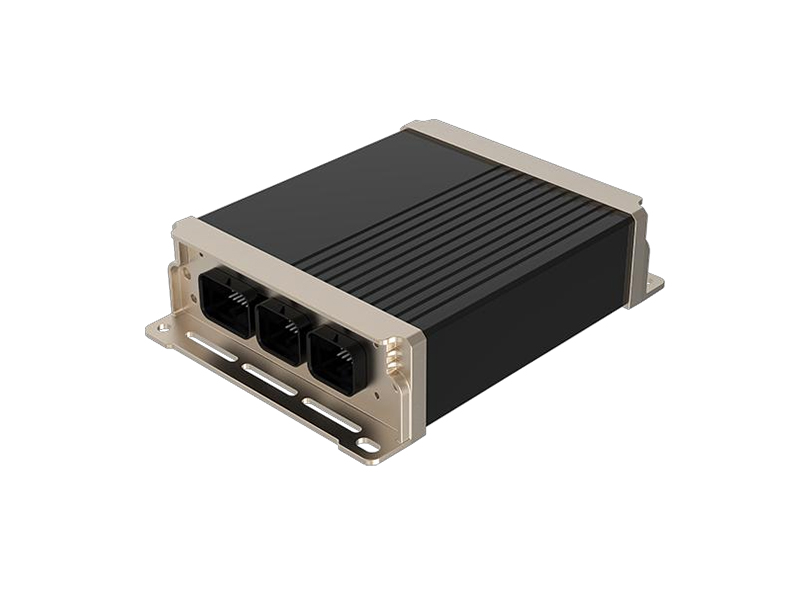

Mobile controllers
HMI displays
Remote I/O modules
Sensors
Wiring harnesses
Communication interfaces
During hardware testing, engineers verify:
Testing includes:
Supply voltage stability
Current consumption
Input/output functionality
Protection performance
This ensures that electronic components operate correctly under different power conditions.
Mobile machinery often works in harsh environments.
Hardware testing may include:
Temperature testing
Vibration testing
Shock testing
Waterproof testing
These tests verify that components can withstand real operating conditions.
Modern mobile machinery depends on reliable communication between electronic components.
Common communication technologies include:
CAN Bus
CANopen
J1939
Ethernet
Communication testing verifies that different devices can exchange information correctly.
Engineers check:
Message transmission
Communication stability
Error handling
Network loading
Typical tests include:
Checking CAN signals
Monitoring communication errors
Testing multiple CAN nodes
Reliable CAN communication is essential for distributed control architectures.
Different suppliers may provide different electronic components.
For example:
Engine controller
Hydraulic controller
Display system
Remote I/O module
Protocol testing ensures that all devices communicate correctly within the machine network.
Inputs and outputs are directly connected to machine functions.
Testing verifies that the controller can correctly process signals and control actuators.
Common inputs include:
Temperature sensors
Pressure sensors
Position sensors
Switch signals
Engineers verify:
Signal accuracy
Response time
Fault detection capability
Common outputs include:
Hydraulic valves
Motors
Relays
Proportional controls
Testing ensures:
Correct output signals
Stable operation
Proper current control
For mobile machinery, accurate I/O control is essential for machine performance.
Modern controllers are not only hardware devices. Software plays an increasingly important role in machine operation.
Software testing includes:
Engineers test:
Machine functions
Operating sequences
Safety logic
Error handling
A reliable control system should identify abnormal conditions.
Testing includes:
Fault detection
Error reporting
Diagnostic messages
Recovery functions
Effective diagnostics help reduce maintenance time and improve machine availability.

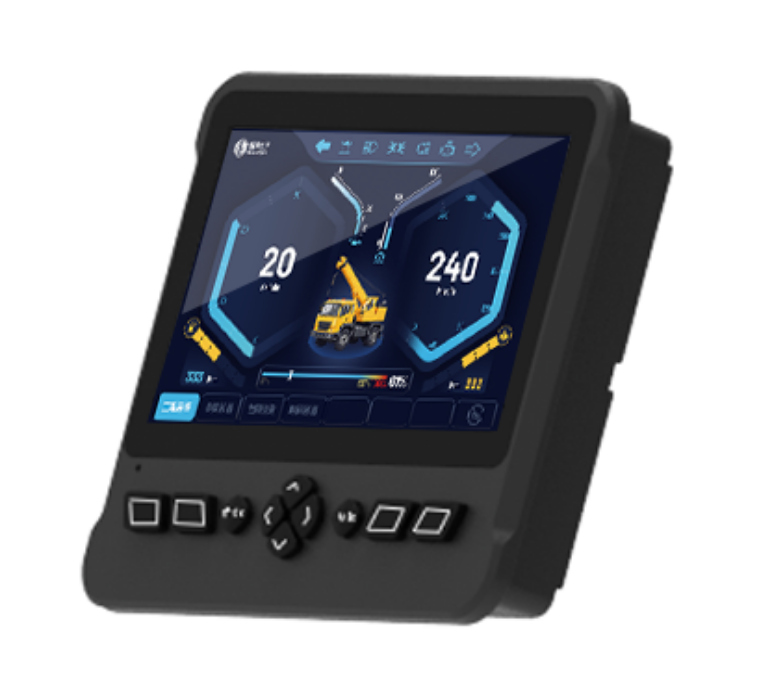

HMI displays provide the interface between operators and machines.
Testing should verify:
Including:
Screen readability
Touch response
Information layout
Engineers test:
Parameter settings
Machine control commands
Warning messages
System status display
A well-designed HMI improves operator efficiency and reduces operation errors.
Electromagnetic compatibility (EMC) is an important consideration for mobile machinery.
Machines contain many potential sources of interference:
Electric motors
Hydraulic valves
Power electronics
Relays
EMC testing evaluates whether the control system can:
Resist external interference
Avoid disturbing other devices
Maintain stable communication
Important design considerations include:
Shielding
Grounding
Filtering
Communication protection
Laboratory testing is important, but real machine testing is also necessary.
Field tests evaluate system performance under actual working conditions.
Examples:
Testing may include:
Hydraulic operations
Heavy-load working cycles
Long-term operation
Testing may include:
Outdoor operation
Seasonal temperature changes
Continuous working conditions
Testing may include:
Battery performance
Motor control
Energy management
Real-world testing helps identify issues that may not appear during laboratory validation.
A complete validation process usually follows:
Hardware Testing
↓
Communication Testing
↓
Software Testing
↓
System Integration Testing
↓
Field Validation
↓
Mass Production
This process helps OEM manufacturers identify problems early and improve product reliability.
Testing reduces the risk of unexpected failures and improves equipment availability.
A validated system provides better diagnostic information, helping engineers solve problems more efficiently.
Finding problems during the design stage is much cheaper than fixing issues after mass production.
Reliable machines improve customer satisfaction and strengthen OEM competitiveness.
Testing and validation are essential steps in developing reliable electronic control systems for mobile machinery.
By verifying hardware performance, communication reliability, software functions, HMI operation, EMC resistance, and real-world performance, OEM manufacturers can build safer and more efficient machines.
For modern construction equipment, agricultural machinery, mining vehicles, and industrial vehicles, a comprehensive validation process provides the foundation for reliable and intelligent machine control systems.
SonnePower provides electronic control solutions for mobile machinery, including:
Mobile controllers
HMI displays
Remote I/O modules
CAN communication solutions
Customized electronic control systems
With engineering experience in mobile machinery applications, SonnePower helps OEM manufacturers develop reliable, scalable, and future-ready control architectures.
