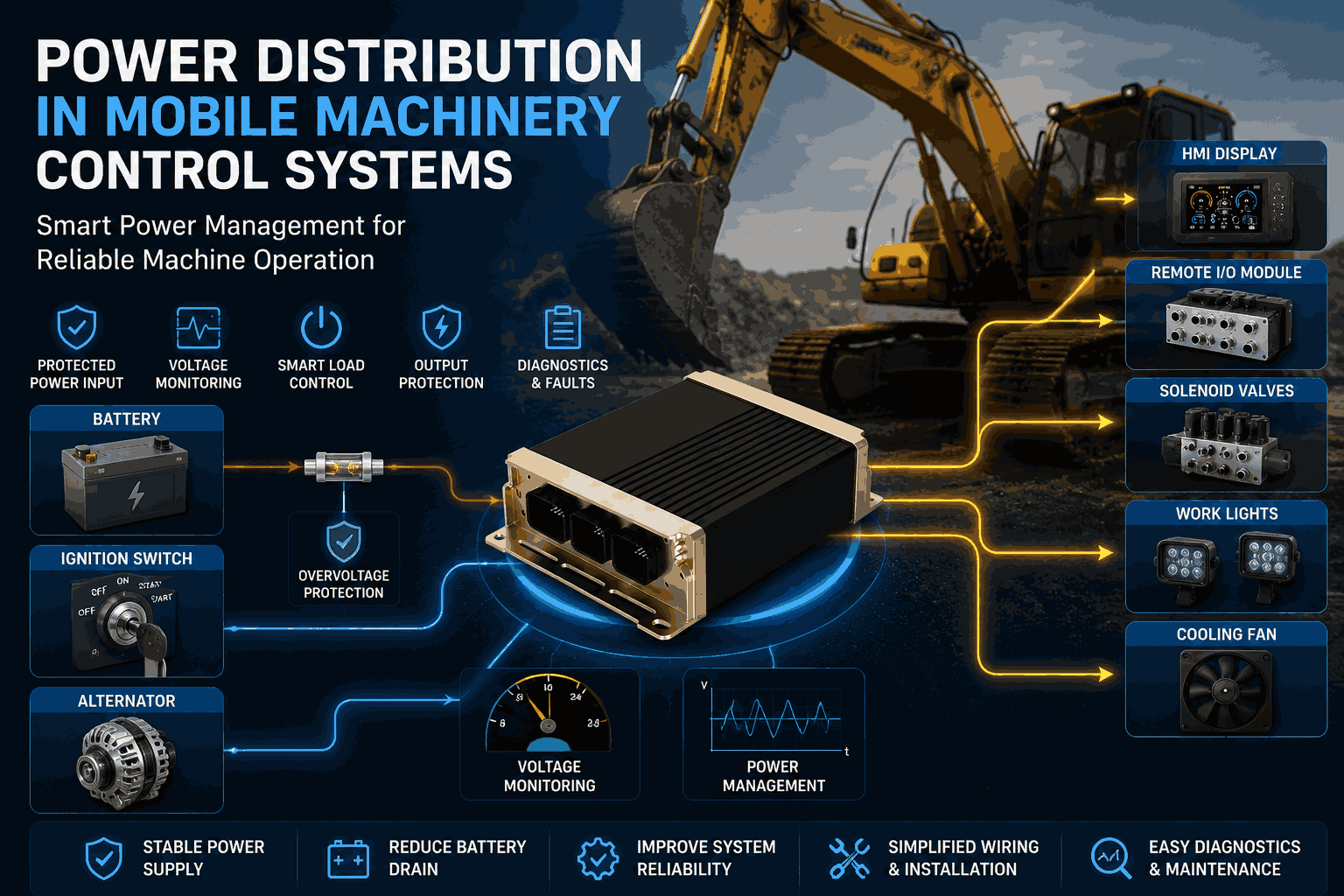

Modern mobile machinery depends on a stable and well-designed electrical power system.
Construction equipment, agricultural machinery, mining vehicles, cranes, and industrial vehicles often use 12 V or 24 V electrical architectures to power controllers, HMI displays, sensors, valves, relays, lighting, and other electronic devices.
As more electronic functions are added, simply connecting every device directly to the battery is no longer enough.
Mobile controllers play an important role in coordinating power-related functions, monitoring supply conditions, controlling loads, and protecting the machine when abnormal electrical conditions occur.
This article explains how mobile machinery controllers participate in power distribution and why power management matters for reliable machine operation.
A typical mobile machine may contain many electrical loads, including:
Mobile controllers
HMI displays
Remote I/O modules
Sensors
Solenoid valves
Relays
Lights
Cooling fans
Telematics devices
These loads do not always need to be powered at the same time.
Some devices should operate only when the ignition is active, while others may need continuous battery power.
A poorly designed power architecture can result in:
Battery drain
Unexpected resets
Overloaded circuits
Wiring complexity
Difficult troubleshooting
A structured power distribution strategy helps avoid these problems.
Mobile machinery commonly uses different power categories.
Battery power is available directly from the machine battery.
It may be used for systems that need continuous power, such as:
Memory circuits
Telematics devices
Certain monitoring systems
Ignition power becomes active when the operator switches on the machine.
The controller can use the ignition signal to determine when the machine should enter normal operating mode.
A simplified process is:
English
Battery
↓
Ignition Switch
↓
Mobile Controller
↓
Machine Systems Enabled
Some devices can be controlled by the controller through outputs, relays, or dedicated power modules.
Examples include:
Cooling fans
Work lights
Solenoid valves
Auxiliary equipment
This allows the machine to activate electrical loads only when required.
A mobile controller can use digital outputs or PWM outputs to manage different electrical devices.
For example:
Sensor / Operator Command
↓
Mobile Controller
↓
Output Logic
↓
Relay / Valve / Fan / Lamp
The controller determines when the output should be activated based on:
Operating mode
Sensor conditions
Safety logic
Operator commands
This creates a more intelligent power distribution system than simple manual switching.
High-side outputs are commonly used in vehicle and mobile machinery electronics.
A high-side output switches the positive supply voltage to the load.
Typical applications include:
Solenoid valves
Relays
Lamps
Buzzers
A simplified architecture:
Battery +
↓
Controller High-Side Output
↓
Load
↓
Ground
High-side switching is widely used because many mobile machinery loads share a common ground.
Low-side outputs switch the ground connection instead of the positive supply.
A typical structure is:
Battery +
↓
Load
↓
Controller Low-Side Output
↓
Ground
Depending on the machine architecture and connected device, OEM engineers may use high-side, low-side, or dedicated driver circuits.
The controller output type must match the electrical requirements of the load.
Some electronic devices should not all start at exactly the same time.
For example, when the operator turns on the machine, the system may follow a sequence such as:
Ignition ON
↓
Main Controller Starts
↓
Communication Network Initializes
↓
HMI Starts
↓
Remote I/O Enabled
↓
Hydraulic Functions Enabled
This process is known as power sequencing.
Correct sequencing can help:
Reduce startup current
Prevent communication faults
Ensure devices initialize correctly
Improve system stability
Mobile controllers can monitor supply voltage and respond to abnormal conditions.
Important conditions include:
Undervoltage
Overvoltage
Battery voltage drop
Charging system problems
For example, if battery voltage becomes too low, the controller may:
Generate a warning
Disable non-essential loads
Limit certain machine functions
Record a diagnostic fault
This helps prevent unstable operation.
Not all electrical loads have the same importance.
For example:
Critical loads may include:
Main controller
Safety systems
Essential sensors
Non-critical loads may include:
Auxiliary lighting
Accessories
Convenience functions
If the electrical system is under stress, the controller can be programmed to disable lower-priority loads first.
This concept is especially useful in electric or battery-powered mobile machinery.
Electric mobile machines require more advanced power coordination.
They may include:
High-voltage battery
DC/DC converter
Low-voltage battery
Motor controller
HMI
Mobile controller
Cooling systems
The mobile controller may coordinate low-voltage systems while communicating with:
Battery Management System (BMS)
Motor controller
Thermal management system
For example:
BMS
↓
CAN Bus
↓
Mobile Controller
↓
Cooling Fan / Pump / HMI / Auxiliary Loads
The controller can adjust machine loads according to battery condition and system status.
Mobile machinery outputs often drive inductive loads such as:
Hydraulic solenoids
Relays
Motors
These loads can generate voltage spikes when switched.
A robust controller should include suitable output protection against:
Short circuits
Overcurrent
Voltage transients
Thermal overload
Diagnostic capability can also help identify abnormal load conditions.
A wheel loader may use the main controller to coordinate several electrical systems.
For example:
The controller starts and initializes communication.
The display receives power and begins showing machine status.
Once safety conditions are satisfied, hydraulic valve outputs are enabled.
If temperature rises, the controller activates a cooling fan.
The operator activates lighting through a keypad or HMI command.
This creates a coordinated electrical architecture where the controller manages both logic and power-related functions.
A well-designed power distribution system can provide several advantages.
Loads can be switched off when they are not needed.
Voltage monitoring and output protection help prevent unstable operation.
Controllers and distributed I/O modules can replace some separate relays and switching devices.
Fault monitoring helps technicians identify power-related problems faster.
Power logic can be adjusted through software for different machine models.
When designing mobile machinery power distribution, engineers should evaluate:
12 V or 24 V architecture
Maximum load current
Output types
Relay requirements
High-side or low-side switching
Voltage monitoring
Startup sequence
Overcurrent protection
Load dump protection
Grounding strategy
Power distribution should be designed together with:
Controller I/O
CAN communication
Wiring harnesses
EMC protection
Machine safety requirements
Power distribution is an important part of modern mobile machinery control system design.
Mobile controllers can do more than execute machine logic. They can also monitor supply voltage, control electrical loads, manage startup sequences, and protect connected devices.
By combining intelligent switching, voltage monitoring, output protection, and communication with other electronic systems, OEM manufacturers can build more reliable and efficient machines.
For construction equipment, agricultural machinery, mining vehicles, and electric mobile machines, a well-designed power architecture provides a strong foundation for stable electronic control.
