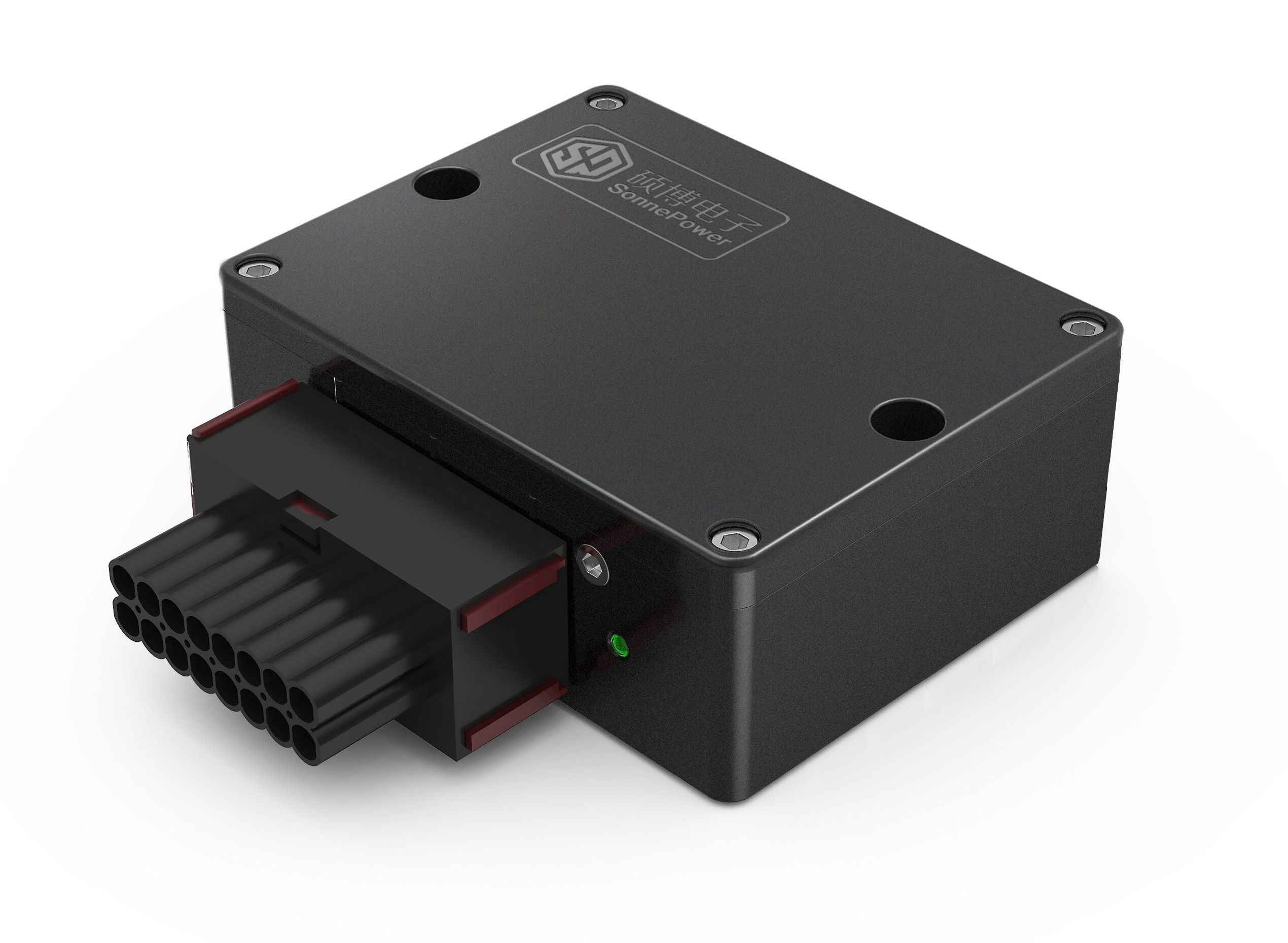

Mobile machinery operates in harsh environments where electrical wiring and connected loads are exposed to vibration, moisture, dust, temperature changes, and mechanical stress.
As a result, electrical faults such as open circuits and short circuits can occur in:
Solenoid valves
Relays
Hydraulic valve coils
Motors
Wiring harnesses
Connectors
Modern mobile controllers can use output diagnostics to detect certain electrical abnormalities and help the control system respond before they cause additional problems.
This article explains how open-circuit and short-circuit faults occur, how controller diagnostics can identify them, and how fault information can be integrated with CAN and HMI systems.
An open circuit occurs when the electrical path between the controller and the load is interrupted.
For example:
Controller Output
↓
Wire
X ← Broken connection
↓
Solenoid Valve
Possible causes include:
Broken wires
Loose connectors
Damaged terminals
Corrosion
Disconnected loads
Failed solenoid coils
When the circuit is open, current cannot flow normally through the load.
If the controller hardware supports output-current or load diagnostics, it may detect that the expected electrical load is missing.
A short circuit occurs when current follows an unintended electrical path.
Two common conditions are:
The output becomes electrically connected to ground.
Controller Output
↓
Wire ─────→ Ground
↓
Load
The output or signal becomes connected to the positive supply voltage.
Battery +
│
└────→ Output / Signal Wire
Depending on the circuit and controller design, these conditions may cause abnormal voltage or excessive current.
Without suitable protection, severe electrical faults can damage wiring or electronic components.
The exact diagnostic method depends on the controller's output hardware.
Controllers with diagnostic-capable outputs may monitor parameters such as:
Output current
Output voltage
Load condition
Driver status
Overcurrent condition
The controller can compare the measured electrical state with the expected state.
For example:
Output Command = ON
↓
Expected Load Current
↓
Actual Current ≈ 0
↓
Possible Open Circuit
Another situation could be:
Output Command
↓
Abnormally High Current
↓
Possible Short Circuit
The actual thresholds and diagnostic behavior depend on the output-driver design and software configuration.
Consider a controller driving a proportional hydraulic valve.
During normal operation:
Mobile Controller
↓
PWM Output
↓
Proportional Valve
↓
Hydraulic Movement
If the valve cable becomes disconnected, the controller may command the output but detect little or no expected load current.
The system can then identify a possible open-circuit condition.
If the wiring is shorted and excessive current is detected, the controller may identify an overcurrent or short-circuit condition.
This is particularly useful because the machine operator may otherwise only notice that the hydraulic function has stopped working.
Detecting the fault is only the first step.
The control software can determine how the machine should respond.
A typical process may look like:
Electrical Fault
↓
Controller Detects Abnormal Condition
↓
Set Fault Status
↓
Protect or Disable Output
↓
Send Fault Information over CAN
↓
Display Warning on HMI
Depending on the application, the controller may:
Disable the affected output
Prevent repeated activation
Record a diagnostic fault
Send fault status over CAN
Display a warning on the HMI
Limit the affected machine function
The appropriate response depends on the machine design and the severity of the fault.
Output protection and fault diagnostics are related, but they are not exactly the same.
Output protection is intended to protect the electronic output from abnormal electrical conditions.
Fault diagnostics provides information that helps the control system identify and report the problem.
For example, an output driver may protect itself during an overcurrent condition, while the controller software records a fault and informs the HMI.
Combining both functions can improve system reliability and troubleshooting.
Electrical diagnostics become more useful when fault information is shared with other devices.
For example:
Valve / Solenoid
↓
Electrical Fault
↓
Mobile Controller
↓
CAN
↓
HMI
Instead of simply showing:
HYDRAULIC FAULT
the HMI could provide more specific information, such as:
Boom Valve Output Fault
or:
Solenoid Output — Open Circuit
This gives maintenance technicians a clearer starting point for troubleshooting.
When a controller reports an open-circuit or short-circuit condition, technicians should not immediately assume that the connected device has failed.
A practical inspection can include:
Check the controller fault information.
Inspect the wiring harness.
Check connectors and terminals.
Verify supply voltage and ground.
Measure the resistance of the connected load where appropriate.
Inspect the valve coil, relay, or solenoid.
Repair the fault and verify normal operation.
The controller identifies an abnormal electrical condition, but physical inspection is still required to determine the root cause.
A machine may contain dozens of electrical outputs controlling hydraulic valves, relays, actuators, and other loads.
Without output diagnostics, a wiring problem may simply appear as a machine function that no longer works.
Diagnostic-capable controllers can provide additional information about where the problem may be located.
This can help:
Speed up troubleshooting
Improve fault visibility
Reduce unnecessary component replacement
Protect controller outputs
Improve maintenance efficiency
Reduce machine downtime
For equipment operating in demanding environments, these capabilities can be an important part of the overall control-system design.
Open circuits and short circuits are common electrical problems in mobile machinery, especially in wiring, connectors, solenoid valves, and other external loads.
Mobile controllers with suitable diagnostic-capable output hardware can monitor electrical conditions and identify abnormalities such as missing load current or excessive current.
The controller can then combine this information with control logic, CAN communication, and HMI diagnostics to create a more complete fault-management system.
For OEM engineers, output diagnostics should therefore be considered not only as an electrical protection feature, but also as part of the machine's overall maintenance and troubleshooting strategy.
