As off-highway machines become more intelligent, OEMs face increasing pressure to integrate advanced electronics, automation, connectivity, and diagnostics into their equipment. Whether developing construction machinery, agricultural equipment, sanitation vehicles, mining machines, or material handling equipment, a reliable control system has become the foundation of machine performance.
However, designing an off-highway control system is about much more than choosing a controller. OEMs must consider system architecture, communication networks, operator interfaces, environmental conditions, maintenance requirements, and future scalability.
In this article, we explore seven common design challenges OEMs face when developing off-highway control systems and discuss practical considerations for building reliable machine architectures.

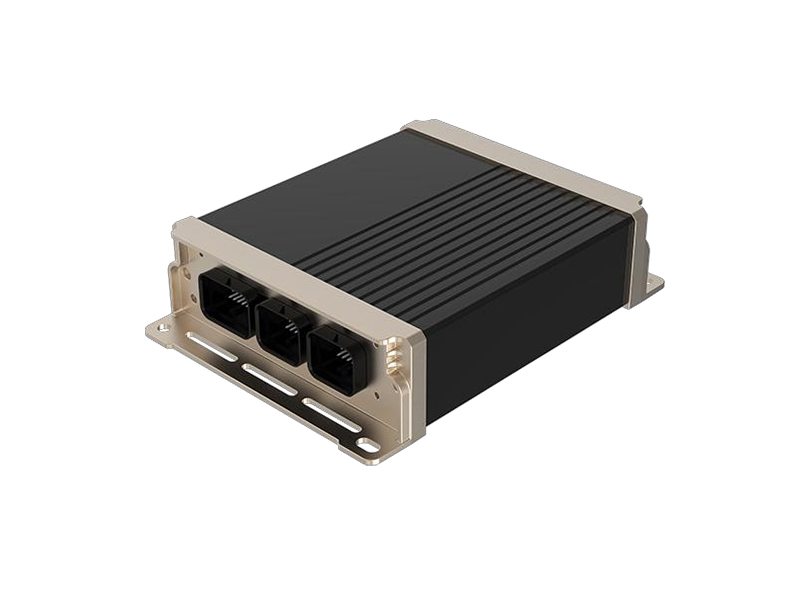

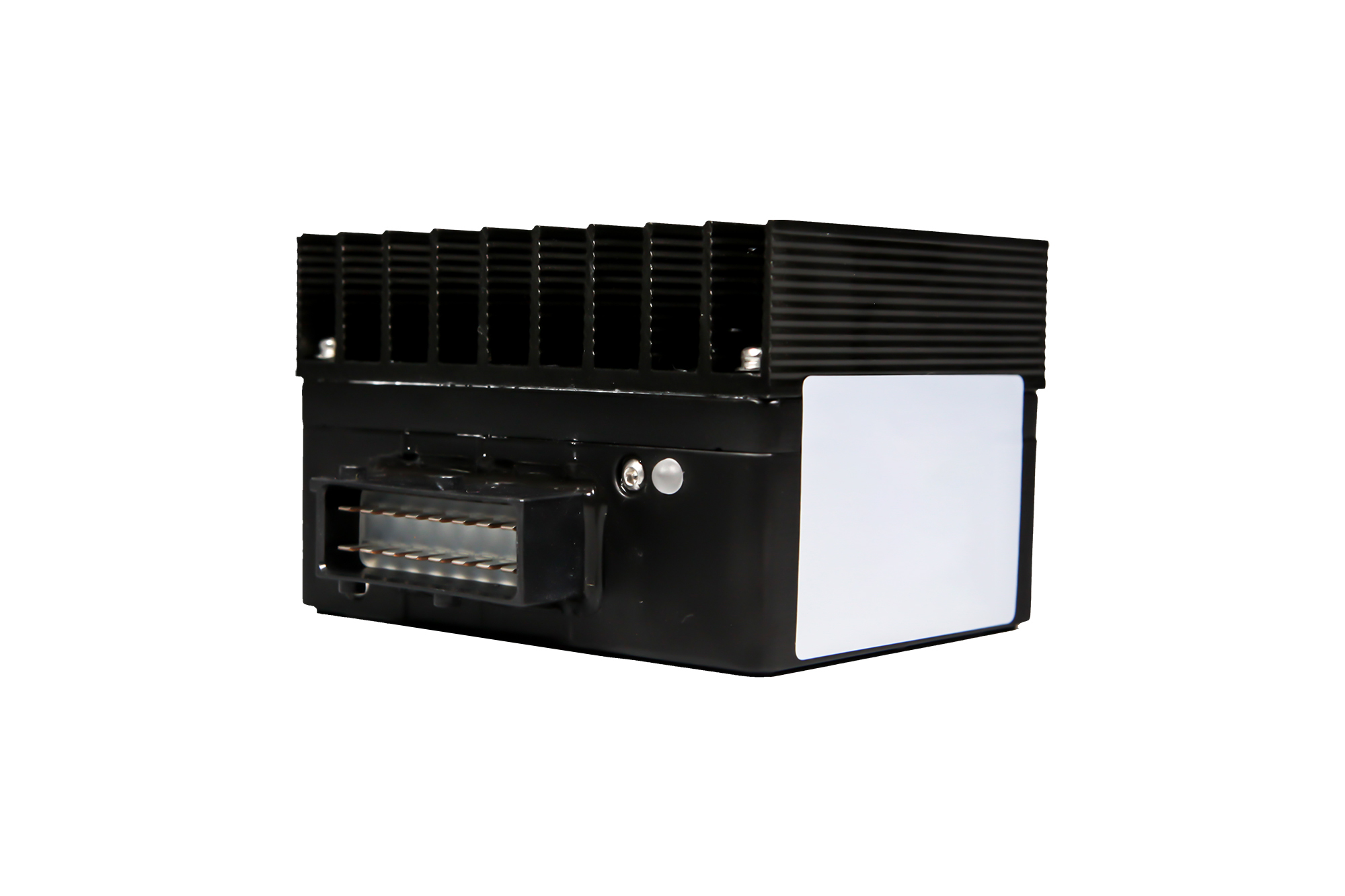

The controller is often considered the brain of the machine, but selecting the right controller architecture involves more than simply counting inputs and outputs.
Many OEMs start with a controller that meets current project requirements, only to discover later that additional functions require more I/O channels, communication interfaces, or processing capability.
A centralized architecture places most inputs and outputs directly on the main controller. While this approach can work for smaller machines, it often creates large wiring harnesses and makes future expansion difficult.
A distributed architecture uses CAN-based I/O modules located closer to sensors and actuators. This reduces wiring complexity and improves system flexibility.
When selecting a controller, OEMs should consider:
Current and future I/O requirements
CAN communication channels
PWM outputs for proportional valve control
H-Bridge outputs for motor applications
Diagnostic capabilities
Software development environment
Planning for future expansion during the design phase can help avoid expensive redesigns later.
Most modern off-highway machines rely on CAN bus communication to connect controllers, displays, engines, sensors, and distributed I/O modules.
While CAN networks are highly reliable, poor network design can lead to communication failures and difficult troubleshooting.
CANopen is commonly used for distributed control systems and intelligent devices, while SAE J1939 is widely used for engine communication and heavy-duty vehicles.
Many machines use both protocols simultaneously.
Understanding communication requirements early in the design process helps prevent integration problems later.
Frequent issues include:
Missing termination resistors
Excessive network length
Poor cable routing
Improper node addressing
Lack of network diagnostics
A well-designed CAN network improves system reliability and simplifies maintenance.
As machines become more sophisticated, wiring harnesses often become one of the most expensive and difficult components to manage.
Large machines may contain hundreds of electrical connections between controllers, sensors, displays, and hydraulic systems.
Traditional point-to-point wiring can result in:
Increased installation costs
Higher machine weight
More failure points
Difficult troubleshooting
Limited scalability
Distributed I/O modules allow signals to be collected closer to field devices.
Advantages include:
Shorter wiring runs
Easier installation
Simplified maintenance
Improved system expansion
Better diagnostics
For many OEMs, distributed I/O architecture is one of the most effective ways to improve overall machine design.
The operator interface is where humans interact with the machine. A poorly designed interface can reduce productivity, increase operator errors, and complicate troubleshooting.
Modern HMI displays provide:
Machine status information
Alarm notifications
System diagnostics
Camera integration
Configuration menus
The display should be selected based on the operating environment and application requirements.
Common display challenges include:
Poor sunlight readability
Slow startup times
Limited diagnostic functions
Complex menu structures
A well-designed HMI helps operators identify issues quickly and reduces machine downtime.
Unlike indoor industrial equipment, off-highway machines operate in some of the harshest environments imaginable.
Controllers, displays, and I/O modules must continue functioning despite constant exposure to dust, vibration, moisture, and temperature extremes.
Many OEMs specify IP67-rated electronics to protect against water and dust ingress.
However, IP ratings alone do not guarantee long-term reliability.
Control system components should be designed to withstand:
Continuous vibration
Shock loads
Wide operating temperatures
Electrical noise
Voltage fluctuations
Environmental testing is critical for ensuring dependable machine operation.
Machine downtime is expensive. When equipment stops working, technicians must quickly identify and resolve the problem.
A control system with poor diagnostics can significantly increase maintenance costs.
Modern control systems can monitor:
Sensor failures
CAN communication errors
Output overload conditions
Power supply issues
Hydraulic system faults
Providing clear fault information helps technicians locate problems faster.
Good diagnostics allow OEMs to:
Reduce service time
Improve machine availability
Lower maintenance costs
Increase customer satisfaction
Diagnostic capabilities should be considered during system design rather than added as an afterthought.
Machine requirements rarely remain unchanged.
Customers may request additional functions, new attachments, improved automation, or enhanced connectivity.
A control system designed only for today's requirements can become a limitation tomorrow.
Future upgrades may include:
Additional hydraulic functions
New sensors
Camera systems
Telematics devices
Safety systems
OEMs should consider:
Available CAN channels
Software flexibility
Expandable I/O architecture
Remote diagnostics capabilities
Designing with scalability in mind helps extend the useful life of the machine platform.
Before selecting controllers, displays, and I/O modules, OEMs should ask the following questions:
| Component | Key Question |
|---|---|
| Controller | Does it provide enough I/O and CAN channels for future expansion? |
| HMI Display | Is it readable in direct sunlight and capable of displaying diagnostics? |
| I/O Module | Can it reduce wiring complexity and support future functions? |
| Communication | Will the system use CANopen, SAE J1939, or both? |
| Environment | Can the hardware withstand vibration, moisture, and temperature extremes? |
| Diagnostics | Does the system provide clear fault monitoring and troubleshooting tools? |
| Expansion | Can new functions be added without redesigning the entire architecture? |
