Modern sanitation vehicles often operate in crowded urban areas with pedestrians, bicycles, parked vehicles, and limited visibility.

Because of this, many municipal vehicles now use multi-camera systems connected to in-cabHMI displays.

These systems may include:

• Rear cameras

• Side cameras

• Front cameras

• Tool cameras

The goal is not simply adding more cameras, but improving operator visibility without creating screen clutter or distraction.

Why Sanitation Vehicles Need Multiple Cameras

A simple backup camera is often not enough for sanitation vehicles.

Street sweepers and garbage trucks must monitor:

• Rear working equipment

• Hydraulic systems

• Blind spots

• Side curb areas

• Night operations

For example:

• A rear camera helps during reversing

• A side camera improves curb visibility

• A tool camera monitors brushes or compactors

Multi-camera systems help operators work more safely and efficiently.

Common Camera Types in Sanitation Vehicles

Rear Cameras

Used during reversing and rear loading operations.

Side Cameras

Help reduce blind spots during turning and curb sweeping.

Front Cameras

Improve visibility in narrow streets and crowded urban environments.

Tool Cameras

Monitor working equipment such as:

• Brushes

• Hydraulic arms

• Rear compactors

AHD vs CVBS Cameras

The two most common camera formats are:

• AHD

• CVBS

CVBS Cameras

Advantages:

• Lower cost

• Easier retrofit

Disadvantages:

• Lower image quality

AHD Cameras

Advantages:

• Higher resolution

• Better low-light visibility

• Clearer image detail

For modern sanitation vehicles, AHD cameras are becoming increasingly common.

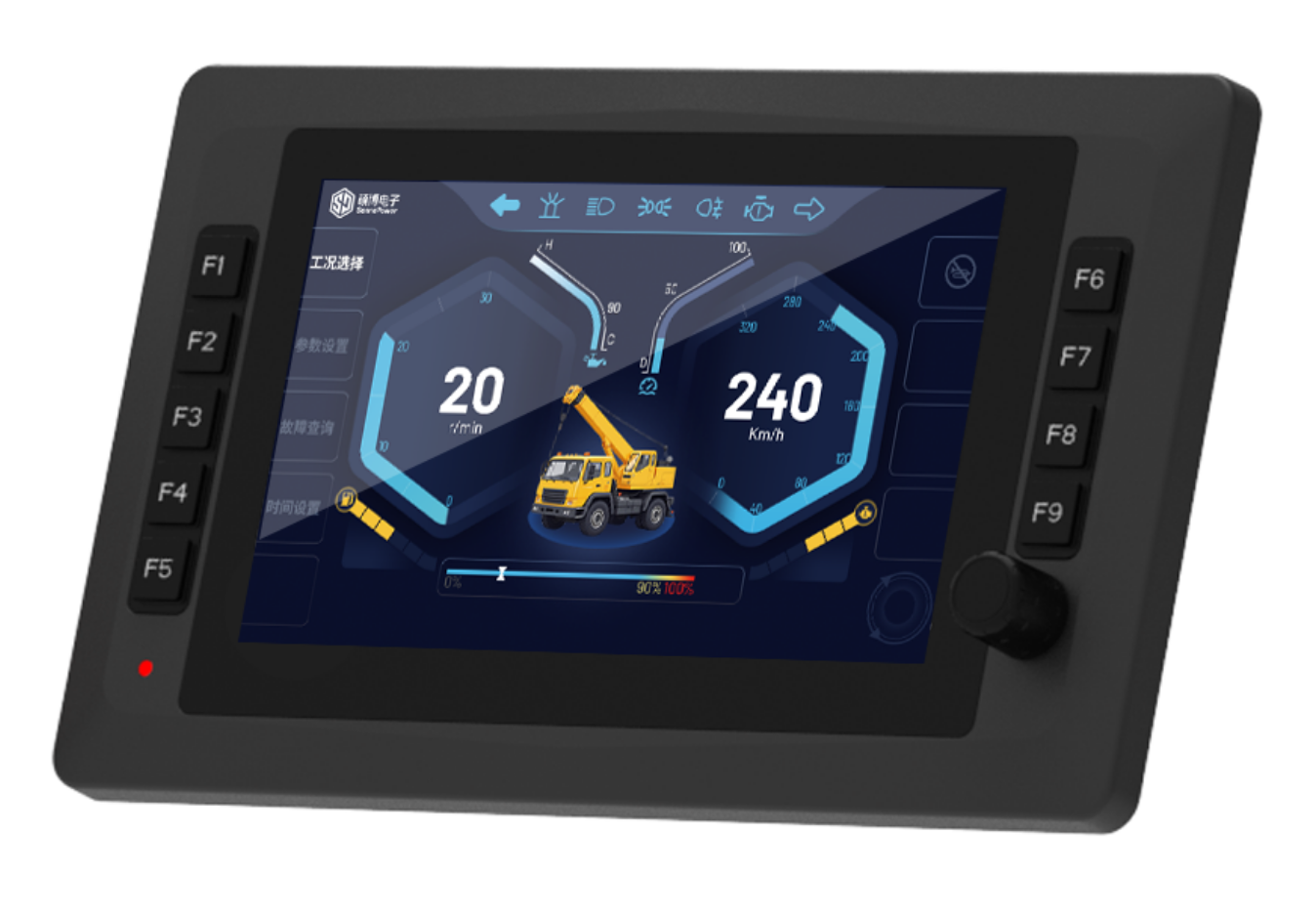

How HMI Displays Handle Multiple Camera Inputs

Modern HMI displays can support multiple viewing modes.

Single View

Shows one camera at full screen.

Best for reversing operations.

Split View

Shows two cameras simultaneously.

Useful for combining rear and side visibility.

Quad View

Displays four cameras at the same time.

Although quad view increases visibility, too many simultaneous views can distract operators.

CAN Bus Trigger Logic for Camera Switching

Many sanitation vehicles use CAN Bus communication to automatically switch camera views.

For example:

• Reverse gear → rear camera

• Sweeping mode → tool camera

• Turning → side camera

This reduces the need for manual camera selection.

Good trigger logic helps operators focus on the correct view at the correct moment.

Common Camera Integration Mistakes

Too Many Views on Screen

Permanent quad-view layouts may create unnecessary distraction.

Poor Camera Placement

Incorrect camera angles can still leave blind spots.

Ignoring Night Visibility

Sanitation vehicles often work at night or in rainy conditions.

Low-light performance is important.

Incorrect Trigger Logic

Frequent or delayed camera switching can confuse operators.

Why Multi-camera Systems Are Becoming Standard

Modern sanitation vehicles require better visibility, safer operation, and improved operator awareness.

When combined with:

• Rugged HMI displays

• AHD cameras

• CAN Bus communication

• Intelligent trigger logic

multi-camera systems can significantly improve safety and operational efficiency.

The key is not simply adding more cameras, but integrating them into a smarter operator workflow.

FAQ

What is a multi-camera system?

A multi-camera system uses multiple cameras connected to a vehicle display to improve visibility around the machine.

What is the difference between AHD and CVBS?

AHD provides higher image quality, while CVBS is a lower-cost analog format commonly used in retrofit systems.

Can CAN Bus switch cameras automatically?

Yes. CAN Bus can automatically trigger different camera views based on vehicle status and operating conditions.

Is quad-view always better?

Not always. Too many simultaneous views can increase operator distraction and reduce visibility clarity.
