Mobile machinery electrical systems are exposed to much harsher power conditions than typical indoor industrial equipment.
Construction machines, agricultural equipment, mining vehicles, and special-purpose vehicles often use 12 V or 24 V electrical systems connected to batteries and alternators. During operation, these systems may experience voltage spikes, reverse polarity, cranking voltage drops, and other electrical disturbances.
One of the most important transient events is known as load dump.
If electronic devices are not properly protected, a load dump event can damage controllers, HMI displays, remote I/O modules, sensors, and communication devices.
This article explains what load dump is, why it matters in mobile machinery, and how robust electronic control systems can reduce the risk of electrical damage.

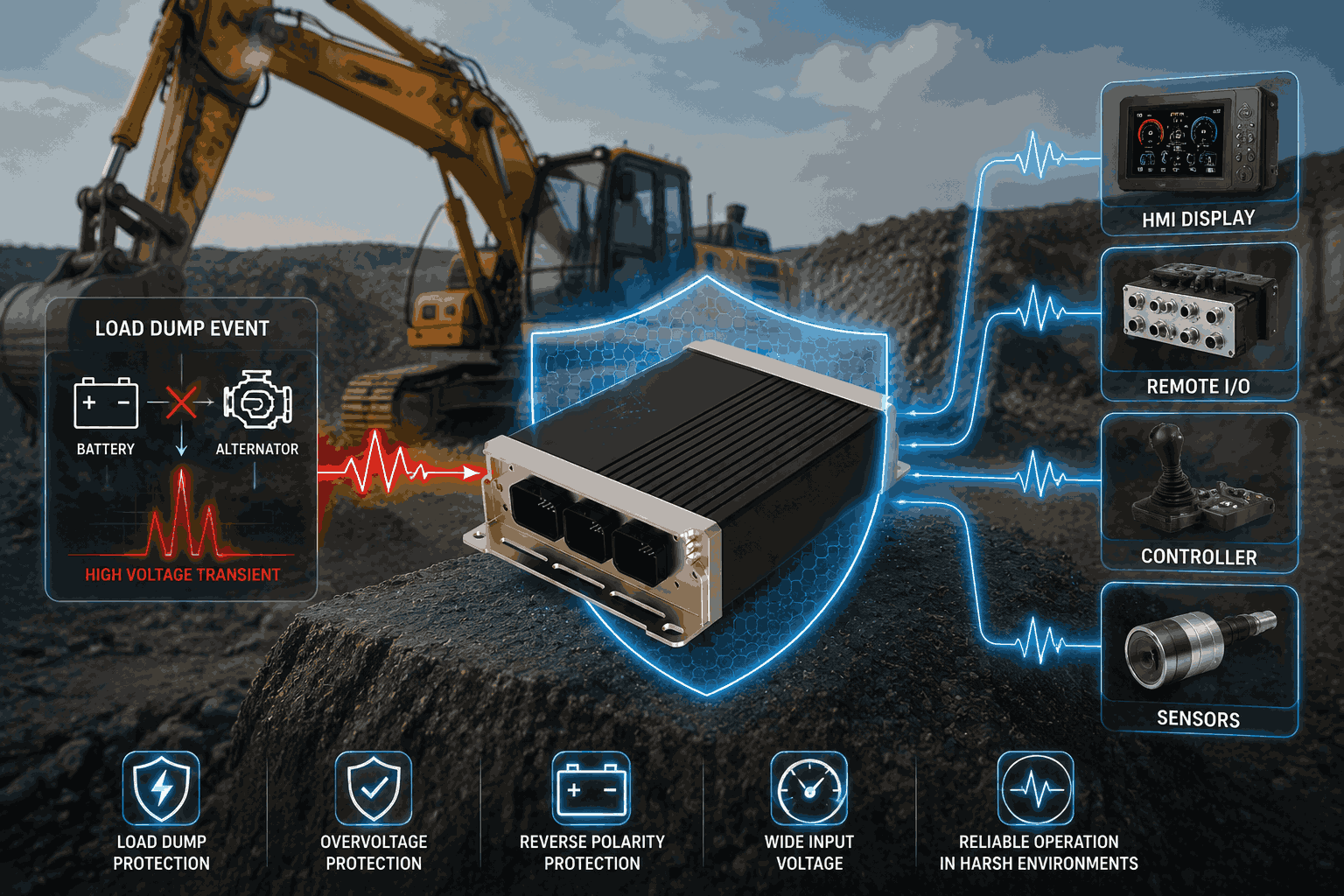

A load dump typically occurs when the battery becomes disconnected from the alternator while the alternator is still supplying current.
The battery normally helps stabilize the electrical system.
If the battery connection is suddenly removed, the alternator output may rise sharply for a short period.
This can create a high-voltage transient on the machine power network.
A simplified sequence is:
Alternator Charging Battery
↓
Battery Connection Is Interrupted
↓
Alternator Output Rises
↓
High-Voltage Transient Appears
↓
Electronic Devices Are Exposed
The exact voltage and duration depend on the electrical architecture, alternator, battery system, and protection components.
Modern mobile machines depend heavily on electronic control systems.
A typical machine may include:
Mobile controller
HMI display
Remote I/O modules
Engine ECU
Sensors
Telematics devices
These components normally operate within a specified voltage range.
A severe transient can exceed the voltage rating of internal components and lead to:
Unexpected resets
Communication errors
Data loss
Permanent circuit damage
Complete device failure
For an OEM manufacturer, this can result in machine downtime and expensive field repairs.
Mobile machinery power systems can experience several types of disturbances.
Supply voltage may rise above the normal operating range.
Possible causes include:
Charging system faults
Switching events
Electrical transients
Voltage may temporarily drop during:
Engine cranking
Heavy electrical loads
Weak battery conditions
Controllers must be able to manage these events without unstable operation.
Incorrect battery connection can expose electronics to reverse voltage.
Without protection, this can damage sensitive components immediately.
Relays, solenoids, motors, and other inductive loads can generate short electrical spikes when switched.
These events may affect nearby electronic systems.
A robust controller power input normally includes several protection stages.
A simplified architecture can be represented as:
Vehicle Power Supply
↓
Input Protection
↓
Transient Suppression
↓
Voltage Regulation
↓
Controller Electronics
Each stage has a different role.
One common protection method is the use of transient suppression devices.
These components help clamp excessive voltage before it reaches sensitive electronics.
They are commonly used to protect against:
Load dump
Switching spikes
Electrostatic events
Other voltage transients
The protection design must be matched to the expected voltage and energy of the application.
Mobile machinery controllers often need to tolerate significant variation in supply voltage.
For example, a controller used on 12 V or 24 V machines may be designed with a wider acceptable input range than ordinary electronics.
This helps the controller continue operating during:
Battery voltage fluctuations
Charging conditions
Temporary voltage drops
A wide input range alone does not replace transient protection, but it improves overall power robustness.
Battery wiring errors can happen during installation or maintenance.
Reverse polarity protection prevents incorrect battery connection from damaging the controller.
This is especially important for equipment that may be serviced in the field.
Mobile machines contain many inductive devices, including:
Solenoid valves
Relays
Motors
Hydraulic valve coils
When these loads are switched off, they can generate voltage spikes.
Proper output protection and suppression help prevent these disturbances from affecting the controller and other electronic devices.
Electrical disturbances do not only affect controller power.
They can also cause communication problems.
For example, a voltage transient may cause one ECU to reset while other devices remain active.
This can result in:
Lost CAN messages
Temporary network faults
Diagnostic errors
Interrupted machine functions
Stable power protection therefore contributes directly to reliable CAN Bus communication.
Consider a wheel loader using:
Main controller
HMI display
Engine ECU
Remote I/O
Hydraulic valves
All of these devices depend on the same vehicle power network.
If a severe electrical transient occurs and the main controller resets, hydraulic functions or operator information may become temporarily unavailable.
A robust power protection design helps keep critical electronic systems stable under these conditions.
Electric mobile machinery introduces different electrical architectures, but transient protection remains important.
These machines may include:
Battery packs
DC/DC converters
Motor controllers
Low-voltage control electronics
The low-voltage control network still needs protection against switching events and abnormal supply conditions.
Controllers, HMI displays, and I/O modules should therefore be designed for the electrical environment of the complete machine.
When selecting control electronics for mobile machinery, OEM engineers should evaluate:
Rated supply voltage
Maximum input voltage
Transient protection
Reverse polarity protection
Undervoltage behavior
Overvoltage behavior
Output protection
Environmental specifications
Power protection should be considered together with:
CAN communication
I/O design
Wiring
Grounding
EMC requirements
A reliable electronic control system depends on the complete electrical architecture, not just one protection component.
Protection design should be verified through testing.
Typical validation may include:
Overvoltage testing
Undervoltage testing
Reverse polarity testing
Transient pulse testing
Power interruption testing
The goal is to verify that the controller either continues operating correctly or enters a predictable safe condition.
Load dump is one of the electrical disturbances that mobile machinery electronics must be prepared to withstand.
Without proper protection, voltage transients can cause controller resets, communication faults, or permanent hardware damage.
By combining transient suppression, wide input voltage design, reverse polarity protection, and robust power management, OEM manufacturers can improve the reliability of electronic control systems in harsh mobile applications.
For construction equipment, agricultural machinery, mining vehicles, and other mobile machines, power protection is a fundamental part of reliable controller design.
