Modern harvesters need more than a screen and a controller placed in the same cab. They need an electronic architecture that can support machine control, operator interaction, communication, diagnostics, and uptime during demanding field work.
That is why integrated display and controller systems are becoming increasingly important for combine harvesters and forage harvesters. For OEMs, they can simplify cab layout, reduce wiring complexity, improve the operator experience, and create a more scalable machine platform.
But physical integration alone is not enough. A cleaner dashboard does not automatically mean a better system. The real value depends on how the display, controller, CAN network, and diagnostics logic work together under real harvesting conditions.

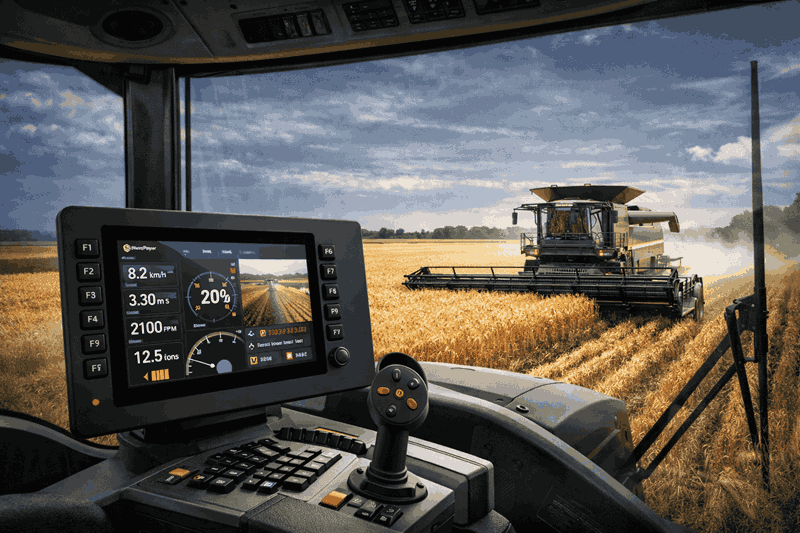

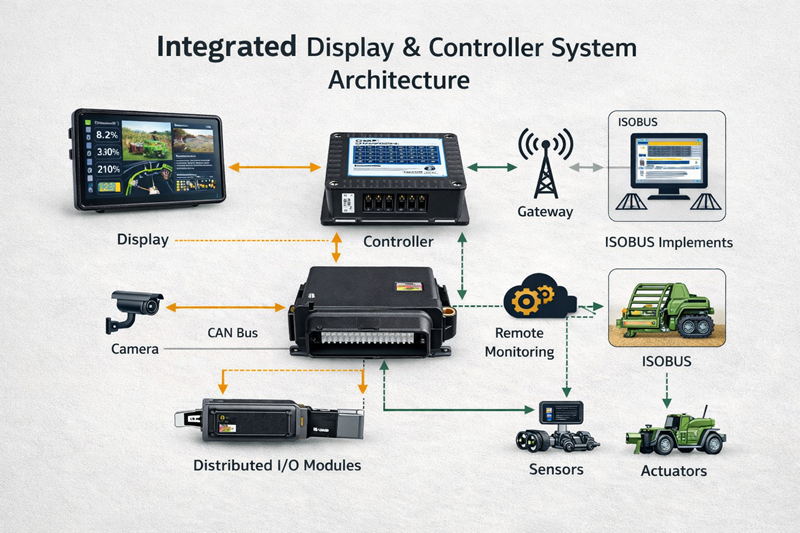

On a harvester, an integrated display and controller system is more than a touchscreen replacing switches. It is a coordinated system in which the HMI, main controller, distributed I/O, and communication network work together.
This type of system may support:
machine status visualization
operator settings and workflow guidance
camera display
warning and fault messages
implement or subsystem communication
maintenance and service access
remote monitoring support
For OEMs, the goal is not just to add more functions to one screen. The goal is to build a machine that is easier to operate, easier to diagnose, and easier to maintain.
Harvesters work in dusty, vibrating, high-load environments and often operate for long hours during narrow seasonal windows. This makes electronic reliability especially important.
Unlike a simple vehicle dashboard, a harvester interface may need to support:
header or attachment status
operating data and machine load
camera visibility
workflow guidance
machine warnings and service information
Because of this, the system should be designed around field workflow and serviceability, not just visual integration.
A successful integrated system starts with clear function allocation.
The display should focus on visualization and interaction. It should show machine data, alarms, setup pages, camera feeds, and guided workflows. Its job is to make machine status visible and understandable.
The controller should handle real-time logic, sensor and actuator coordination, protection strategies, and other time-critical control tasks. Even if the display is interrupted, core machine control should remain stable.
In simple terms, the controller is the machine brain, while the display is the operator-facing window into the system.
CAN bus remains a key communication backbone in many harvester architectures. Depending on the design, protocols such as J1939, CANopen, or CAN FD may also be used to connect controllers, I/O modules, engines, and other subsystems.
ISOBUS becomes important when the machine needs implement interoperability, Virtual Terminal support, or Task Controller functions.
However, supporting these protocols is only part of the job. OEMs also need to define which functions belong on which network, how communication priorities are managed, and how the machine responds when communication is lost.
Not every function benefits equally from integration. On harvesters, the biggest value usually appears in areas where multiple information sources must be combined into one operator workflow.
Typical high-value areas include:
attachment and header status visibility
machine data and operation statistics
camera integration
diagnostics and maintenance access
remote service support
When these functions are properly integrated, the operator gets a clearer interface and technicians get a better service tool.
Many solution pages focus on ruggedness, sealing, brightness, and vibration resistance. These features matter, but they do not guarantee reliable field performance.
In real harvester applications, many failures are caused by system-level issues such as:
unstable power supply
poor grounding
connector contamination
CAN topology problems
termination errors
wiring faults
subsystem communication mismatches
So even a rugged display can still be part of a weak overall system if the architecture is not designed for diagnostics and fault recovery.
One of the most common mistakes is putting too much responsibility into the display simply because it is convenient.
A better principle is:
the display handles visualization, guidance, and interaction
the controller handles deterministic machine control
shared functions such as diagnostics and calibration need clear boundaries
This helps reduce validation risk, improve troubleshooting, and avoid over-coupling the system.

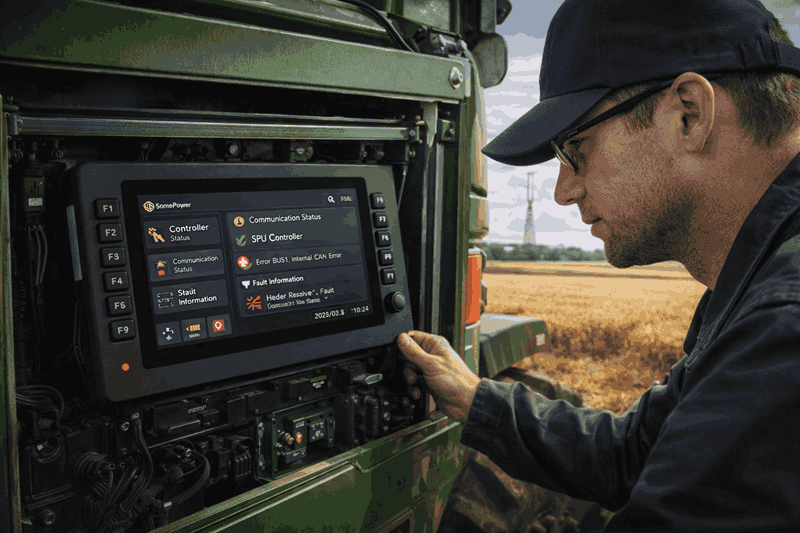

The strongest long-term value of an integrated harvester system is not just a cleaner cab. It is the ability to make faults easier to understand and faster to resolve.
A strong system should do more than show a general warning icon. It should help operators and technicians understand:
which subsystem is affected
whether communication is healthy
what the likely issue is
what should be checked next
This is especially important during harvest season, when downtime is expensive and fast decisions matter.
Integrated display and controller systems for harvesters should not be treated as a simple cab-upgrade project. They are a machine architecture decision.
For OEMs, the best system is not the one that puts the most functions into one screen. It is the one that assigns responsibilities clearly, maintains reliable control, improves diagnostics visibility, and supports real field workflow.
In harvester applications, integration should always be judged by one question: does it help the machine keep working, keep communicating, and make problems easier to solve?
