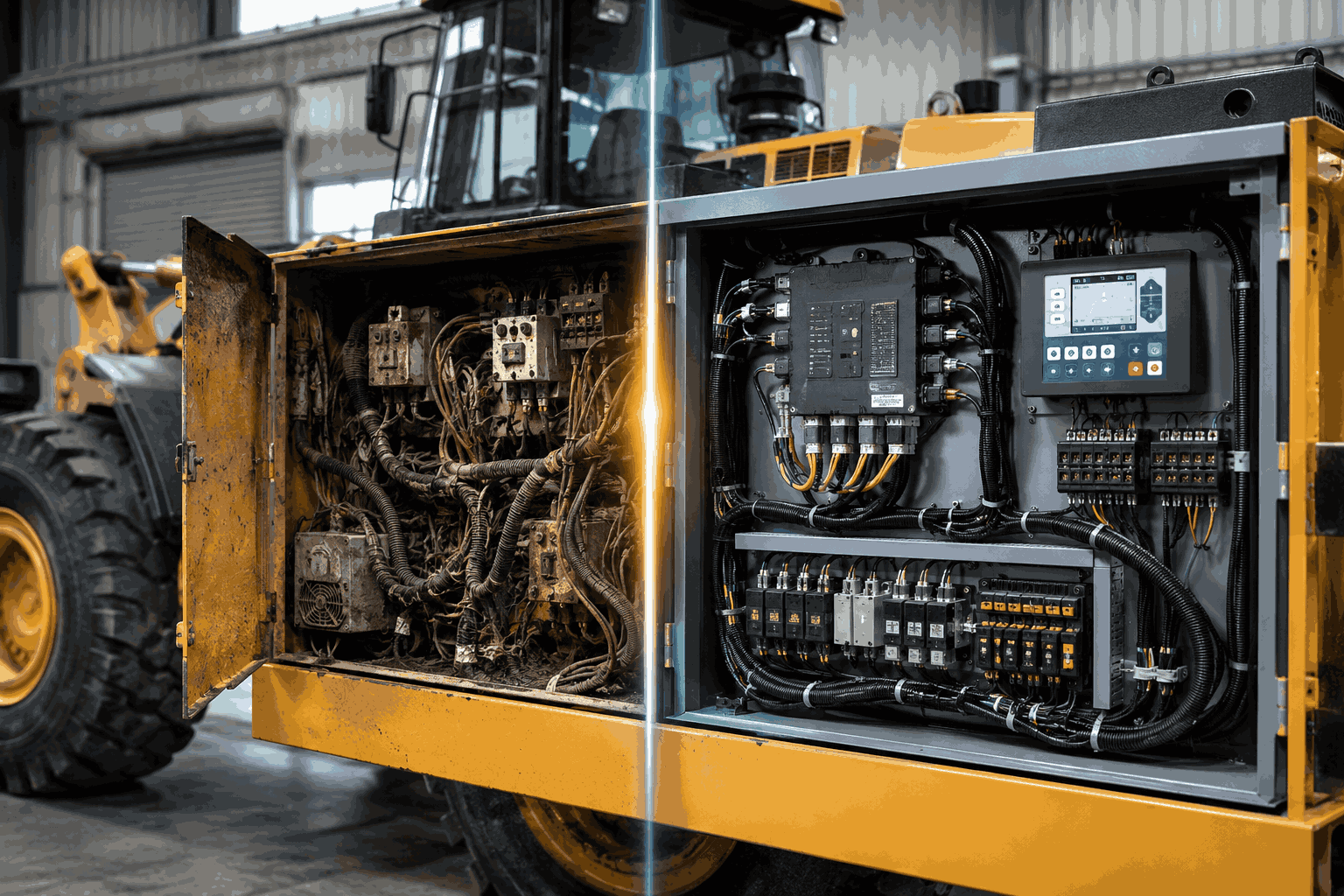

systems become outdated. While the engine, hydraulic system, and mechanical structure may still perform well, obsolete controllers, aging wiring, and discontinued electronic components often lead to frequent failures, higher maintenance costs, and unexpected downtime.
Replacing an entire machine is expensive and is not always necessary. In many cases, upgrading the electronic control system is a more practical solution. By replacing outdated control components with modern technologies, OEM manufacturers can improve machine performance, increase reliability, simplify maintenance, and add new functions without replacing the complete machine.
This guide explains when a retrofit makes sense, which components should be upgraded, and the key steps for a successful electronic control system modernization.
Not every old machine needs to be replaced. Before starting a retrofit project, evaluate both the mechanical condition of the equipment and the limitations of its electronic control system.
A control system upgrade is usually worthwhile when:
The machine's mechanical structure is still in good condition.
Electronic components have become obsolete or difficult to source.
Electrical failures are becoming more frequent.
Maintenance costs continue to increase.
New control or monitoring functions are required.
Production downtime caused by electronic issues is affecting productivity.
If the machine is mechanically sound, upgrading the electronic control system can significantly extend its service life while reducing long-term operating costs.
A modern electronic control system consists of several integrated components. During a retrofit project, engineers should evaluate each part instead of replacing only a single controller.
The most commonly upgraded components include:
The controller is the core of the control system. Upgrading to a modern controller improves processing performance, supports additional I/O channels, enables CAN communication, and provides better diagnostic capabilities.
Modern HMI displays offer clearer graphics, improved operator interaction, real-time diagnostics, alarm management, and parameter configuration compared with older display panels.
Distributed I/O modules reduce wiring complexity by placing inputs and outputs closer to sensors and actuators. They also simplify future expansion and maintenance.
Replacing traditional point-to-point wiring with a CAN bus network improves communication reliability, reduces cable length, and simplifies troubleshooting.
Old wiring is one of the most common causes of electronic failures. During a retrofit, damaged wiring harnesses and connectors should be inspected carefully and replaced if necessary to improve long-term reliability.
A successful retrofit requires careful planning rather than simply replacing hardware.
Evaluate the machine's mechanical condition, electrical system, wiring, hydraulic components, and current control logic.
Understanding the existing system helps determine which components can be reused and which should be replaced.
Before removing the original controller, document every input and output signal.
The I/O mapping should include:
Digital inputs
Digital outputs
Analog inputs
PWM outputs
Sensors
Actuators
Accurate signal mapping greatly reduces installation errors and simplifies software development.
Plan how the controller, HMI, remote I/O modules, sensors, and communication network will work together.
Whenever possible, adopt a distributed CAN-based architecture to reduce wiring complexity and improve future scalability.
Choose hardware according to machine requirements rather than price alone.
Important considerations include:
Number of I/O channels
CAN interfaces
Processing capability
Protection rating
Operating temperature
Expansion capability
Selecting scalable hardware today helps avoid another retrofit in the future.
Replace damaged wiring harnesses, improve cable routing, install industrial connectors, and verify proper grounding.
If the original machine uses traditional point-to-point wiring, consider migrating to a CAN bus network to simplify maintenance and improve communication reliability.
Before returning the machine to service, verify:
Controller operation
HMI communication
CAN network stability
Input and output signals
Safety functions
Hydraulic control
Alarm functions
Field testing under real operating conditions is essential before project completion.
Even a well-planned retrofit can fail if critical engineering details are overlooked. Avoiding the following mistakes can significantly improve project success and reduce commissioning time.
Many retrofit projects begin by replacing the controller immediately. However, every machine has unique operating sequences, safety interlocks, and hydraulic control logic.
Before removing any hardware, document the existing control logic and machine operation. A clear understanding of how the original system works makes software migration and troubleshooting much easier.
Old wiring harnesses are often responsible for intermittent electrical faults.
Years of vibration, moisture, heat, and mechanical wear can damage insulation, loosen connectors, or corrode terminals. Installing a new controller while keeping deteriorated wiring often results in recurring communication problems.
Inspect all wiring carefully and replace damaged harnesses whenever necessary.
Adding CAN communication without proper planning can create new problems instead of solving old ones.
During a retrofit, engineers should verify:
Proper cable routing
Correct termination resistors
Stable grounding
Reliable connector quality
Appropriate node layout
A well-designed CAN network improves communication stability and simplifies future maintenance.
Workshop testing alone is not enough.
Machines should be tested under actual operating conditions to verify communication stability, hydraulic performance, operator interaction, and safety functions.
Field testing helps identify issues before the equipment is delivered to the customer.
One of the most common questions is whether upgrading an existing machine is a better investment than purchasing a new one.
The answer depends on the overall condition of the equipment.
| Factor | Electronic Control System Retrofit | New Machine |
|---|---|---|
| Initial Investment | Lower | Higher |
| Downtime | Shorter | Longer |
| Mechanical Components | Reused | New |
| Electronic Technology | Modernized | Latest Generation |
| Return on Investment | Faster | Longer |
| Future Expansion | Good | Excellent |
In general, a retrofit is the better choice when the machine's mechanical structure remains reliable and only the electronic control system has become outdated.
If the machine has significant structural wear or major mechanical failures, replacing the entire machine may provide better long-term value.
A successful retrofit depends not only on the hardware but also on the engineering expertise behind the project.
When selecting a control system supplier, look for a partner that can provide:
Complete control system solutions instead of individual components
Experience with mobile machinery applications
Controller, HMI, and Remote I/O integration
CAN bus communication expertise
Engineering support during commissioning
Long-term technical support and spare parts availability
Working with a system-level supplier helps reduce integration risks and simplifies future maintenance.
Yes. If the mechanical structure is still in good condition, upgrading the electronic control system can significantly improve reliability, diagnostics, and operational efficiency.
Typical upgrades include the controller, HMI display, Remote I/O modules, CAN communication network, wiring harnesses, sensors, and connectors.
In many cases, yes. When the machine is mechanically sound, a control system retrofit usually requires a lower investment than replacing the entire machine while delivering substantial performance improvements.
Only if they are in excellent condition. Damaged or aging wiring should be replaced during the retrofit to avoid future electrical and communication failures.
CAN Bus reduces wiring complexity, improves communication reliability, supports distributed control, and makes system diagnostics easier.
Upgrading old machinery with modern electronic control systems is often a practical and cost-effective alternative to purchasing new equipment.
By replacing obsolete controllers, HMI displays, communication networks, and electrical components, manufacturers can extend machine life, improve reliability, reduce maintenance costs, and introduce new intelligent functions.
A successful retrofit is not simply about replacing hardware—it requires careful assessment, system-level design, proper testing, and experienced engineering support. With the right planning and the right technology partner, older machines can continue to operate efficiently for many years.
