Many older mobile machines still use relay logic, analog signals, and large point-to-point wiring systems. These machines may still work mechanically, but their electronic control systems often become difficult to maintain.
Spare parts become harder to find. Wiring faults take longer to troubleshoot. Adding new functions becomes complicated. In many cases, the machine itself is still valuable, but the control architecture is outdated.
This is where CAN-based electronics can help.
A retrofit upgrade allows machine manufacturers, fleet owners, and system integrators to modernize machine control without replacing the entire machine. By introducing CAN controllers, I/O modules, HMI displays, and digital communication networks, older machines can gain better diagnostics, cleaner wiring architecture, and more flexible control logic.
Many legacy machines rely on relay panels, analog switches, hardwired buttons, and long discrete wiring harnesses. Every sensor and actuator may connect directly back to the control cabinet.
As machines become more complex, this architecture creates several problems:
Large and difficult wiring harnesses
Limited diagnostic capability
Poor scalability
Difficult troubleshooting
Higher maintenance time
In older hydraulic machines, even simple functions may require multiple relays and long wiring paths.
The biggest problem is not always the machine itself. It is usually the electronics around it.
Common issues include:
Obsolete controllers or relay boards
Unavailable spare parts
Unlabeled wiring modifications
Inconsistent electrical documentation
Poor fault visibility
A single wiring fault may require hours of troubleshooting because the machine has no centralized diagnostics.
Full machine replacement is expensive and often unnecessary.
If the mechanical structure, hydraulic system, and engine are still usable, retrofitting the control system may provide a better return on investment.
This approach is common in:
Construction machinery
Sanitation vehicles
Agricultural equipment
Mining machinery
Special-purpose mobile equipment
CAN bus replaces large amounts of point-to-point wiring with a shared communication network.
Instead of every switch and sensor wiring directly to the main controller, devices communicate through CAN messages.
This creates:
Cleaner wiring architecture
Easier diagnostics
Better scalability
Faster integration of new functions
For mobile machinery, CAN bus has become the standard approach for distributed electronic control.
A modern retrofit system usually includes:

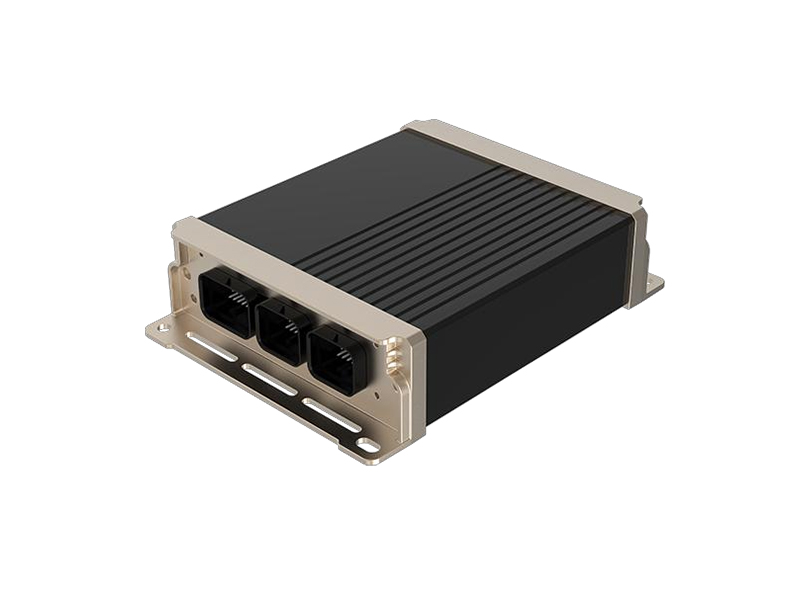

Mobile machinery controller (ECU)
Distributed I/O modules
HMI display
CAN-connected sensors and actuators
The controller handles machine logic.
The I/O modules collect sensor inputs and drive outputs closer to the machine subsystem, reducing long wiring runs.

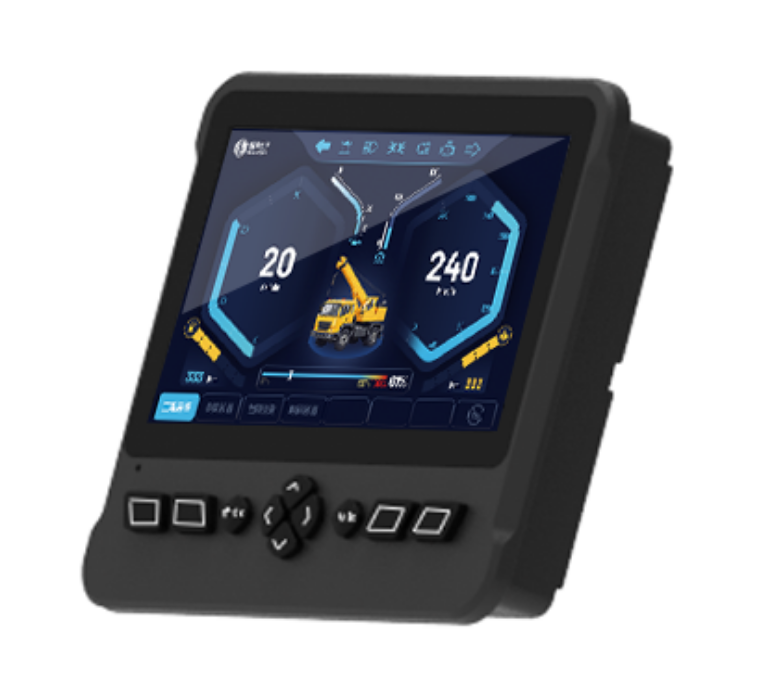

The HMI display provides machine status, alarms, settings, and diagnostics.
CAN-based systems allow sensors, valves, pumps, and displays to exchange data continuously across the network.
Typical examples include:
Hydraulic valve control
Engine communication
Lighting systems
Pump control
Safety alarms
Operator interface data
SAE J1939 is widely used in heavy-duty mobile equipment such as:
Construction machinery
Agricultural machines
Trucks
Sanitation vehicles
It is especially useful when communicating with engines, transmissions, or other off-highway vehicle systems.
CANopen is more common in distributed automation and subsystem control.
It is often used when:
Flexible node configuration is needed
Motion control is important
Custom distributed systems are required
Some machines may even use both J1939 and CANopen together.
Choosing the communication protocol early helps avoid integration problems later.
The protocol affects:
Controller compatibility
Display communication
Diagnostic structure
Future expansion capability
Protocol selection should happen before hardware purchasing begins.
One major advantage of retrofit projects is replacing fixed relay logic with programmable software control.
This allows:
Easier logic changes
More flexible machine modes
Better diagnostics
Future software updates
Functions that once required multiple relays can now be handled inside the controller software.
Many existing hydraulic valves and sensors can still be reused during retrofit projects.
Typical retrofit architecture includes:
Analog sensor inputs
Digital switch inputs
PWM valve outputs
CAN communication nodes
Distributed I/O modules make integration easier by placing inputs and outputs closer to machine subsystems.
One of the biggest retrofit benefits is wiring simplification.
Instead of routing every signal across the entire machine, CAN nodes communicate through a shared network cable.
This reduces:
Harness complexity
Installation time
Fault points
Maintenance difficulty
Modern HMI displays provide operators with centralized information such as:
Fault codes
Hydraulic status
Engine data
Alarm notifications
Machine operating modes
This greatly improves troubleshooting efficiency.
Modern displays can also integrate:
Reverse cameras
Work tool cameras
Service menus
Machine parameter settings
This improves both machine usability and operator awareness.
Hydraulic systems are often the most critical part of retrofit projects.
CAN-based controllers can manage:
Proportional valves
Hydraulic pumps
Fan systems
Motor speed control
The retrofit process should verify signal compatibility before deployment.
Safety logic should never be treated as an afterthought.
The system should define:
Emergency stop behavior
Communication loss response
Manual override strategy
Safe fallback states
These functions are especially important in mobile machinery.
Before purchasing hardware, create a complete machine audit:
Input/output list
Sensor types
Valve specifications
Power supply details
Safety circuits
Existing communication interfaces
This step prevents major integration problems later.
Before installing on the full fleet:
Bench test the controller and I/O logic
Install on one machine first
Validate under real working conditions
Adjust software and diagnostics
This phased approach reduces risk and downtime.
Successful retrofit projects usually avoid replacing everything at once.
A phased upgrade strategy allows machines to continue operating while the new electronics are validated.
One of the most common mistakes is purchasing controllers before understanding the machine signals.
Always define:
Input count
Output types
PWM requirements
Sensor signal ranges
Safety logic
before hardware selection.
A retrofit project is not only about adding CAN bus communication.
The machine must still behave safely during:
Power failure
CAN communication loss
Sensor failure
Emergency stop activation
CAN bus is not just a way to reduce wiring.
It also creates:
Better diagnostics
Distributed architecture
Easier scalability
Improved serviceability
Machines upgraded correctly become easier to maintain and expand in the future.
