However, designing a mobile machinery control system is not simply a matter of selecting a controller and connecting a few sensors. A successful design requires careful planning of machine functions, I/O requirements, communication networks, operator interfaces, and future expansion needs.
This guide explains a practical step-by-step approach to designing a mobile machinery control system from scratch.
Before selecting any hardware, the first step is to understand exactly what the machine needs to do.
Many projects fail because engineers begin by selecting a controller before fully defining system requirements.
Start by answering several key questions:
What functions will the machine perform?
How many hydraulic functions are required?
What safety systems are needed?
What information should be displayed to the operator?
Will the machine require remote diagnostics or telematics?
Are future upgrades expected?
For example, a boom lift may require:
Boom raising and lowering
Steering control
Emergency stop functions
Load monitoring
Operator display
Camera integration
A clear list of machine functions becomes the foundation for every design decision that follows.
Once the machine requirements are defined, the next step is calculating I/O requirements.
Every sensor, switch, valve, relay, and actuator must be identified and classified.
Digital inputs typically include:
Emergency stop switches
Limit switches
Seat switches
Door switches
Proximity sensors
Digital outputs commonly control:
Relays
Warning lights
Buzzers
Solenoid valves
Analog inputs are used for:
Pressure sensors
Temperature sensors
Fuel level sensors
Position sensors
PWM outputs are commonly required for:
Proportional hydraulic valves
Fan speed control
Motor speed control
After identifying all signal types, spare capacity should be added for future expansion.
As a general guideline:
Small machines: 20% spare I/O
Medium machines: 25% spare I/O
Complex machines: 30% spare I/O
Proper I/O planning prevents costly redesigns later in the project.
With I/O requirements established, the controller can now be selected.
The controller acts as the brain of the entire machine and should be evaluated based on more than total I/O count.
Important considerations include:
The controller must have enough computing power to manage all machine functions and future software updates.
Most modern machines require communication interfaces such as:
CAN Bus
SAE J1939
RS232
RS485
Ethernet
Machines often evolve over time.
A controller with additional communication channels and expansion support can significantly extend the lifecycle of the platform.
When evaluating controllers, engineers should focus on future requirements rather than only current needs.
Modern mobile machinery increasingly relies on CAN Bus networks instead of traditional point-to-point wiring.
CAN Bus enables multiple devices to communicate through a shared network, reducing wiring complexity and improving system scalability.
A typical CAN network may include:
Mobile machinery controller
Engine ECU
Joysticks
Sensors
Compared with traditional wiring systems, CAN-based architectures offer several advantages:
Reduced wiring harnesses
Lower installation costs
Easier diagnostics
Improved reliability
Better scalability
Network planning should also consider:
Baud rate
Node count
Termination resistors
Future expansion devices
A well-designed CAN network simplifies both development and maintenance.
The operator interface is the connection between the machine and the user.
Even the most advanced control system can become difficult to use if the operator interface is poorly designed.

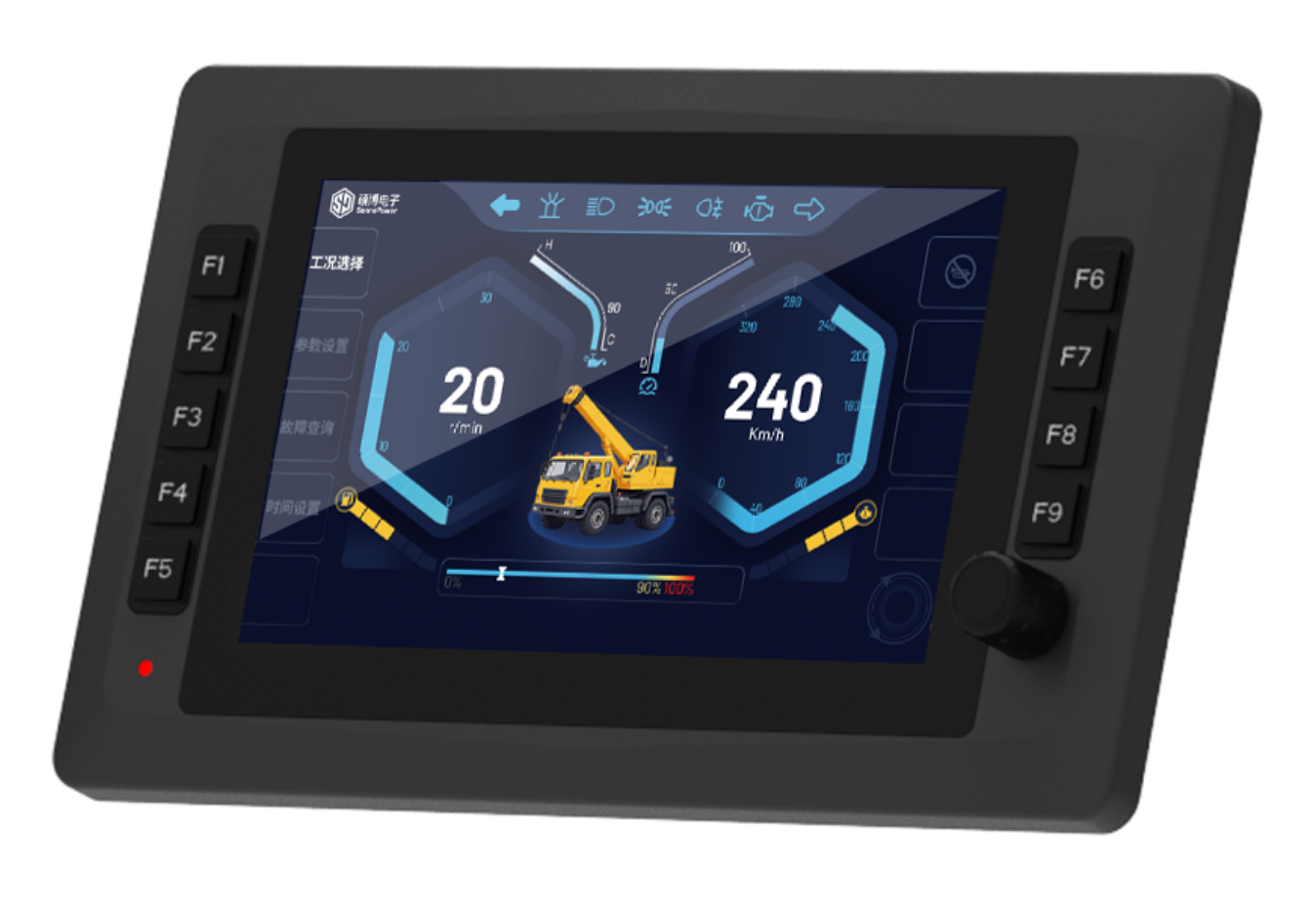

Modern displays provide:
Machine status
Engine information
Hydraulic data
Diagnostic messages
Camera views
The display should present information clearly without overwhelming the operator.

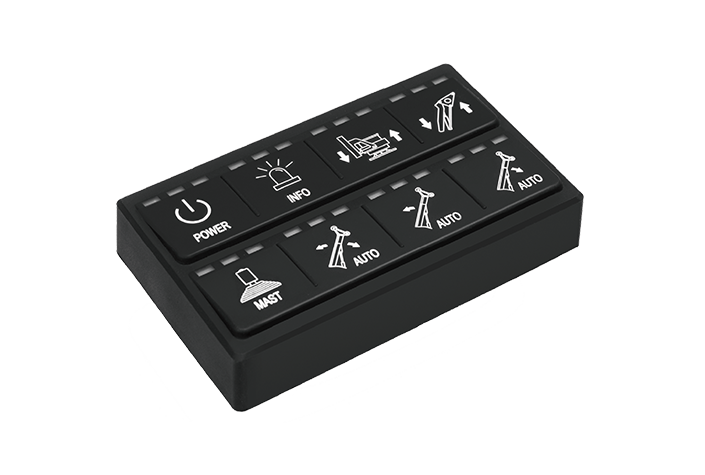

CAN keypads provide simple and reliable control of machine functions.
Because communication occurs through the CAN network, wiring requirements remain minimal while functionality remains flexible.
Operators should receive immediate feedback when abnormal conditions occur.
Examples include:
High hydraulic temperature
Low fuel level
Sensor failures
Communication faults
A well-designed interface improves productivity and enhances machine safety.
Testing is one of the most important stages of the development process.
A system that performs well in the office may behave differently in real operating conditions.
Testing should include several stages.
Verify that all machine functions operate correctly.
Examples include:
Hydraulic movement
Engine control
Safety interlocks
Verify communication between all CAN devices.
Check:
Message transmission
Error handling
Fault recovery
Operate the machine under real working conditions.
Evaluate:
Reliability
Operator usability
Environmental performance
System stability
Field testing often identifies issues that are difficult to detect during laboratory testing.
Many control system projects encounter similar challenges.
A controller should be selected after machine requirements and I/O needs are defined.
Machines frequently receive new functions after launch.
Insufficient spare capacity often becomes a long-term problem.
Poor network design can create communication issues that are difficult to diagnose later.
Successful projects require equal attention to software, operator experience, and system validation.
Designing a mobile machinery control system requires much more than selecting a controller.
A successful design begins with clearly defined machine requirements, followed by careful I/O planning, controller selection, CAN network design, operator interface development, and comprehensive testing.
By following a structured design process, manufacturers can build reliable, scalable, and future-ready control systems that support both current machine functions and future upgrades.
As machines become more intelligent and connected, thoughtful system architecture becomes increasingly important to long-term project success.
A mobile machinery control system is an electronic architecture that manages machine functions through controllers, displays, sensors, actuators, and communication networks.
Start by defining machine requirements and calculating I/O needs. Then evaluate communication interfaces, processing capability, environmental protection, and future expansion support.
CAN Bus reduces wiring complexity, improves reliability, simplifies diagnostics, and allows multiple devices to communicate through a shared network.
Most mobile machinery applications benefit from 20% to 30% spare I/O capacity to support future upgrades and optional functions.
Remote I/O modules are useful when machines have distributed sensors and actuators, helping reduce wiring length and simplify installation.
