Modern mobile machinery depends heavily on hydraulic systems. Excavators, wheel loaders, aerial work platforms, agricultural machines, and sanitation vehicles all rely on hydraulic pumps, valves, cylinders, and motors to perform movement and work functions. As machines become more advanced, hydraulic systems also become more complex. Multiple functions often operate at the same time, including lifting, steering, attachment control, braking, cooling, and auxiliary hydraulic operations. Without proper coordination, these functions can interfere with each other, causing unstable motion, slow response, excessive energy consumption, or unsafe machine behavior. This is where mobile machinery controllers become important. Modern controllers coordinate hydraulic functions through electronic logic, CAN bus communication, sensor feedback, and proportional valve control. Instead of relying only on manual hydraulic operation or relay-based logic, the controller continuously manages the entire hydraulic system in real time. In many machines, several hydraulic functions may operate simultaneously. For example, an excavator operator may: Raise the boom Rotate the upper structure Move the travel motors Operate an attachment all at the same time. If hydraulic flow is not coordinated correctly, machine movement may become jerky or unpredictable. Older hydraulic systems often rely on: Manual hydraulic control Relay-based logic Fixed valve behavior Minimal sensor feedback These systems are harder to optimize because they cannot dynamically adjust machine behavior based on operating conditions. Modern electronic controllers provide much more flexible hydraulic coordination. The controller continuously reads signals from: Joysticks Switches Pressure sensors Position sensors Engine data Safety systems These inputs help the controller understand what the operator wants the machine to do. After processing the input signals, the controller sends commands to: Proportional hydraulic valves Hydraulic pumps Cooling systems Actuators Auxiliary hydraulic circuits The controller determines how much flow and pressure each function requires. The controller also manages function priority. For example: Steering may receive higher priority than auxiliary functions Boom movement and attachment movement may require balanced flow sharing Travel speed may be limited during certain hydraulic operations This coordination improves both machine smoothness and safety. Modern controllers help match hydraulic pump output to actual machine demand. Instead of running the pump at maximum output continuously, the controller adjusts pump behavior based on: Valve demand Operator input System pressure Engine load This improves fuel efficiency and reduces heat generation. Electronic controllers can also optimize: Hydraulic flow Pressure control Motion speed Directional control This creates smoother and more predictable machine operation. Without coordination, multiple hydraulic functions may compete for limited hydraulic flow. The controller helps prevent this by managing: Flow sharing Function priority Pump compensation Valve timing This is especially important in multi-function mobile machinery. Many hydraulic proportional valves require PWM outputs from the controller. PWM control allows the valve spool position to change smoothly rather than switching fully on or off. This creates: Smoother cylinder motion Better speed control Improved operator feel More precise hydraulic behavior Controllers can also adjust: PWM frequency Output current Ramp timing Valve response curves These settings help optimize hydraulic performance for different machine applications. Modern hydraulic systems often use sensors for: Hydraulic pressure Cylinder position Oil temperature Pump speed Motor speed The controller uses this feedback to adjust machine behavior in real time. Sensor feedback allows the controller to: Maintain smoother movement Reduce overshoot Improve positioning accuracy Detect abnormal conditions Closed-loop control improves overall machine stability. CAN bus communication allows different machine components to exchange data efficiently. Typical CAN-connected devices include: Controllers Hydraulic valve drivers Sensors Engine systems This reduces wiring complexity and improves diagnostics. SAE J1939 is commonly used in heavy-duty mobile machinery. CANopen is often used for distributed subsystem control and specialized automation functions. Both protocols support reliable communication in hydraulic machine systems. Hydraulic systems must remain safe even during abnormal conditions. Controllers manage: Emergency stop logic Safety interlocks Overpressure conditions Sensor failure detection If communication is lost or a sensor fails, the controller can place the machine into a predefined safe state. This helps reduce equipment damage and operator risk. A hydraulic controller should not be selected only by the number of outputs. Important factors also include: PWM capability Output current CAN communication support Diagnostic functions Environmental protection Valve coils, sensor ranges, and hydraulic system requirements must all match the controller capability. Compatibility problems can create unstable hydraulic behavior. Hydraulic systems often require tuning during real machine operation. Bench testing alone is usually not enough for final optimization. The controller reads operator inputs and sensor feedback, then coordinates pumps, valves, and actuators through software logic and electronic outputs. CAN bus allows controllers, sensors, I/O modules, and HMI displays to exchange data reliably while reducing wiring complexity. Yes. Modern mobile machinery controllers can coordinate multiple hydraulic functions simultaneously while managing flow priority and safety logic. Most proportional hydraulic valves require PWM outputs with controlled current and adjustable frequency. SAE J1939 is more common in heavy-duty mobile machinery, while CANopen is often used for distributed subsystem control and automation functions.Why Hydraulic Systems Need Better Coordination in Mobile Machinery
Multiple Hydraulic Functions Competing for Flow
Why Traditional Control Systems Are Limited
How a Mobile Machinery Controller Manages Hydraulic Logic
Reading Joystick Inputs and Machine Status
Converting Commands into Valve and Pump Control
Coordinating Multiple Machine Functions
Pump-Valve Coordination in Electro-Hydraulic Systems
Matching Pump Output with Hydraulic Demand
Managing Pressure and Flow
Reducing Function Conflict
Proportional Valve Control with PWM Outputs
Why PWM Outputs Matter
Valve Response Tuning
Sensor Feedback for Closed-Loop Hydraulic Control
Pressure, Position, and Temperature Feedback
Improving Stability and Accuracy
CAN Bus Communication in Hydraulic Control Systems

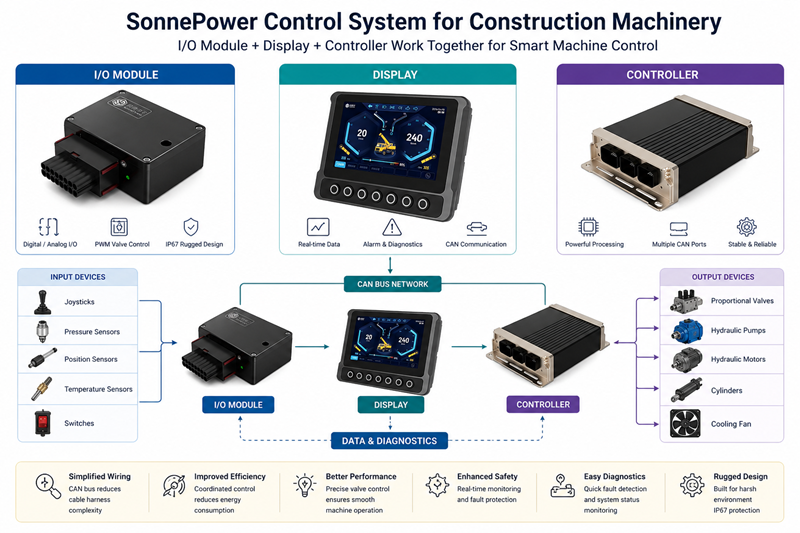

Connecting Controllers, I/O Modules, and HMI Displays
SAE J1939 and CANopen
Safety and Fail-Safe Logic
Emergency Stop and Interlock Conditions
Communication Loss and Safe States
Common Mistakes When Selecting Hydraulic Controllers
Choosing Only by Output Quantity
Ignoring Valve and Sensor Compatibility
Skipping Field Commissioning
FAQ
How does a mobile machinery controller improve hydraulic coordination?
Why is CAN bus used in hydraulic control systems?
Can one controller manage multiple hydraulic functions?
What outputs are needed for proportional valve control?
Should mobile machinery use J1939 or CANopen?
