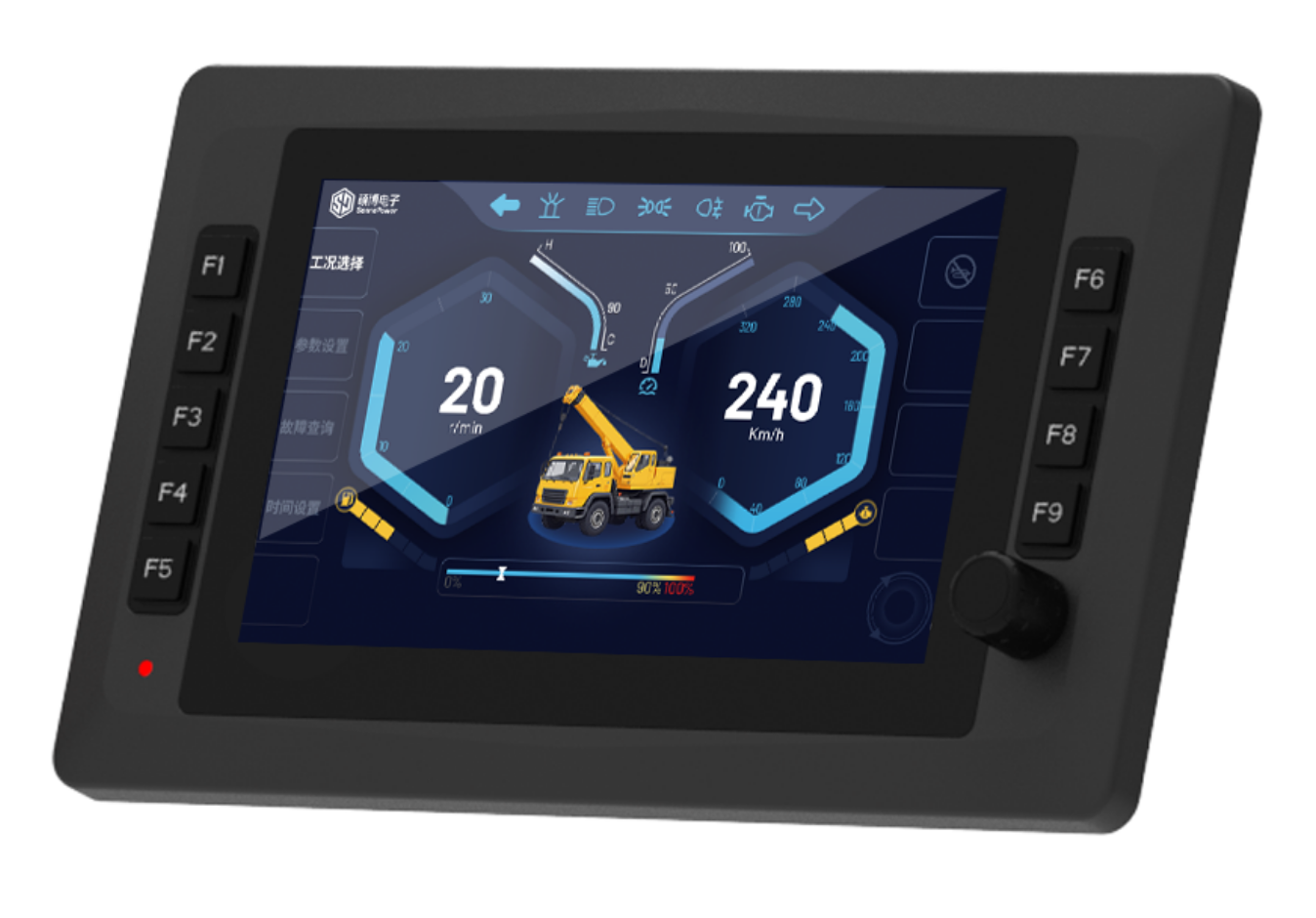

Modern mobile machinery relies on electronic control systems to monitor sensors, controllers, engines, hydraulics, and other machine functions. When a fault occurs, operators need more than a warning light—they need clear information about what happened and where to look. An HMI display can provide this diagnostic information directly from the machine, helping operators and technicians identify problems faster and reduce unnecessary downtime.
An HMI can receive diagnostic information from the machine controller and display faults as they occur.
For example, the display may show:
Engine communication faults
Sensor failures
Hydraulic system warnings
CAN communication errors
Over-temperature conditions
Low or abnormal voltage
I/O signal faults
Instead of relying only on a warning lamp, the operator can see what type of fault has occurred and which system is affected.
Machine controllers can detect abnormal conditions and generate fault codes or status information.
The HMI can present this information in a more understandable format, such as:
Engine Communication Fault
CAN communication with the engine ECU has been interrupted.
Hydraulic Pressure Warning
The pressure sensor signal is outside the expected range.
This makes diagnostic information easier to understand during machine operation or maintenance.
HMI displays can also show real-time values from sensors and I/O modules.
Depending on the machine, operators or technicians may monitor:
Hydraulic pressure
Oil temperature
Engine speed
Battery voltage
Position sensors
Switch status
Digital inputs
PWM outputs
This helps technicians determine whether a problem comes from the sensor, wiring, I/O module, controller logic, or another part of the system.
In machines using CAN-based communication, the controller may exchange information with engine ECUs, remote I/O modules, sensors, and other electronic devices.
The HMI can display relevant communication status, such as:
Device online/offline status
Communication errors
Engine parameters
Diagnostic messages
Network-related warnings
For systems using SAE J1939, for example, engine information received from the ECU can be displayed directly on the machine's HMI.
Diagnostics are not only useful after a machine stops working. Real-time monitoring can help operators notice abnormal conditions before they develop into serious failures.
For example, an HMI can display an increasing hydraulic temperature or abnormal system voltage. The operator can then take action before the machine enters a more serious fault condition.
This can help improve machine availability and reduce unexpected downtime.
Without an HMI, technicians may need external diagnostic equipment or additional tools to determine what is happening inside the control system.
With diagnostic information available on the machine display, technicians can quickly check:
What fault occurred
Which system is affected
What the current sensor values are
Whether connected devices are communicating
Whether the machine has entered a protection or limited-operation mode
This can shorten troubleshooting time and make field maintenance more efficient.
An HMI does not replace the machine controller. The controller remains responsible for monitoring inputs, executing control logic, detecting faults, and managing machine functions.
The HMI provides the operator interface for this information.
A typical diagnostic architecture can work like this:
Sensors / ECUs / I/O → Mobile Controller → HMI Display
The controller collects and processes machine data, while the HMI presents important diagnostic information to the operator.
This combination creates a more transparent control system and makes machine status easier to understand.
HMI displays play an important role in modern mobile machinery diagnostics. By displaying fault information, sensor values, communication status, and machine operating conditions, an HMI helps operators and technicians understand problems without relying only on warning lights or external diagnostic equipment. For mobile machinery manufacturers, combining a programmable controller with a rugged HMI can create a more practical diagnostic system that improves fault visibility, maintenance efficiency, and machine uptime.
