Modern construction machinery relies on a large number of sensors, valves, switches, pumps, lights, and actuators. As machines become more advanced, the electrical system also becomes more complicated.
Traditional centralized wiring architectures often create large wiring harnesses that run across the entire machine. These harnesses increase installation time, add weight, make troubleshooting difficult, and create more potential failure points.
Distributed I/O systemssolve many of these problems by moving inputs and outputs closer to the machine subsystems they control.
Using CAN bus communication, distributed I/O modules simplify wiring architecture while improving diagnostics, scalability, and serviceability in construction machinery.
In a traditional centralized control system, almost every sensor and actuator connects directly back to the main controller cabinet.
This means long cables must run across the machine for:
Hydraulic valves
Pressure sensors
Limit switches
Lights
Pumps
Cooling systems
Operator controls
On large machines such as excavators, wheel loaders, or aerial work platforms, these cable runs can become extensive.
As more machine functions are added, the main wiring harness becomes larger and more difficult to manage.
Common problems include:
Increased harness weight
Difficult routing
Higher assembly time
More connectors and junctions
Higher maintenance complexity
A single damaged wire may require significant disassembly just to locate the fault.
Long point-to-point wiring systems make diagnostics slower.
When a signal problem occurs, technicians often need to trace wires manually through the machine structure. In harsh construction environments, this process becomes time-consuming and expensive.
Distributed I/O modules are installed near the machine subsystem they support.
Instead of routing every signal back to one central cabinet, local sensors and actuators connect directly to the nearby I/O module using short cables.
This greatly reduces wiring distance.
Typical installation locations include:
Hydraulic valve blocks
Engine compartments
Rear chassis sections
Boom or attachment areas
Rather than using separate signal wires for every device, distributed systems use CAN bus communication between the controller and I/O modules.
This means:
Fewer long cables
Smaller harnesses
Easier machine expansion
Better fault diagnostics
In mobile machinery, SAE J1939 and CANopen are commonly used communication protocols.
The I/O module collects local signals and exchanges data with the main controller through CAN messages.
Examples include:
Sensor readings
Hydraulic valve commands
Lighting outputs
Machine status signals
Safety alarms
The controller processes the logic while the distributed I/O handles localized connections.
The biggest advantage of distributed I/O is replacing long signal wiring with short local connections.
Instead of routing every sensor wire across the machine:
Sensors connect locally to the I/O module
The I/O module communicates through one CAN cable
This significantly reduces harness complexity.
Hydraulic systems especially benefit from distributed I/O.
Pressure sensors, proportional valves, and position sensors are often grouped in the same machine area. A nearby I/O module allows these devices to use much shorter cables.
This also helps reduce electrical noise problems in analog signals.
Smaller harnesses improve machine assembly and service access.
Benefits include:
Cleaner cable routing
Reduced installation time
Easier maintenance access
Lower risk of harness damage
For OEMs, this can also improve production efficiency.
Distributed I/O modules commonly collect digital signals from:
Limit switches
Safety switches
Position sensors
Operator buttons
These inputs are transmitted to the controller through the CAN network.
Many construction machines use analog sensors for:
Hydraulic pressure
Oil temperature
Fluid level
Position feedback
Distributed I/O modules can process these signals locally before transmitting them digitally through CAN bus.
Many hydraulic proportional valves require PWM control outputs.
CAN-based I/O modules can drive:
Hydraulic valve coils
Pump controls
Cooling fan systems
Motor speed controls
This makes distributed control especially useful in hydraulic machinery.
Construction machinery operates in harsh environments with:
Mud
Rain
Dust
Vibration
Temperature changes
Standard industrial I/O modules may not survive these conditions.

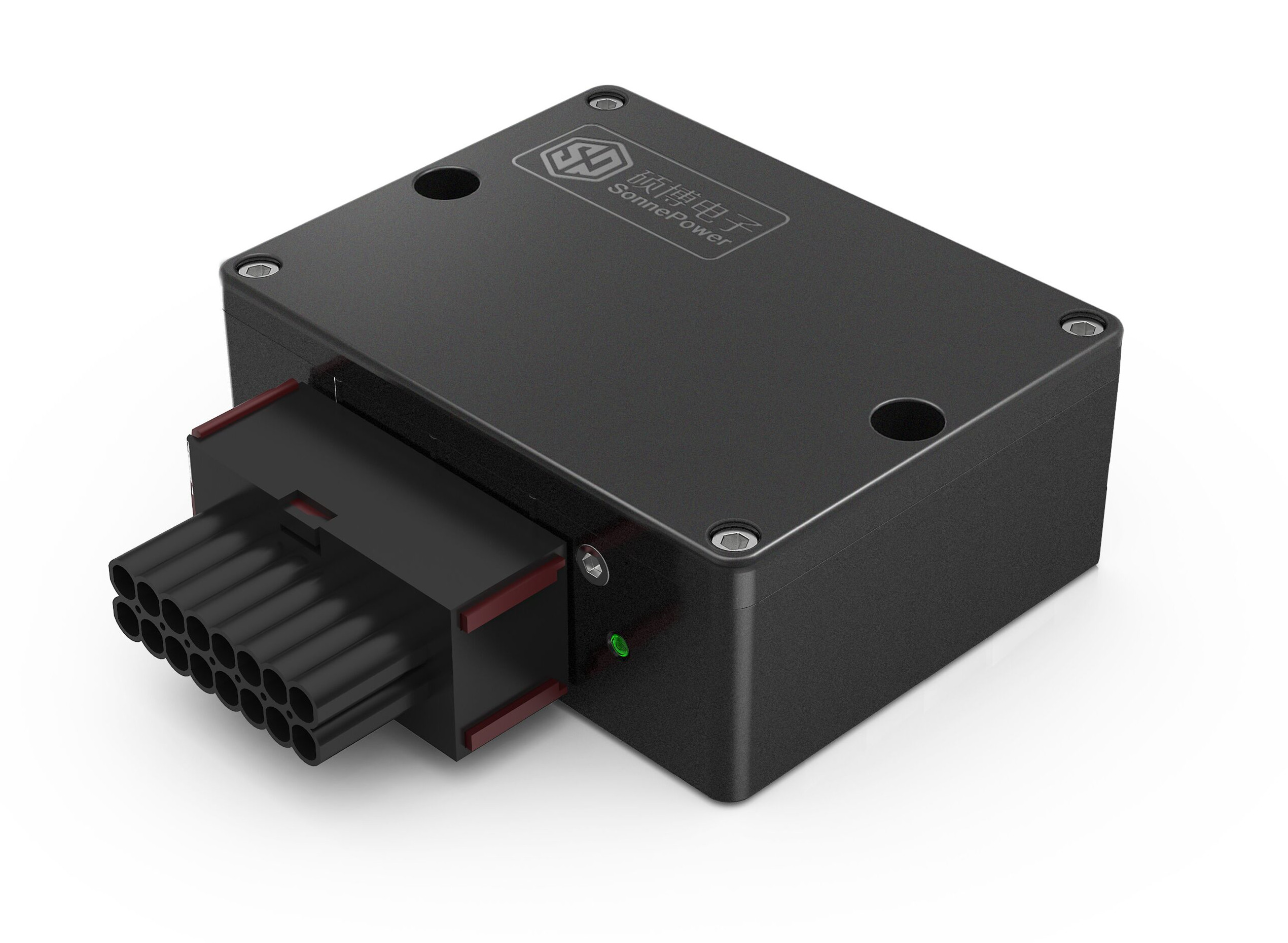

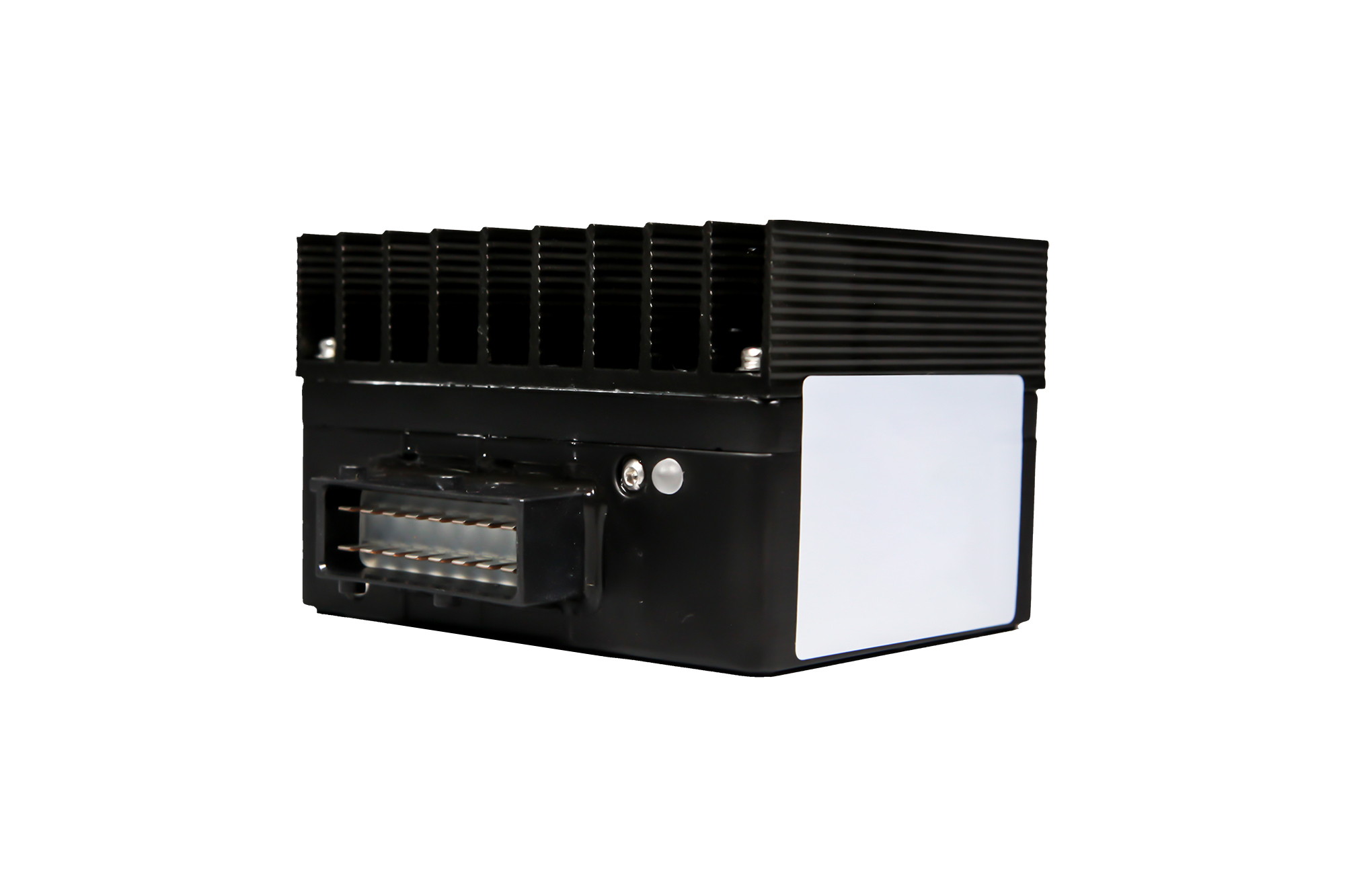

Rugged IP67-rated I/O modules are designed for outdoor mobile equipment applications.
Construction machines contain high-current systems such as:
Hydraulic pumps
Alternators
Electric motors
Solenoid valves
Strong electromagnetic interference can affect signal quality if the wiring architecture is poor.
Distributed I/O helps reduce long analog signal runs and improves signal reliability.
Proper connectors and installation methods are also important.
Construction machinery I/O systems should consider:
Sealed connectors
Vibration resistance
Cable strain relief
Mounting location protection
Centralized systems require many long cables routed back to one controller location.
Distributed I/O replaces this with:
Local short wiring
Smaller main harnesses
Simplified routing paths
This creates a cleaner electrical architecture.
Smaller harnesses are easier to install and service.
Technicians can also isolate faults more quickly because the I/O nodes are organized by subsystem location.
CAN-based systems improve diagnostics.
Instead of tracing wires manually across the machine, technicians can identify faults by checking:
I/O node status
CAN communication
Input/output diagnostics
Fault codes
This reduces maintenance downtime.
Choosing an I/O module only by input and output quantity is a common mistake.
Other important factors include:
Output current capacity
PWM capability
CAN protocol support
Environmental protection rating
Connector type
Hydraulic valves and actuators may require higher current outputs or specific PWM frequencies.
Always verify compatibility before installation.
Distributed I/O only reduces wiring if the modules are installed near the sensors and actuators they support.
Poor placement can reduce many of the expected benefits.
Distributed I/O modules are installed closer to sensors and actuators, allowing short local wiring while CAN bus handles communication back to the controller.
Yes. Distributed I/O is widely used in construction machinery because it simplifies wiring, improves diagnostics, and supports rugged outdoor environments.
The terms are often similar. In mobile machinery, distributed I/O usually refers to CAN-connected I/O modules placed throughout the machine.
Yes. Many CAN-based I/O modules support PWM outputs for proportional hydraulic valve control.
SAE J1939 is more common in heavy-duty mobile machinery, while CANopen is often used in distributed automation and subsystem-level control.
