Modern construction equipment is becoming increasingly electronic and software-driven. Excavators, wheel loaders, cranes, road machinery, and sanitation vehicles now rely on complex control systems instead of simple mechanical switches.

As machines become more advanced, traditional switch panels create new problems:

• Large wiring harnesses

• Complex installations

• Poor ergonomics

• Limited feedback

• Difficult maintenance

This is why more OEMs are adopting CAN Bus keypads.

A CAN Bus keypad is no longer just a group of buttons. It acts as an intelligent input node that communicates with the vehicle controller through CAN, SAE J1939, or CANopen networks.

More importantly, it significantly improves operator input in construction equipment.

Why Operator Input Matters in Construction Equipment

Construction machinery often operates in difficult environments:

• Dust

• Mud

• Rain

• Vibration

• Noise

• Long working hours

Operators must react quickly while controlling multiple machine functions at the same time.

Poorly designed control panels can lead to:

• Operator fatigue

• Slow response times

• Misoperation

• Reduced productivity

• Increased safety risks

This is why operator input design has become a critical part of modern machine development.

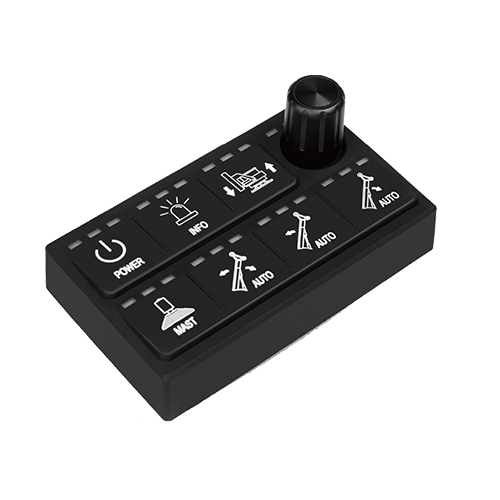

What Is a CAN Bus Keypad?

A CAN Bus keypad is a programmable operator interface device connected to the machine network through CAN communication.

Unlike traditional hardwired switches, CAN keypads do not require separate signal wires for every button.

Instead, button signals are transmitted digitally through the CAN network to the controller.

A typical CAN Bus keypad includes:

• Push buttons

• Microcontroller

• CAN transceiver

• RGB or backlit LEDs

• Sealed rugged housing

Most construction equipment keypads support:

• SAE J1939

• CANopen

• CAN 2.0B

CAN Bus Keypad vs Traditional Switch Panel

Traditional switch panels use point-to-point wiring.

Each switch usually requires:

• Power wire

• Ground wire

• Signal wire

As machines become more complex, the wiring harness becomes larger and more difficult to manage.

CAN Bus keypads simplify this architecture.

How CAN Bus Keypads Improve Operator Input

1. Simplified Control Layout

Construction equipment may control:

• Hydraulic attachments

• Work lights

• PTO systems

• Travel modes

• Auxiliary functions

• Camera systems

Traditional switch panels often become crowded and confusing.

CAN Bus keypads allow OEMs to group functions more logically.

This improves:

• Operator focus

• Input accuracy

• Ease of use

2. Reduced Operator Fatigue

Operators may work for 8–12 hours daily.

Poor button placement increases fatigue and slows reaction time.

Modern CAN keypads improve ergonomics through:

• Larger buttons

• Better spacing

• Tactile feedback

• Glove-friendly operation

• Clear icon layouts

This helps operators work more comfortably and efficiently.

3. LED Feedback Improves Input Confirmation

One of the biggest advantages of CAN Bus keypads is LED feedback.

Traditional switches often provide little or no visual confirmation.

CAN keypads can use:

• RGB backlighting

• Flashing LEDs

• Status indicators

• Warning colors

For example:

This allows operators to understand machine status instantly.

4. Faster Operator Response

Construction machinery operators often cannot look away from the work area for long periods.

LED feedback and grouped controls allow operators to identify machine states quickly without checking multiple displays.

This improves:

• Reaction speed

• Operational safety

• Input confidence

5. Reduced Wiring Complexity

One of the biggest reasons OEMs adopt CAN keypads is reduced wiring.

Instead of running separate wires for every switch, the keypad becomes a single CAN node.

Benefits include:

• Smaller wiring harnesses

• Faster installation

• Reduced weight

• Easier maintenance

• Fewer wiring failures

This is especially important for:

• Excavators

• Cranes

• Road machinery

• Sanitation vehicles

• Agricultural machinery

Integration with HMIs and Controllers

A CAN Bus keypad does not work alone.

In modern construction equipment, the system usually includes:

Example workflow:

1. Operator presses attachment button

2. Keypad sends J1939 CAN message

3. Controller activates hydraulic output

4. HMI displays function status

5. Keypad LED changes color to confirm activation

This creates a smarter and more connected operator interface system.

Common Applications in Construction Equipment

CAN Bus keypads are widely used in:

Excavators

• Attachment control

• Auxiliary hydraulics

• Work mode selection

Wheel Loaders

• Bucket functions

• Lighting systems

• Ride control

Cranes

• Stabilizer control

• Auxiliary functions

• Safety interlocks

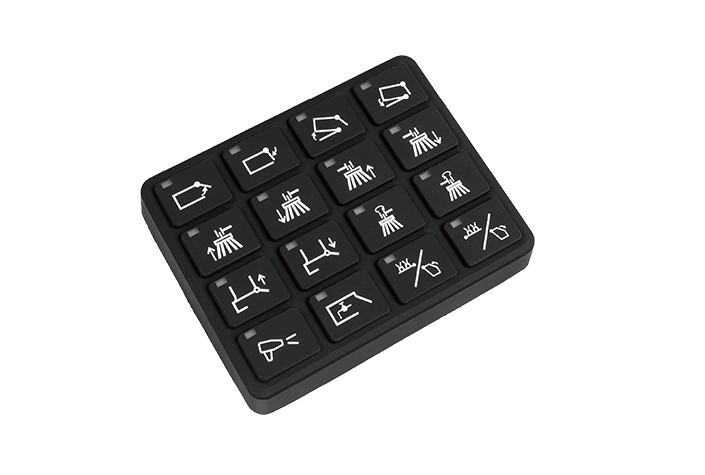

Sanitation Vehicles

• Water spray systems

• Brush controls

• Rear operation panels

Road Machinery

• Asphalt spraying

• Material spreading

• Compaction systems

Common Mistakes When Designing CAN Keypad Systems

1. Choosing Keypad Size Before Defining Functions

OEMs should first define:

• Operator workflow

• Priority functions

• Safety-critical controls

Then choose keypad layout.

2. Ignoring LED Feedback Logic

LED feedback should clearly communicate:

• Active state

• Fault conditions

• Locked functions

• Work modes

Without proper logic, LEDs become confusing instead of helpful.

3. Poor Button Grouping

Critical functions should not be mixed with secondary functions.

Good grouping improves:

• Operator speed

• Muscle memory

• Safety

4. Treating the Keypad as Simple Hardware

Modern CAN Bus keypads are intelligent control nodes.

They should be designed as part of the entire machine control architecture.

What OEMs Should Consider When Selecting a CAN Bus Keypad

Before selecting a keypad, OEMs should evaluate:

• J1939 or CANopen compatibility

• IP67/IP69 protection

• Vibration resistance

• Button customization

• RGB LED support

• Mounting position

• Glove operation

• HMI/controller integration

The best keypad is not simply the one with the most buttons.

It is the one that best matches the operator workflow.

Conclusion

CAN Bus keypads are changing how operators interact with construction equipment.

Their value is not only reducing wiring.

They improve:

• Operator input accuracy

• Ergonomics

• Feedback visibility

• Machine integration

• Maintenance efficiency

Modern construction equipment increasingly relies on connected electronic systems, and CAN Bus keypads have become an important part of smarter machine control architecture.

Instead of acting as simple switches, they now function as intelligent operator input nodes within the machine network.

FAQ

What is a CAN Bus keypad?

A CAN Bus keypad is a programmable input device that communicates with vehicle controllers through CAN networks such as SAE J1939 or CANopen.

Why are CAN Bus keypads used in construction equipment?

They reduce wiring complexity, improve operator ergonomics, provide LED feedback, and integrate easily with machine controllers and HMIs.

How do CAN Bus keypads reduce wiring?

Instead of individual wires for every switch, button signals are transmitted digitally through the CAN network.

What is the difference between J1939 and CANopen keypads?

J1939 is commonly used in heavy-duty and off-highway vehicles, while CANopen is more common in industrial automation applications.

How does LED feedback help operators?

LED feedback helps operators quickly identify active functions, warnings, faults, and machine modes without constantly checking the HMI display.
