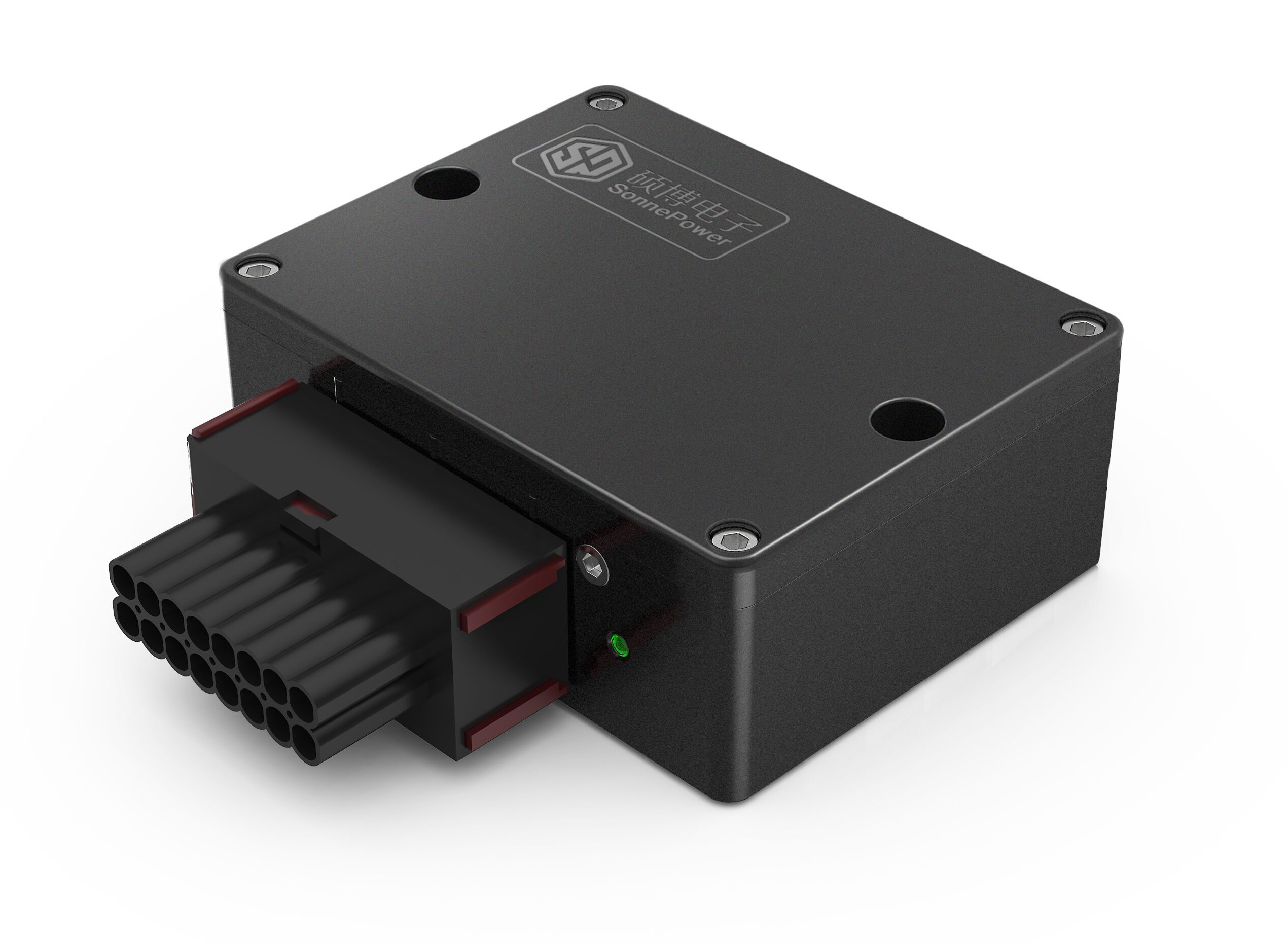

A compact PLC or controllermay fit in the palm of your hand, while the machine it controls could weigh several tons. Excavators lift heavy loads, wheel loaders move large volumes of material, and agricultural machines operate powerful hydraulic systems. How can such a small electronic device control equipment with so much force?
The answer lies in understanding the difference between control signals and power generation.
A PLC or mobile machinery controller does not directly produce the force required to move heavy equipment. Instead, it processes inputs, makes decisions, and sends commands to devices that control much larger sources of energy.
In other words:
The controller provides intelligence, while hydraulic systems, motors, and power circuits provide the force.
This article explains how small PLCs and mobile machinery controllers are able to control heavy equipment through relays, contactors, hydraulic valves, motor drives, and communication networks.
One of the most common misconceptions is that a PLC directly powers motors, cylinders, or hydraulic systems.
In reality, a PLC is primarily a decision-making device.
It receives information from sensors, processes logic based on its program, and sends output signals to other devices.
A typical PLC output may only switch a small current.
That output is then used to control:
Relays
Contactors
Hydraulic valve drivers
Variable frequency drives (VFDs)
Motor controllers
Solenoid valves
Proportional valves
These devices manage the actual power required to move machinery.
Think of the PLC as the brain of the machine rather than its muscles.
Understanding the difference between signal flow and power flow helps explain why controller size has little relationship to machine size.
The signal path handles decision-making.
Sensor
↓
PLC / Controller
↓
Output Signal
↓
Relay / Valve Driver / Motor Drive
The current flowing through this path is relatively small.
The power path provides physical force.
Battery / Hydraulic Pump
↓
Valve / Drive System
↓
Hydraulic Cylinder / Motor
↓
Machine Movement
This path may involve hundreds of amps of electrical current or thousands of PSI of hydraulic pressure.
The PLC controls the process without directly carrying that power.
Every control system begins with inputs and outputs.
The controller receives information from devices such as:
Limit switches
Pressure sensors
Position sensors
Temperature sensors
Joysticks
Emergency stop switches
These signals tell the controller what is happening on the machine.
For example, a pressure sensor may indicate that a hydraulic cylinder has reached a certain load.
After processing the information, the controller sends commands through outputs.
Outputs may control:
Relays
Solenoid valves
Hydraulic valve drivers
Contactors
Indicator lights
Motor drives
The controller itself does not generate machine motion. It simply tells other devices what to do.
One of the simplest examples of this principle is relay control.
A controller output may only provide enough current to energize a relay coil.
Once energized, the relay can switch a much larger electrical load.
A controller output:
24V DC
0.5A
Relay-controlled circuit:
24V DC
20A
The controller never handles the 20A load directly.
Instead, it controls the relay, and the relay controls the load.
The same concept applies to contactors used for larger motors and industrial equipment.
This is one reason why small PLCs can control large machines safely and reliably.
Hydraulic systems are commonly used in:
Excavators
Wheel loaders
Cranes
Agricultural equipment
Aerial work platforms
Sanitation vehicles
In these machines, the controller often manages hydraulic valve operation rather than directly controlling hydraulic force.
For simple hydraulic functions, a controller may activate a solenoid valve.
Example:
Button Pressed
↓
Controller Output
↓
Solenoid Valve Energized
↓
Oil Flow Starts
↓
Cylinder Extends
The controller only sends an electrical signal.
Hydraulic pressure provides the force.
More advanced machines use proportional valves.
Instead of simply turning on and off, these valves allow precise control of:
Flow rate
Pressure
Speed
Direction
This is where PWM control becomes important.
PWM stands for Pulse Width Modulation.
Many mobile machinery controllers use PWM outputs to control proportional hydraulic valves.
Instead of providing a constant voltage, the controller rapidly switches the output on and off.
By changing the duty cycle, the controller adjusts the average current flowing through the valve coil.
20% duty cycle:
Slow cylinder movement
50% duty cycle:
Moderate speed
80% duty cycle:
Fast movement
This allows precise machine control without requiring the controller to directly supply large amounts of power.
The valve regulates hydraulic flow while the hydraulic system provides the force.
Modern machines rarely rely on a single controller.
Instead, they use communication networks such as CAN bus.
A small controller can manage a surprisingly large machine because it communicates with additional devices throughout the system.
These devices may include:
Engine ECUs
Hydraulic controllers
GPS modules
Safety systems
Instead of running dozens of wires back to the main controller, a machine may use remote I/O modules near sensors and actuators.
The architecture becomes:
Controller
↓
CAN Bus
↓
Distributed I/O Module
↓
Sensors and Valves
This reduces wiring complexity while expanding system capability.
As a result, a relatively compact controller can coordinate a very large machine.
Traditional PLCs work well in factory environments.
However, mobile machinery presents additional challenges.
Equipment may be exposed to:
Vibration
Shock
Dust
Moisture
Extreme temperatures
Electrical noise

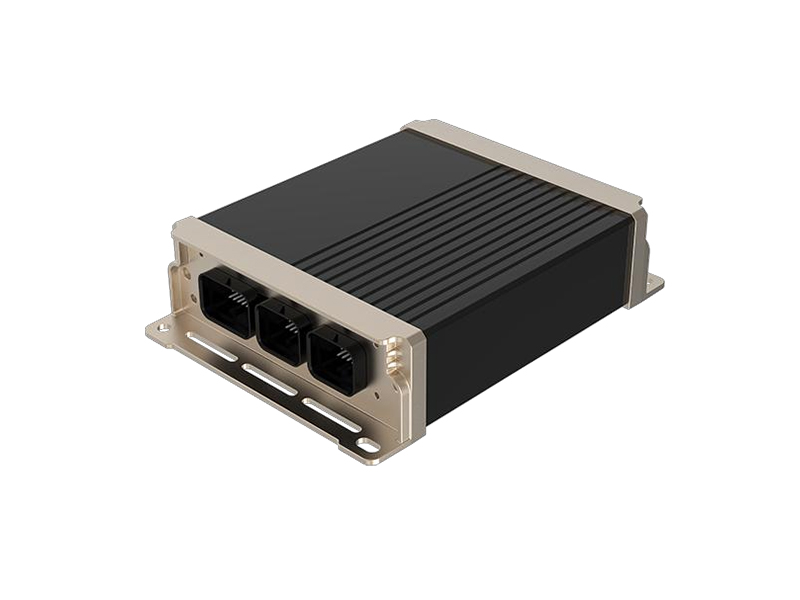

Because of these conditions, many OEMs use dedicated mobile machinery controllers instead of conventional PLCs.
Typical features include:
IP67 protection
CANopen communication
SAE J1939 support
PWM outputs
H-Bridge outputs
Short-circuit protection
Reverse polarity protection
These capabilities are specifically designed for off-highway equipment.
Another reason small controllers can safely manage large machines is the use of safety interlocks.
Heavy machinery often includes:
Emergency stop circuits
Limit switches
Pressure monitoring
Overload protection
Fault diagnostics
The controller continuously monitors these systems and can stop machine functions when unsafe conditions occur.
For example:
Overload Detected
↓
Controller Logic
↓
Hydraulic Valve Disabled
↓
Machine Motion Stopped
The controller's role is not to provide force but to ensure force is applied safely.
Consider a simple excavator lifting operation.
Operator moves joystick.
Joystick signal is sent to the controller.
Controller calculates required boom speed.
PWM output is sent to a proportional hydraulic valve.
Valve adjusts hydraulic oil flow.
Hydraulic cylinder extends.
Boom rises.
Notice that the controller never physically lifts the boom.
It only controls the signals that determine how hydraulic power is used.
Not necessarily.
A machine's size does not determine controller size.
The important factors are:
Number of I/O points
Communication requirements
Control complexity
Safety requirements
The controller supplies signals.
Hydraulic systems, motors, and power circuits supply energy.
Modern controllers can communicate with dozens of devices through CAN networks and distributed I/O systems.
Even compact controllers can manage complex equipment.
A tiny PLC or mobile machinery controller can control heavy machinery because it is responsible for decision-making, not force generation.
The controller receives sensor inputs, processes logic, and sends commands to relays, contactors, hydraulic valves, motor drives, and other devices that manage power.
Hydraulic systems, electric motors, and actuators generate the actual force required to move heavy equipment.
By separating control signals from power delivery, modern control systems allow compact controllers to manage large and complex machines efficiently.
This principle is used every day in excavators, agricultural equipment, sanitation vehicles, aerial work platforms, mining equipment, and countless other off-highway machines.
Understanding this relationship between signals, power, and actuators is the key to understanding how a small controller can successfully control heavy machinery.
