Modern mobile machinery is becoming increasingly intelligent and complex.
Construction equipment, agricultural machines, mining vehicles, and industrial vehicles now integrate more electronic systems, sensors, and automated functions than ever before.
As machine functions increase, operators need a more efficient way to monitor equipment status, control functions, and respond to system information.
Human Machine Interface (HMI) displays provide an important connection between operators and machines by presenting real-time information and enabling intuitive control.
This article explains how HMI displays improve operator experience in mobile machinery and why they are becoming an essential part of modern machine control systems.

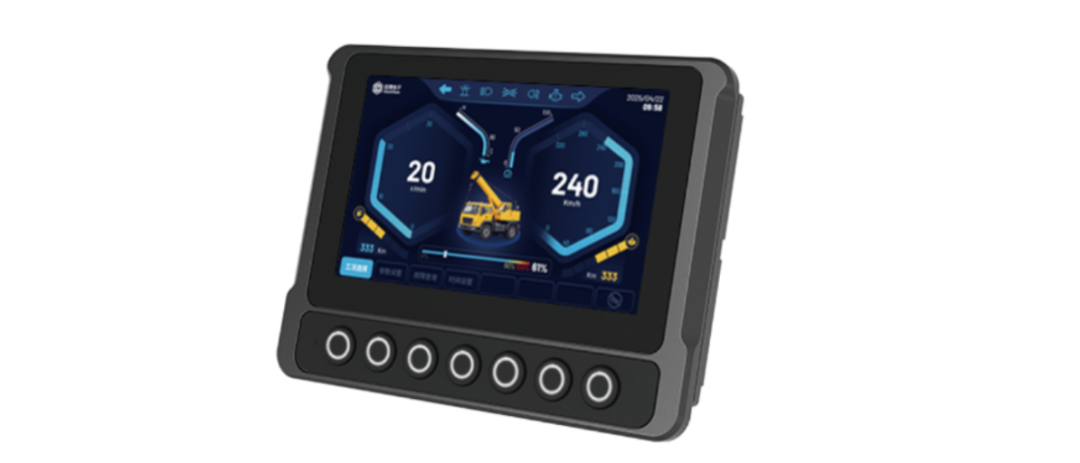

An HMI display is an electronic interface that allows operators to interact with a machine.
It connects with the machine control system and displays important information, including:
Operating parameters
Machine status
Warning messages
Diagnostic information
Control settings
A typical mobile machinery control architecture includes:
Sensors
↓
Controller
↓
CAN Bus / Communication Network
↓
HMI Display
↓
Operator
The HMI acts as the communication bridge between the machine and the operator.
Traditional machines often rely on simple gauges, switches, and indicator lights.
However, modern equipment requires operators to manage more complex functions:
Multiple working modes
Electronic control systems
Automated functions
Safety monitoring
Real-time diagnostics
Without an effective interface, operators may face:
Information overload
Difficult operation procedures
Longer troubleshooting time
Increased risk of errors
A well-designed HMI simplifies machine operation by presenting the right information at the right time.
One of the most important functions of an HMI display is providing real-time machine information.
Operators can monitor:
Engine or motor status
Hydraulic pressure
Temperature
Battery level
Fuel or energy consumption
System warnings
Instead of checking multiple instruments, operators can view critical information on one integrated display.
This improves:
Situational awareness
Operation efficiency
Machine control
Modern HMI displays allow operators to interact directly with machine functions.
Depending on the application, operators can adjust:
Operating modes
Machine parameters
Working settings
System configurations

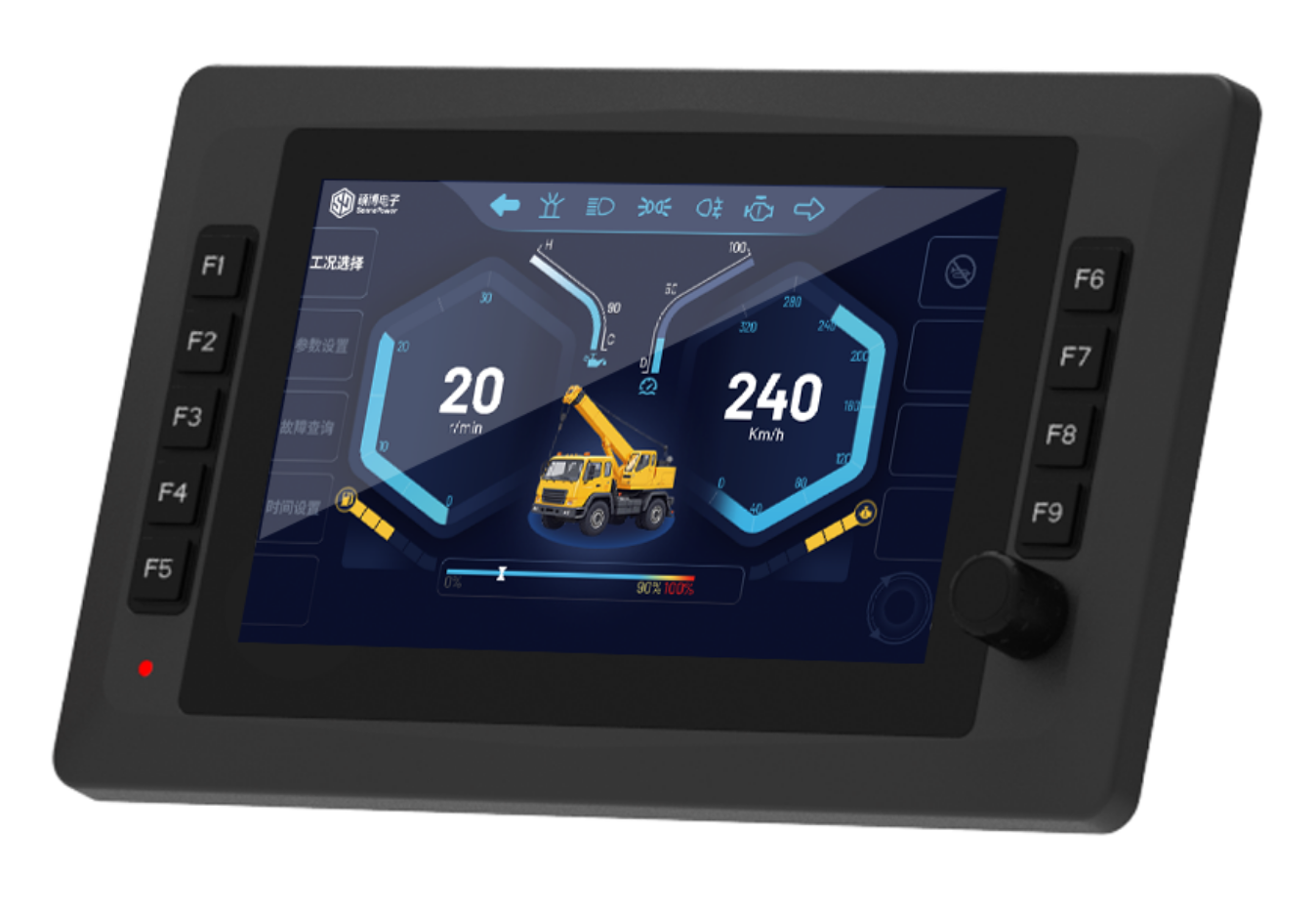

Touchscreen HMI displays provide a more flexible alternative to traditional physical switches.
Benefits include:
Simplified controls
Customizable interfaces
Reduced operator workload
Machine downtime can significantly affect productivity.
Modern HMI systems can display diagnostic information such as:
Fault codes
System warnings
Communication errors
Maintenance reminders
This helps operators and service technicians:
Identify problems faster
Reduce troubleshooting time
Improve maintenance efficiency
For OEM manufacturers, integrated diagnostics also improves after-sales service.
Safety is a critical consideration in mobile machinery.
HMI displays can provide important safety information, including:
Warning alerts
Operating limits
System status
Emergency notifications
For example:
A machine may warn the operator about:
Excessive temperature
Hydraulic pressure issues
Low battery conditions
System faults
Early warnings help operators take action before problems become serious.
Different machines require different information and controls.
A construction machine may need:
Hydraulic parameters
Attachment control
Load information
An agricultural machine may require:
Implement settings
Field data
Automatic functions
An electric vehicle may display:
Battery status
Energy consumption
Charging information
HMI displays allow OEM manufacturers to create customized interfaces based on machine requirements.
Modern HMI displays are not standalone devices.
They communicate with other electronic components through:
CAN Bus
CANopen
J1939
Ethernet
A typical system architecture:
Sensors
↓
Remote I/O Modules
↓
Mobile Controller
↓
CAN Communication
↓
HMI Display
This integrated approach enables:
Centralized monitoring
Reliable communication
Flexible machine control
Mobile machinery often operates outdoors under changing lighting conditions.
Important features include:
High brightness
Wide viewing angle
Clear display performance
Industrial HMI displays must withstand harsh environments.
Key requirements include:
Vibration resistance
Wide operating temperature range
Water and dust protection
Durable housing
Modern HMI systems should support:
CAN Bus
CANopen
J1939
Ethernet
This enables integration with different machine systems.
Examples:
Excavators
Wheel loaders
Cranes
HMI applications:
Machine monitoring
Hydraulic control
Fault diagnostics
Examples:
Tractors
Harvesters
HMI applications:
Precision farming data
Automated functions
Implement control
Examples:
Electric loaders
Industrial vehicles
HMI applications:
Battery monitoring
Energy management
Motor status
As machines become smarter, HMI systems will continue to evolve.
Future HMI displays may include:
More advanced graphical interfaces
AI-assisted operation
Remote diagnostics
Camera integration
Cloud connectivity
The HMI will become more than a display — it will become an intelligent interaction platform between humans and machines.
HMI displays play an important role in improving operator experience in modern mobile machinery.
By providing real-time information, intuitive control, diagnostic support, and customized interfaces, HMI systems help operators work more efficiently and safely.
For OEM manufacturers developing construction equipment, agricultural machinery, mining vehicles, and industrial machines, selecting the right HMI solution is essential for creating intelligent and user-friendly equipment.
SonnePower provides electronic control solutions for mobile machinery, including:
HMI displays
Mobile controllers
Remote I/O modules
CAN communication solutions
Customized control systems
Our solutions help OEM manufacturers develop reliable, intuitive, and scalable machine interfaces for next-generation mobile equipment.
