Modern sanitation vehicles are becoming more complex than ever.
A single street sweeper or garbage compactor truck may include:
Hydraulic valves
Water spray systems
Rear working equipment
Warning lights
Cameras
Sensors
In traditional vehicle architectures, most of these devices connect directly to a central controller through long wiring harnesses.
As more functions are added, wiring systems become:
Larger
Heavier
More expensive
More difficult to maintain
This is one reason why distributed I/O is increasingly used in modern sanitation vehicles.
Instead of routing every signal back to one controller, distributed I/O modules place input and output interfaces closer to the subsystems they control.
The result is simpler wiring, easier maintenance, and improved diagnostics.
Sanitation vehicles operate differently from ordinary trucks.
Besides driving functions, they also manage multiple working systems simultaneously.
Examples include:
Brush control systems
Hydraulic lifting systems
Water spray systems
Rear compactors
Warning lights
Sensor networks
Camera systems
In traditional centralized architectures, signals from all these components must travel through long wiring harnesses back to the main controller.
This creates several challenges:
Large cable bundles
High connector count
Difficult troubleshooting
Longer installation time
Increased risk of electrical failure
These problems become more severe because sanitation vehicles operate in harsh environments involving:
Dust
Moisture
Mud
Vibration
Outdoor exposure
Over time, connectors and wiring harnesses experience stress that may lead to intermittent faults.

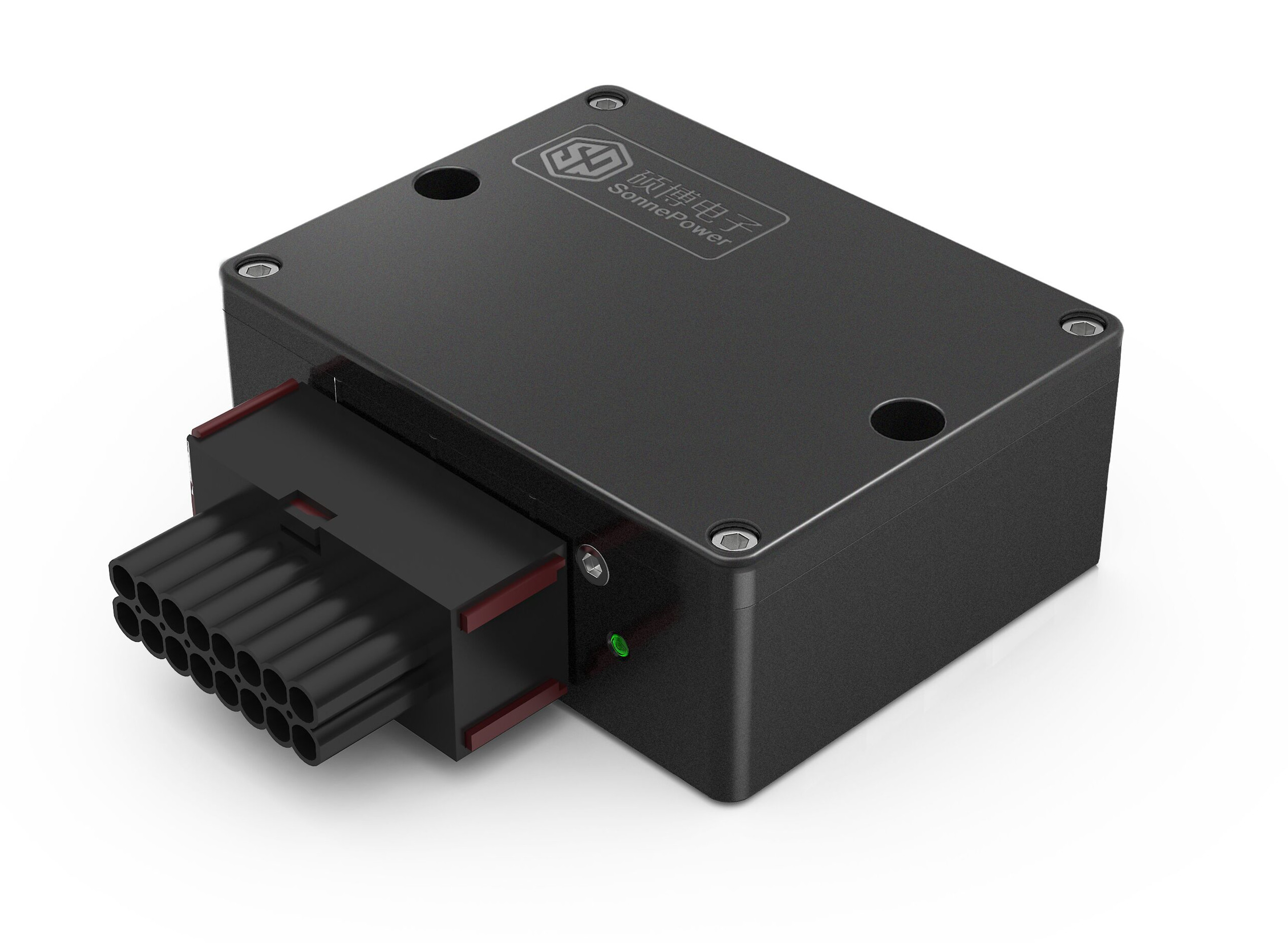

Distributed I/O means placing input and output modules closer to the machine subsystems they control rather than connecting every sensor and actuator directly to a central controller.
Instead of long point-to-point wiring, communication often occurs through CAN Bus networks.
A typical architecture may look like this:
HMI Display
↓
Controller
↓
CAN Bus
↓
Front I/O Module
Rear I/O Module
Hydraulic I/O Module
↓
Sensors / Valves / Lights / Equipment
This architecture reduces the amount of wiring needed across the entire vehicle.
The biggest advantage of distributed I/O is wiring simplification.
A sanitation vehicle may have:
Front equipment:
Brushes
Water spray systems
Rear equipment:
Compactors
Rear sensors
Warning systems
With distributed I/O, front and rear subsystems use local modules instead of sending every signal to the main controller.
This significantly reduces wiring length.
Traditional systems may require dozens of wires running through the vehicle.
Distributed architecture often replaces many signal wires with:
Power supply
CAN communication lines
This creates:
Smaller harnesses
Easier installation
Lower material costs
Every connector is a potential failure point.
By reducing connector quantity, distributed I/O may improve reliability in harsh environments.
This is important because moisture and vibration often affect sanitation vehicles.
Hydraulic systems are common in sanitation vehicles.
Examples include:
Hopper lifting
Brush movement
Rear compactors
Container handling
These systems often require:
Pressure sensors
Position sensors
Solenoid valves
Traditional wiring can become complicated.
Distributed I/O allows hydraulic components to connect to nearby modules.
This shortens cable length and simplifies maintenance.
Simplified wiring is only part of the benefit.
Distributed architectures also improve diagnostics.
When a subsystem loses communication, technicians may identify the affected node more quickly.
Examples:
Rear sensor communication failure
Hydraulic module offline
Voltage abnormalities
CAN communication timeout
This reduces troubleshooting time.
Traditional troubleshooting often requires technicians to trace wires manually.
Distributed systems help isolate faults at the subsystem level.
Benefits include:
Reduced downtime
Faster repairs
Lower maintenance costs
For municipal fleets, reducing downtime is extremely important.
The difference between traditional and distributed systems is more than wiring.
It changes the entire maintenance workflow.
| Centralized Architecture | Distributed Architecture |
|---|---|
| Long wiring harnesses | Short local wiring |
| High connector count | Reduced connectors |
| Difficult troubleshooting | Easier diagnostics |
| Heavy cable bundles | Smaller harnesses |
| Harder to scale | Better scalability |
Distributed systems often become more valuable as vehicle complexity increases.
Distributed architecture does not automatically solve all problems.
Poor implementation can reduce benefits.
A common mistake is installing distributed I/O without dividing the vehicle into logical zones.
Typical zones may include:
Cab area
Front equipment
Rear equipment
Hydraulic systems
Without zoning, wiring complexity remains high.
Distributed modules operating near working equipment should have sufficient protection against:
Water
Dust
Vibration
IP67-rated components are commonly preferred.
Improper CAN termination or unstable communication can create diagnostic problems.
Good network design remains essential.
As sanitation vehicles become smarter, electrical architectures become more complex.
Modern systems increasingly rely on:
CAN Bus communication
Electronic controllers
HMI displays
Sensors
Hydraulic controls
Remote diagnostics
Traditional centralized wiring becomes difficult to scale.
Distributed I/O helps manufacturers reduce wiring complexity while improving diagnostics and maintenance efficiency.
The future of sanitation vehicle electronics is not simply adding more functions.
It is creating smarter architectures that simplify integration and improve reliability.
Distributed I/O places input and output modules closer to the subsystems they control, reducing long wiring runs.
It replaces many long signal wires with local modules connected through communication networks such as CAN Bus.
Yes. Distributed systems help technicians identify faults at the subsystem or node level.
Shorter wiring, fewer connectors, and localized modules may improve reliability in environments with vibration, dust, and moisture.
For complex sanitation vehicles with multiple subsystems, distributed architectures often provide better scalability and easier maintenance
