Modern wheel loaders are no longer defined by mechanical performance alone.Today, productivity, operator comfort, safety, and future capabilities all depend on how the control system is architected.
For OEMs, the real challenge is not selecting a controller —it is designing a controller architecture that can coordinate multiple functions while remaining scalable and maintainable.
In many projects, teams start by asking:
“Which controller should we use?”
“How many I/O channels do we need?”
But in wheel loaders, these are not the right first questions.
A wheel loader combines:
Traction and driveline control
Electrohydraulic work functions (boom, bucket)
Operator interface and machine settings
Safety and monitoring systems
These functions are tightly coupled.
If the architecture is not designed properly, problems appear later in:
Calibration complexity
System response consistency
Service diagnostics
Future feature integration
A practical OEM architecture typically starts by dividing the machine into functional domains.
Engine torque management
Transmission coordination
Rimpull control
This domain focuses on machine movement and power delivery.
Boom lift and bucket tilt
Attachment control
Load-sensing or electrohydraulic systems
This is the most dynamic part of the machine and directly affects productivity.
Joysticks and pedals
Displayand settings interface
Adjustable machine response
This domain defines how the operator interacts with the machine.
Fault detection
Sensor-based safety logic
Alarms and warnings
This layer ensures safe and predictable operation.

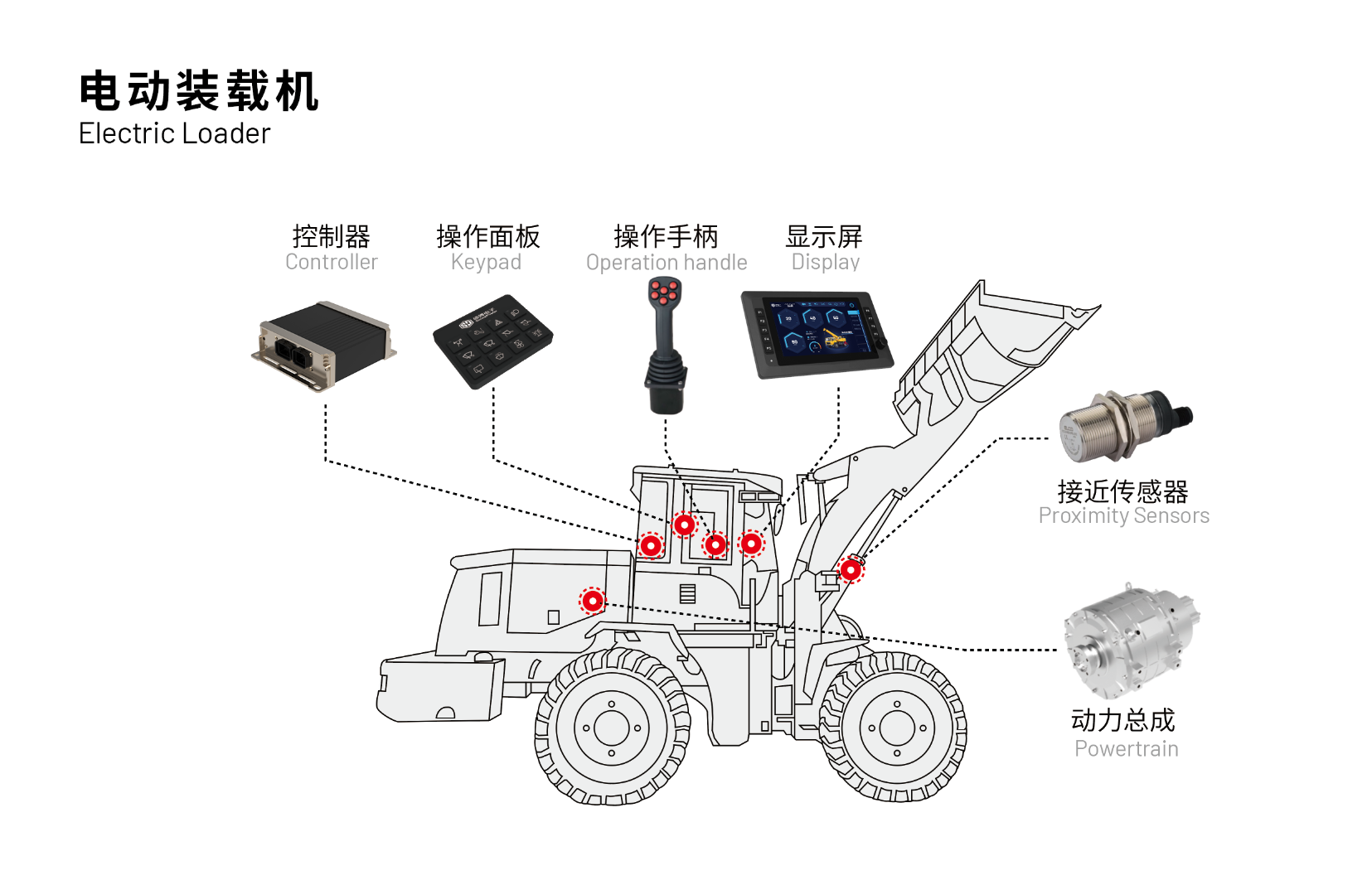

A modern wheel loader is a networked control system, not a single controller.

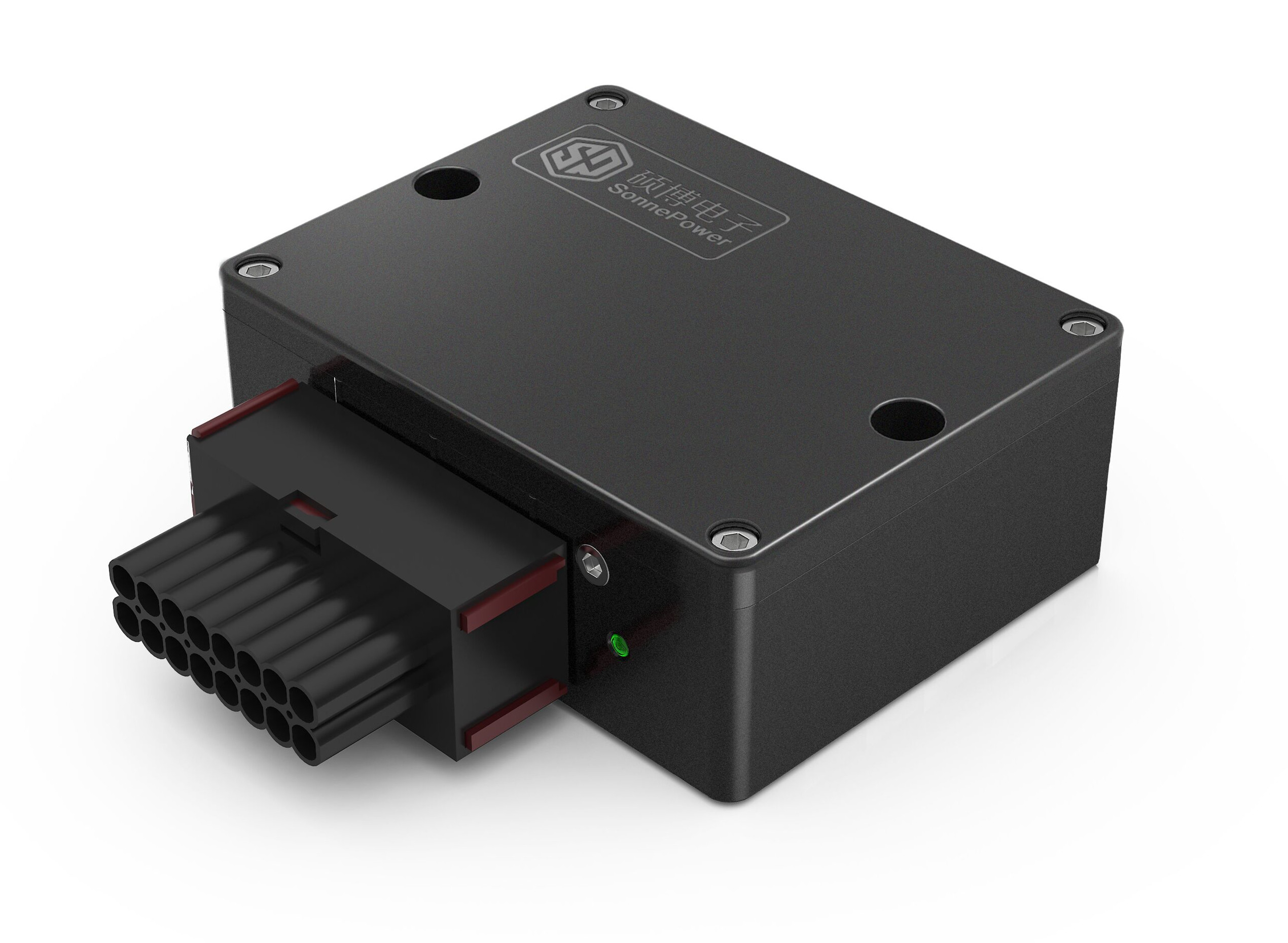

Handles:
Coordination between domains
Global machine logic
Safety-related decisions
Handle:
Hydraulic control
Transmission control
Specialized functions

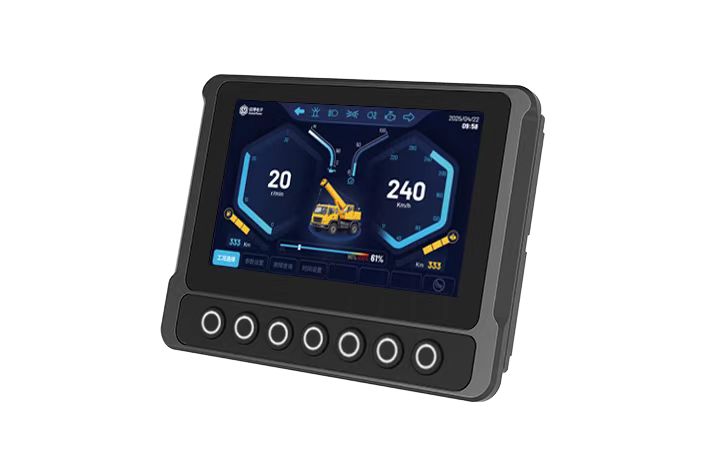

The HMI is not just a screen.
It acts as:
The operator interface
A configuration point for machine behavior
A gateway for diagnostics
Connects all components:
Controllers
Sensors and actuators
This enables:
Real-time data exchange
Modular expansion
Distributed system design
One of the most important OEM decisions is:
How much control should be centralized?
Advantages:
Simpler system design
Fewer controllers
Limitations:
High software complexity in one unit
Difficult to scale
Harder to isolate faults
Advantages:
Clear functional boundaries
Better scalability
Easier integration of new features
Limitations:
Requires careful communication design
More components to manage
The goal is not “more controllers” or “fewer controllers”.
The goal is:
Correct functional boundaries between domains
As more features are added:
Adjustable hydraulic response
Operator modes
Automation assistance
The calibration workload increases significantly.
Poor architecture leads to:
Long calibration cycles
Inconsistent machine behavior
Difficult tuning across machine variants
A well-designed architecture simplifies:
Parameter tuning
Software reuse
System validation
Many architectures work well in development but fail in real service conditions.
Common problems:
Faults spread across multiple systems
No clear diagnostic path
Long troubleshooting time
A better architecture enables:
Clear fault isolation
Module-level diagnostics
Faster field repair
For OEMs, this directly affects:
Downtime
Service cost
Customer satisfaction
Wheel loaders are evolving rapidly.
New requirements include:
Remote operation
Electrification
Operator assistance systems
Semi-autonomous functions
If the architecture is not prepared:
Adding these features becomes expensive and complex.
A future-ready architecture should:
Allow modular expansion
Support higher data exchange
Keep domains loosely coupled
Choosing controllers before defining domains leads to poor structure.
HMI should be part of the control logic, not just a display.
This creates unpredictable machine behavior.
Fixing this later is costly and time-consuming.
A more effective approach is:
Define functional domains
Identify interactions between domains
Decide what must be tightly coupled
Design communication over CAN/J1939
Plan for calibration and diagnostics early
This creates a system that is:
Easier to scale
Easier to maintain
Ready for future features
Controller architecture is the foundation of a modern wheel loader.
It determines:
How well different systems work together
How easy the machine is to control
How complex it is to maintain
How ready it is for future upgrades
For OEMs, the goal is not to choose the most powerful controller.
It is to design a balanced architecture that aligns functionality, control logic, and system structure.
If you are developing wheel loader platforms or upgrading control systems, a well-designed controller architecture is critical for long-term performance and scalability.
SonnePower provides controllers, HMI displays, keypadsand I/O modules designed for mobile machinery, supporting CAN-based architectures and flexible system integration.
Contact us to discuss your application or architecture design.
