Modern sanitation trucks operate in some of the harshest environments for vehicle electronics.
Unlike ordinary road trucks, sanitation vehicles must handle:
Dust
Mud
Moisture
High vibration
Frequent stop-and-go operation
Hydraulic equipment movement
Outdoor exposure
These conditions place heavy stress on electrical systems.
As sanitation trucks become more advanced, they also rely on:
CAN Bus communication
Sensors
Hydraulic control systems
When electrical failures occur, diagnosing the problem can become difficult and time-consuming.
This is one reason why CAN diagnostics has become increasingly important in modern sanitation vehicles.
Instead of manually tracing wires across the entire truck, CAN-based diagnostics can help technicians identify communication problems, subsystem failures, and intermittent faults more efficiently.
Sanitation trucks operate differently from normal commercial vehicles.
Many electrical systems are constantly exposed to harsh operating conditions.
Rear working equipment often experiences:
Continuous vibration
Water spray
Dirt accumulation
Hydraulic movement
Repeated connector stress
Over time, these conditions may lead to:
Loose connectors
Wiring harness damage
Corrosion
Sensor communication loss
Intermittent CAN Bus faults
In many cases, the problem is not a completely failed ECU.
Instead, the issue may only appear:
During vibration
In rainy weather
While hydraulic equipment is moving
Under high electrical load
This makes troubleshooting more complicated than ordinary electrical repair.

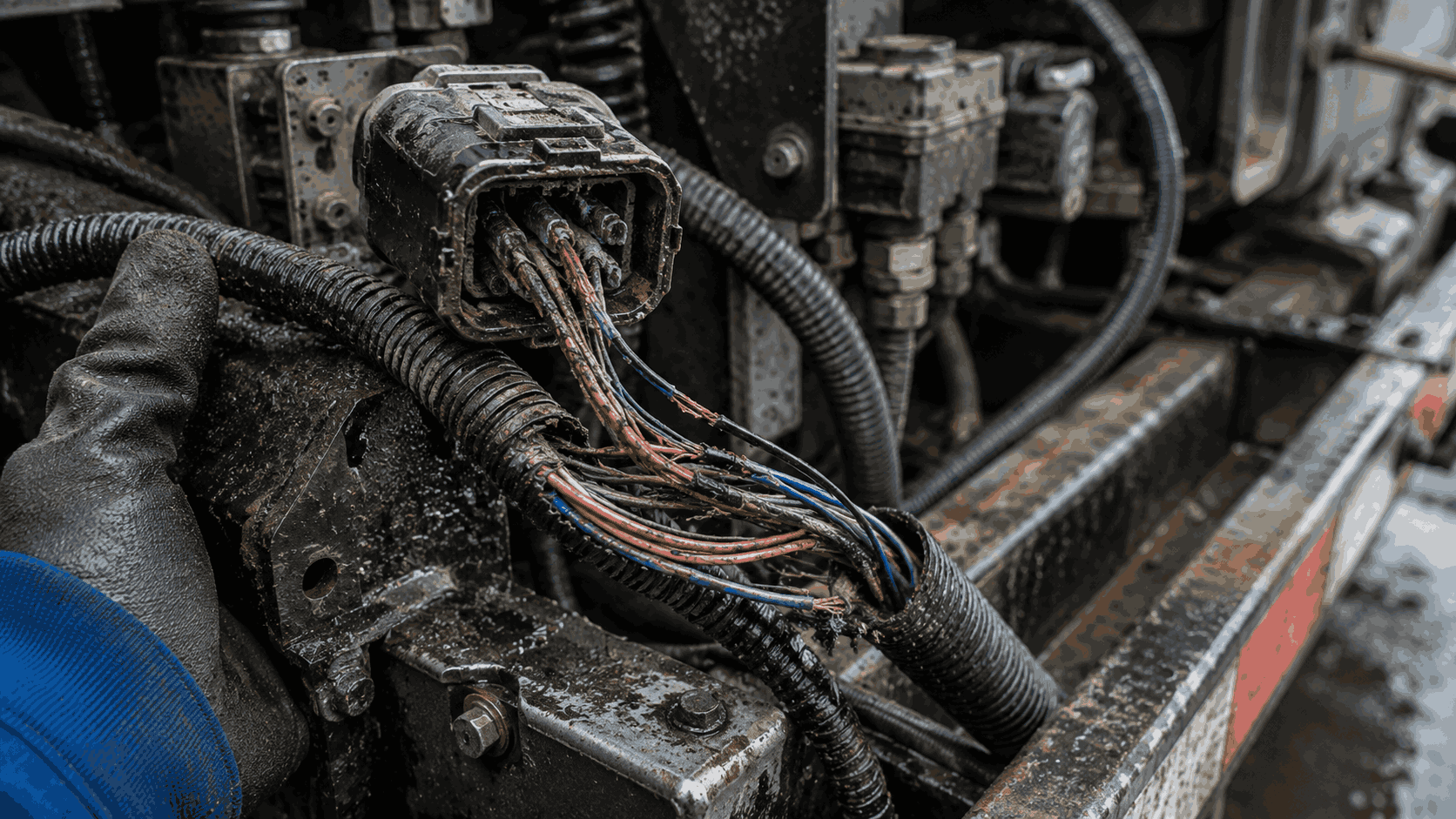

One of the most common sources of electrical failure is the wiring harness.
Sanitation trucks often contain long harnesses running between:
The cab
The chassis
Rear working equipment
Hydraulic subsystems
Over time, these harnesses may develop problems.
Repeated vibration can cause harnesses to rub against metal surfaces.
This may eventually damage wire insulation or break conductors inside the harness.
Some faults only appear while the vehicle is moving, making them difficult to reproduce during workshop inspection.
Moisture and dirt can enter poorly protected connectors.
This may cause:
Corrosion
Increased resistance
Unstable communication
Intermittent power loss
Rear equipment connectors are especially vulnerable because they are frequently exposed to water and debris.
Long cable runs may also create voltage drop issues.
When voltage becomes unstable, electronic modules may:
Reset unexpectedly
Lose communication
Trigger warning alarms
This is particularly common when multiple hydraulic or lighting systems operate simultaneously.

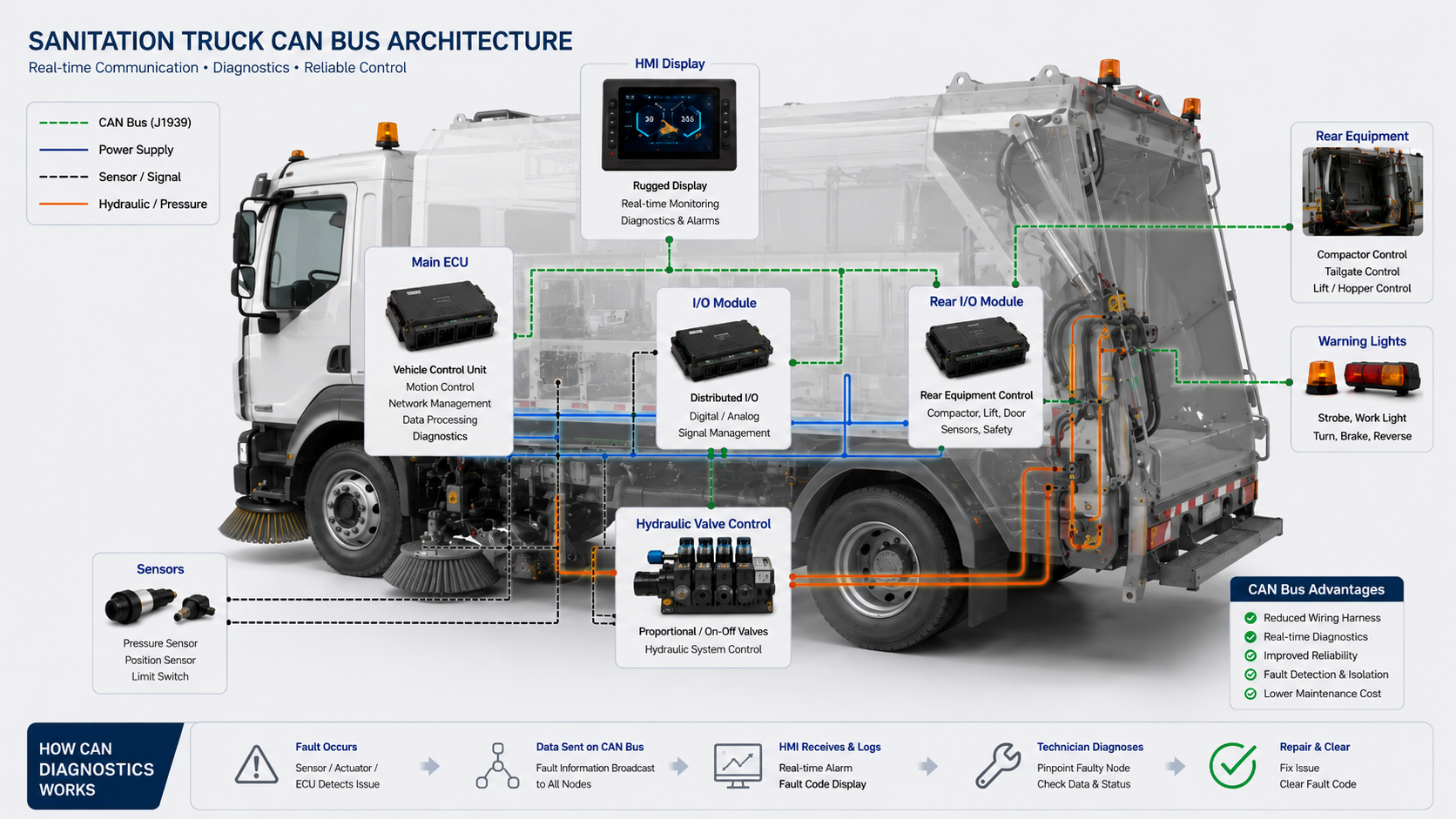

Modern sanitation trucks increasingly rely on CAN Bus networks to connect controllers, displays, sensors, and hydraulic systems.
When communication problems occur, multiple subsystems may be affected at the same time.
Incorrect CAN termination is one of the most common communication issues.
If termination resistance is incorrect, the network may experience:
Unstable communication
Message collisions
Intermittent signal loss
In long vehicle harnesses, proper CAN termination becomes especially important.
CAN networks rely on stable voltage levels between CAN_H and CAN_L.
Electrical noise, grounding problems, or damaged wiring may create abnormal voltage conditions.
This can lead to:
Communication timeout
Lost messages
Random subsystem faults
A controller may appear “offline” even when the ECU itself is not damaged.
Possible causes include:
Connector contamination
Wiring damage
Poor grounding
Power instability
Intermittent harness movement
Replacing the ECU too early can waste both time and cost.
Hydraulic systems in sanitation trucks often depend on electronic control signals.
When communication becomes unstable, operators may notice:
Delayed hydraulic response
Random valve behavior
Rear equipment malfunction
Inconsistent actuator movement
Hydraulic valves may receive incorrect or delayed control signals due to:
CAN communication instability
Wiring resistance changes
Connector corrosion
In some cases, the hydraulic system itself is healthy, but the electrical signal controlling it is unstable.
Pressure sensors, level sensors, and position sensors may temporarily lose communication with the controller.
This can trigger:
HMI warning alarms
Fault codes
Unexpected shutdowns
Intermittent sensor faults are especially difficult to diagnose manually.
Rear compactors, sweepers, and lifting systems often use multiple sensors and controllers.
Because these systems constantly move and vibrate, rear communication problems are common.
Symptoms may include:
Rear equipment not responding
Random alarms
Communication timeout
Temporary subsystem shutdown

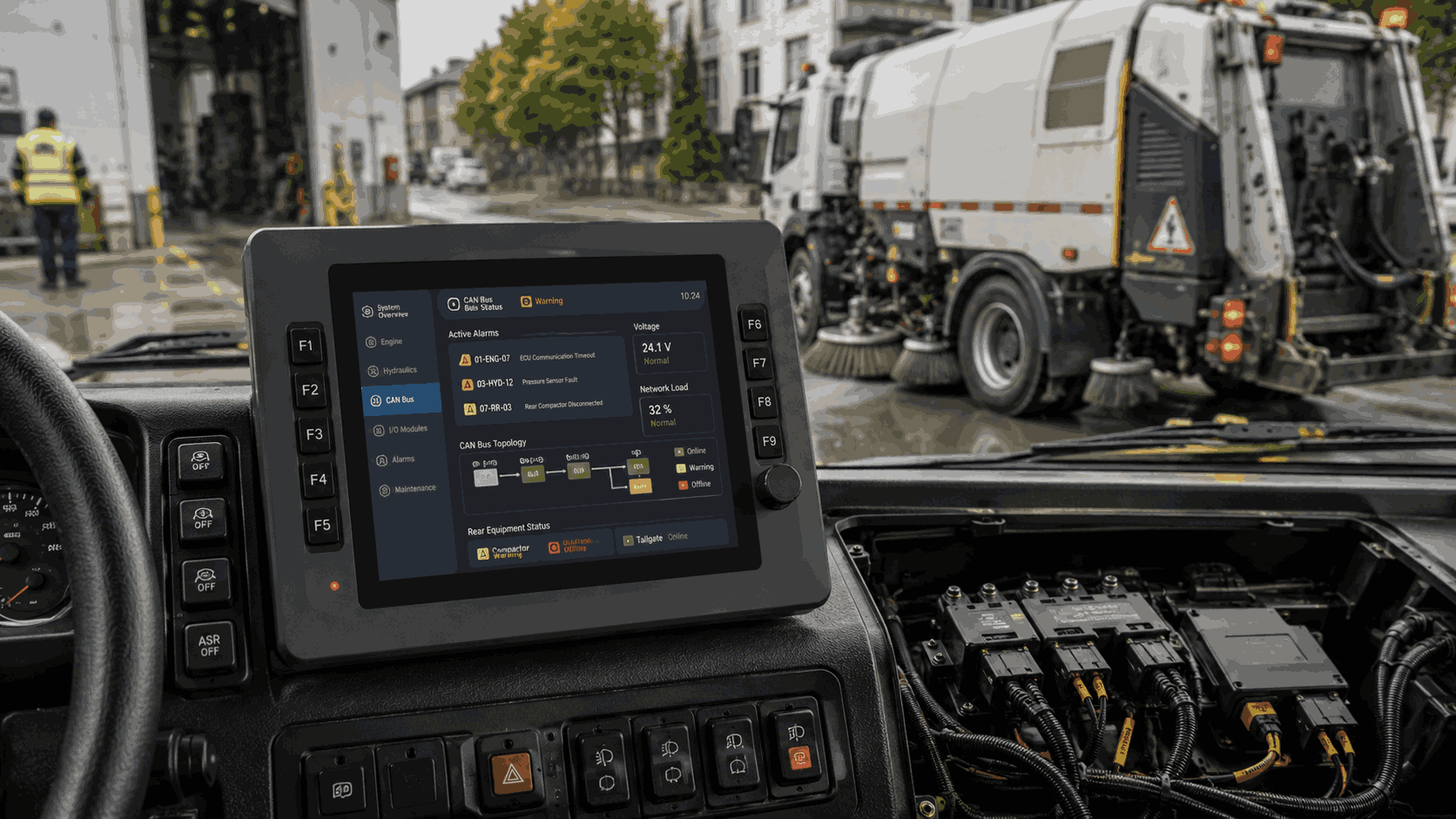

Modern HMI displays are no longer simple operator screens.
They also function as diagnostic interfaces.
Operators and technicians can use HMI displays to monitor:
Alarm messages
Fault codes
CAN communication status
Sensor warnings
Hydraulic system alarms
This helps reduce troubleshooting time.
When communication problems occur, the display may show:
CAN timeout warnings
Sensor communication errors
ECU offline alarms
Voltage abnormality alerts
These messages help technicians narrow down the possible fault area.
Some advanced HMI systems can monitor network communication status in real time.
This allows technicians to identify:
Missing nodes
Unstable communication
Repeated message failures
without manually tracing every wire.
Traditional electrical troubleshooting often requires technicians to manually inspect:
Wires
Relays
Connectors
Voltage levels
This process can be slow and labor-intensive.
CAN diagnostics simplifies troubleshooting by identifying faults at the network level.
Modern diagnostic tools can determine which ECU or subsystem is losing communication.
Instead of checking the entire vehicle harness, technicians can isolate the affected node more quickly.
By reading fault codes and communication status, technicians can often reduce troubleshooting time significantly.
This is especially valuable for municipal fleets where vehicle downtime directly affects daily operations.
Faster diagnostics means:
Less repair time
Lower maintenance cost
Higher fleet availability
For sanitation fleets operating daily routes, reducing downtime is extremely important.
Some electrical troubleshooting mistakes can lead to unnecessary repairs.
Many communication faults are caused by:
Connectors
Wiring harnesses
Power instability
CAN termination problems
not failed ECUs.
Replacing controllers before checking the network may waste time and money.
Connector corrosion is extremely common in sanitation vehicles.
Even small amounts of moisture contamination can create intermittent communication problems.
Some failures only occur:
During vibration
While hydraulic systems are moving
In wet conditions
A stationary workshop inspection may not reproduce the fault.
As sanitation trucks become more intelligent, electrical systems become more complex.
Modern vehicles increasingly depend on:
CAN Bus communication
Electronic controllers
Distributed I/O modules
HMI displays
Smart hydraulic systems
Without proper diagnostics, troubleshooting these systems becomes difficult.
CAN diagnostics helps technicians identify faults more quickly, reduce downtime, and improve maintenance efficiency.
For modern sanitation fleets, diagnostics is no longer optional.
It is becoming an essential part of vehicle reliability and operational efficiency.
Common causes include vibration, moisture, connector corrosion, damaged wiring harnesses, voltage instability, and CAN communication problems.
An intermittent CAN fault is a communication problem that appears only under certain conditions, such as vibration, movement, or moisture exposure.
CAN diagnostics helps technicians quickly identify communication failures, fault codes, and subsystem problems without manually tracing every wire.Why does rear equipment lose communication?
Rear equipment often experiences vibration, connector stress, and moisture exposure, which can create intermittent communication failures.
Not always. Many CAN faults are caused by wiring, grounding, connector corrosion, or termination problems rather than a failed ECU.
