Modern construction machinery is becoming increasingly electronic, connected, and software-driven. Excavators, cranes, loaders, road machinery, and sanitation vehicles now rely on complex control systems to manage hydraulic functions, operator interfaces, diagnostics, automation, and remote communication.
As machines become more advanced, choosing the right control system is no longer just about selecting a powerful ECU.
OEMs must now consider the entire machine architecture, including:
CAN Bus communication
Operator interfaces
Remote diagnostics
Future automation upgrades
A well-designed control system improves machine performance, simplifies maintenance, reduces wiring complexity, and prepares equipment for future technologies.
Many people associate “machine control” with GPS grading or 3D excavation systems. While these technologies are important, a modern construction machinery control system is much broader.
It includes the complete electronic architecture that manages how the machine operates, communicates, and responds to operator input.
A typical system includes:
ECU or machine controller
HMI display
CAN Bus network
Sensors and actuators
Joysticks and keypads
Distributed I/O modules
Diagnostic systems
Together, these components control hydraulic systems, engine functions, work modes, safety logic, and operator interaction.

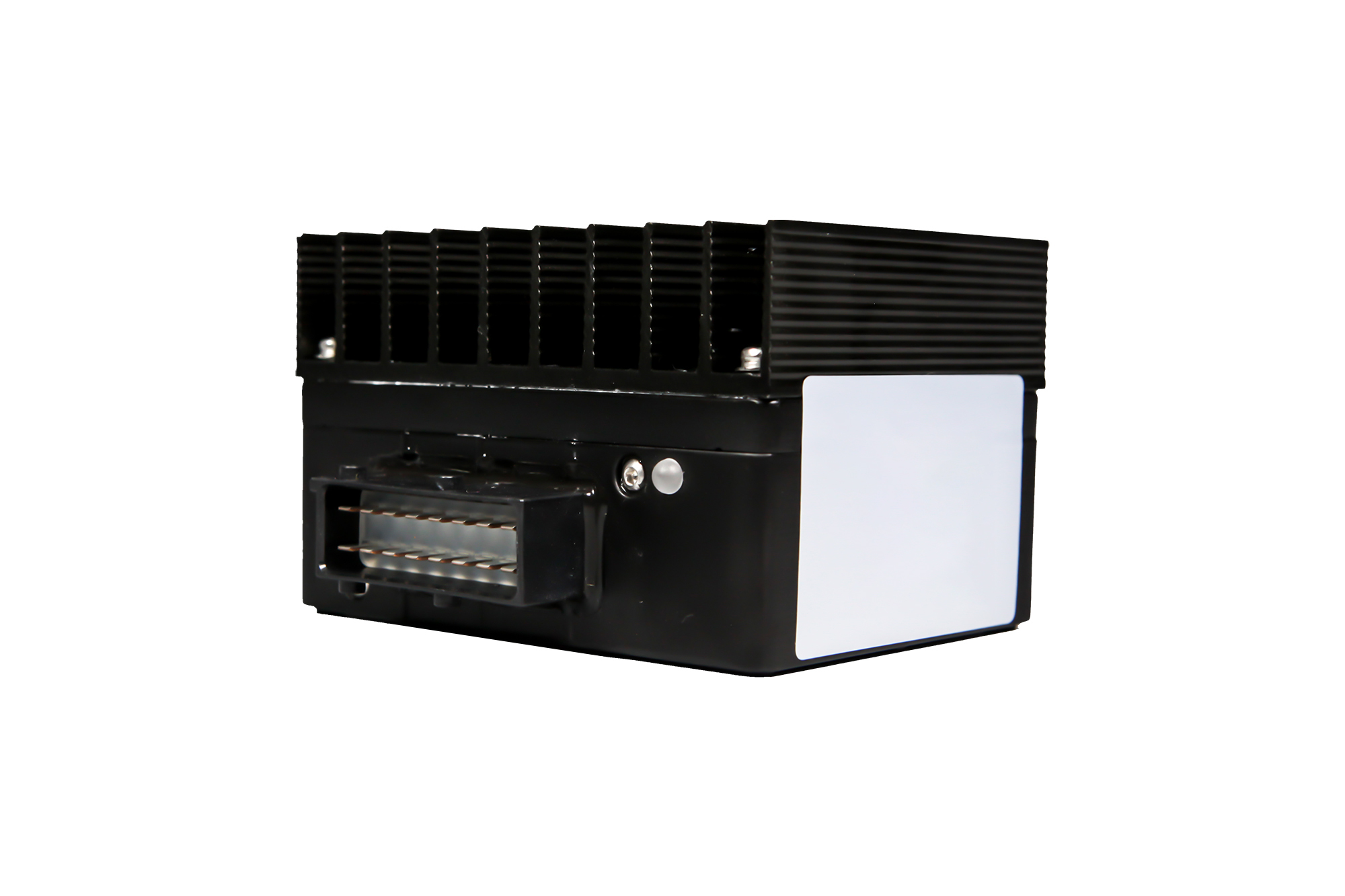

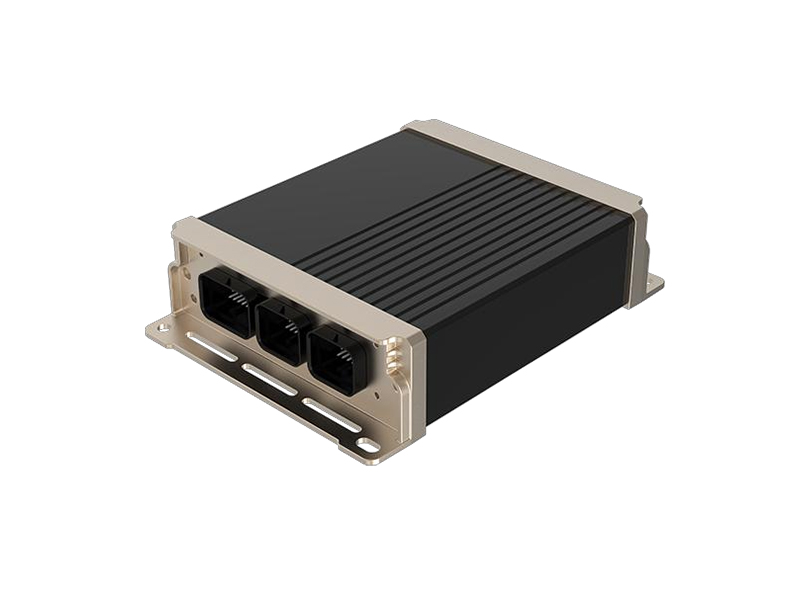

The controller, or ECU (Electronic Control Unit), acts as the brain of the machine.
It processes:
Sensor inputs
Operator commands
Hydraulic logic
Safety functions
CAN communication
Modern controllers are programmable and often support:
SAE J1939
CANopen
Electrohydraulic control
Functional safety features
Choosing the right controller depends on:
I/O quantity
Software flexibility
Processing power
Environmental protection
Expansion requirements
The HMI (Human Machine Interface) is the communication layer between the machine and the operator.
Modern HMIs are no longer simple screens. They now provide:
Machine status
Diagnostics
Camera views
Work mode selection
Fault alarms
Hydraulic monitoring
Operator interfaces may also include:
CAN Bus keypads
Joysticks
Rotary controls
Touchscreens
A good operator interface improves workflow and reduces misoperation.
Modern construction machinery heavily relies on CAN Bus communication.
Instead of connecting every component with separate wires, CAN networks allow devices to exchange data digitally.
Typical CAN-connected devices include:
Controllers
HMIs
Engines
Hydraulic valves
I/O modules
Keypads
Sensors
SAE J1939 is one of the most common protocols in heavy equipment because it standardizes communication between components from different suppliers.
Benefits of CAN Bus architecture include:
Reduced wiring
Easier diagnostics
Better scalability
Faster integration
As machinery becomes more complex, centralized wiring becomes difficult to manage.
Distributed I/O architecture solves this problem.
Instead of routing every signal back to the main controller, remote I/O modules are installed near sensors and actuators.
This provides several advantages:
Smaller wiring harnesses
Reduced installation time
Easier troubleshooting
Better machine scalability
Lower maintenance costs
Distributed I/O is especially useful for:
Excavators
Cranes
Road machinery
Sanitation vehicles
Agricultural machinery
Traditional machinery often used centralized control systems.
In this structure:
All sensors
All switches
All outputs
…connect directly to one main controller.
While simple machines can still use this design, modern equipment often benefits from distributed architecture.
| Feature | Centralized Architecture | Distributed Architecture |
|---|---|---|
| Wiring | Complex | Simplified |
| Expansion | Limited | Easier |
| Maintenance | More difficult | Easier |
| Diagnostics | Limited | Better |
| Scalability | Lower | Higher |
For modern intelligent machinery, distributed systems are becoming increasingly common.
Selecting the correct controller requires more than checking specifications.
OEMs should first define the complete machine architecture.
Key considerations include:
How many:
Analog inputs
Digital inputs
PWM outputs
Hydraulic outputs
…does the machine require?
Future expansion should also be considered.
The controller should support the machine network architecture, including:
CAN Bus
SAE J1939
CANopen
Ethernet communication
Compatibility becomes critical when integrating third-party components.
Construction machinery operates in harsh environments.
Controllers should support:
IP67/IP69 protection
Vibration resistance
Wide operating temperatures
EMC protection
Modern machinery increasingly relies on software-defined functionality.
A flexible controller allows OEMs to:
Modify work modes
Add automation features
Upgrade functions remotely
Improve diagnostics
Without redesigning the hardware.
Even the best controller performs poorly if the operator interface is confusing.
Modern operator interfaces should focus on:
Clear workflow
Reduced distraction
Faster operation
Diagnostic visibility
Better ergonomics
The HMI should not only display machine status.
It should also provide:
Fault information
Service diagnostics
Warning priorities
System monitoring
This helps operators and technicians understand machine conditions quickly.
Modern machines increasingly use:
CAN Bus keypads
Multifunction joysticks
Electronic control panels
These devices improve:
Input accuracy
Operator comfort
Wiring reduction
Functional flexibility
Compared to traditional switches.
Modern control systems are increasingly connected.
Telematics and remote diagnostics now allow OEMs to:
Monitor machine status remotely
Analyze fault codes
Reduce downtime
Improve after-sales support
This is becoming especially important for large fleets and rental equipment.
Future construction machinery will increasingly include:
Semi-autonomous operation
Electrified hydraulic systems
Advanced diagnostics
AI-assisted operation
Predictive maintenance
A scalable electronic architecture makes future upgrades much easier.
Many projects select controllers first and design the system later.
This often leads to:
Compatibility problems
Wiring complexity
Difficult expansion
The architecture should come first.
Trying to route every signal back to one controller increases:
Wiring size
Failure points
Maintenance difficulty
Distributed architecture often provides a cleaner solution.
Modern HMIs are also:
Diagnostic tools
Operator workflow systems
Safety interfaces
Ignoring this reduces usability and maintenance efficiency.
Choosing the right control system for modern construction machinery is no longer only about controller performance.
The real challenge is designing a scalable machine architecture that combines:
ECU performance
CAN communication
HMI integration
Distributed I/O
Diagnostics
Operator experience
Future automation capability
Modern construction machinery is becoming smarter, more connected, and increasingly software-driven.
OEMs that build flexible and scalable control systems today will be better prepared for the next generation of intelligent machinery.
It is the complete electronic architecture that controls machine operation, communication, diagnostics, and operator interaction.
CAN Bus reduces wiring complexity and allows multiple electronic devices to communicate efficiently.
Centralized systems route all signals to one controller, while distributed systems place remote I/O modules closer to sensors and actuators.
HMIs communicate with controllers through CAN Bus or other networks to display machine data, diagnostics, and operator information.
OEMs should consider:
I/O requirements
CAN/J1939 compatibility
Environmental protection
Software flexibility
Future expansion capability
