CAN bus is a widely used communication standard in industrial automation and mobile machinery, but it only defines the physical and data link layers. To achieve true device interoperability, a higher-layer protocol is required to define message formats and device management.
The two most common higher-layer protocols are CANopen and SAE J1939. They share the same CAN physical layer but serve different purposes: the former is widely used in industrial control and embedded systems, while the latter is the dominant standard for commercial vehicles and mobile machinery. This article compares their key differences and offers selection advice to help you choose the right protocol for your system.
What is CANopen?
CANopen is a CAN-based higher-layer communication protocol developed by CiA (CAN in Automation). It provides a standardized communication framework that allows nodes from different manufacturers to work together seamlessly.
Key Features of CANopen
· Object Dictionary: A unified parameter address space for fast access and easy debugging
· PDO (Process Data Object): Cyclic or event-triggered real-time data transmission with low latency
· SDO (Service Data Object): Parameter configuration, calibration, and diagnostics
· NMT (Network Management): Controls node start, stop, and reset for easy network management
· SYNC / EMCY: Synchronization and emergency messages for improved system safety and response time
Advantages of CANopen
· Excellent interoperability: Supports multiple device profiles, compatible across vendors
· Outstanding real-time performance: Enables multi-axis synchronized motion control
· Modular design: Well-suited for distributed I/O and expandable systems
Typical Applications
CANopen is widely used in industrial automation, robotics, medical equipment, and embedded control systems, making it one of the most common higher-layer CAN protocols in these industries.
What is J1939?
SAE J1939 is a set of communication standards developed by SAE (Society of Automotive Engineers) specifically for heavy-duty commercial vehicles, agricultural equipment, construction machinery, and marine power systems. It uses CAN with 29-bit extended frames and defines communication rules from the physical layer up to the application layer, ensuring seamless interoperability between ECUs from different manufacturers.
Key Features of J1939
· PGN (Parameter Group Number): Defines message content and function
· SPN (Suspect Parameter Number): Identifies specific parameters for parsing
· Periodic Broadcast Communication: ECUs send status messages cyclically, prioritized by message arbitration
· Diagnostics & Fault Management: Supports DM1 (active fault), DM2 (historical fault), and warning lamp status for easier maintenance
Advantages of J1939
· Highly standardized: Used across engine, transmission, ABS, dashboard, and body control systems, supporting multi-vendor interoperability
· Ideal for multi-ECU vehicle networks: Reduces wiring complexity and lowers vehicle development cost
· Built-in diagnostics: Provides standardized fault code reading and maintenance interface, ideal for fleet management
Typical Applications
SAE J1939 has become the industry standard for trucks, buses, agricultural machinery, construction equipment, military vehicles, and marine power systems. It is the backbone of ECU networking and remote diagnostics in the commercial vehicle industry.

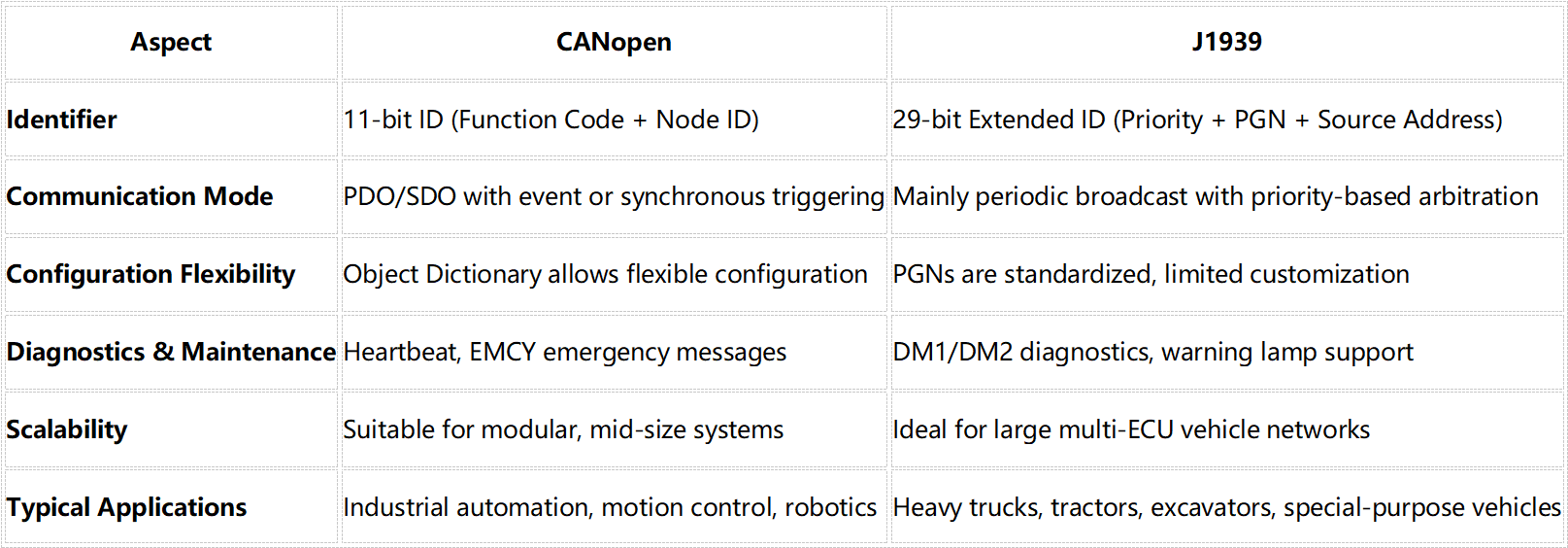

Key Differences Between CANopen and J1939
When to Use CANopen
Choose CANopen for:
· High real-time performance and multi-axis synchronization: PDO + SYNC enable coordinated control of servos, stepper motors, etc.
· Flexible configuration and frequent parameter tuning: SDO allows online parameter adjustment, ideal for commissioning and calibration
· Industrial automation and machine-level control: Widely used in robots, CNC machines, packaging equipment, and medical instruments
When to Use J1939
Choose SAE J1939 for:
· Multi-ECU vehicle networks: Engine, transmission, ABS, dashboard, and body controllers communicate via J1939
· Periodic status broadcasting: Transmit engine speed, oil temperature, hydraulic pressure, and vehicle speed for dashboards and telematics
· Compliance with regulations and diagnostics: DM1/DM2 support, OBD emission compliance, and fleet maintenance requirements
Hybrid Solution: J1939 + CANopen Together
In modern mobile machinery and industrial systems, hybrid architectures are increasingly common:
· Vehicle backbone uses J1939: Handles communication and diagnostics for engine, transmission, chassis, and dashboards, ensuring compliance
· Subsystems use CANopen: Drives hydraulic valves, actuators, and sensors with high precision and low latency
· Gateway bridging: A J1939↔CANopen gateway or multi-protocol controller maps data between networks, ensuring compatibility and performance
This approach combines J1939’s standardization and diagnostic capability with CANopen’s real-time performance and flexibility — ideal for applications like agricultural machinery, construction equipment, and port logistics machines.
SonnePower CANopen & J1939 Solutions
SonnePower offers controllers and distributed I/O modules that support both CANopen and J1939, allowing OEMs to easily implement either protocol or a hybrid architecture.
Product Highlights:
· Dual-protocol support: Switch between CANopen and J1939 based on project needs
· Multiple channel counts: 8, 11, 26, and 32-channel modules available
· IP67 protection: Rugged design for harsh outdoor environments
· Built-in diagnostics: Heartbeat monitoring, error codes, and J1939 DM messages
Take Action: Contact Us or Request a Sample to test how SonnePower dual-protocol modules can simplify your design.
Conclusion
Both CANopen and J1939 are mature, reliable CAN-based higher-layer protocols, but they target different use cases. CANopen is ideal for modular, real-time control in industrial systems, while J1939 is the industry standard for vehicle networks that require interoperability and diagnostics.
Choosing the right protocol reduces integration complexity, improves reliability, and lowers long-term maintenance costs. If your system needs both, a hybrid architecture is a proven solution — and SonnePower products make it easy to implement.
