Modern sanitation vehicles are far more complex than traditional municipal trucks.
A single street sweeper or garbage compactor vehicle may include:
Hydraulic valves
Water spray systems
Vacuum fans
Warning lights
Rear working equipment
Cameras
Sensors
HMI displays
Multiple electronic controllers
In older relay-based electrical systems, many of these devices relied on point-to-point wiring. Every signal often required a dedicated wire running back to the main control cabinet.
As sanitation vehicles added more functions, the wiring harness became larger, heavier, and more difficult to maintain.
This is one of the main reasons why modern sanitation vehicles increasingly use CAN Bus communication and distributed control architecture.
Instead of connecting every device directly to the main controller, CAN Bus allows multiple ECUs, I/O modules, displays, and subsystems to communicate through a shared network.
The result is not only fewer wires, but also better diagnostics, easier maintenance, and improved scalability for modern municipal equipment.
Sanitation vehicles operate much differently from ordinary road vehicles.
Besides driving functions, they also control multiple working systems simultaneously.

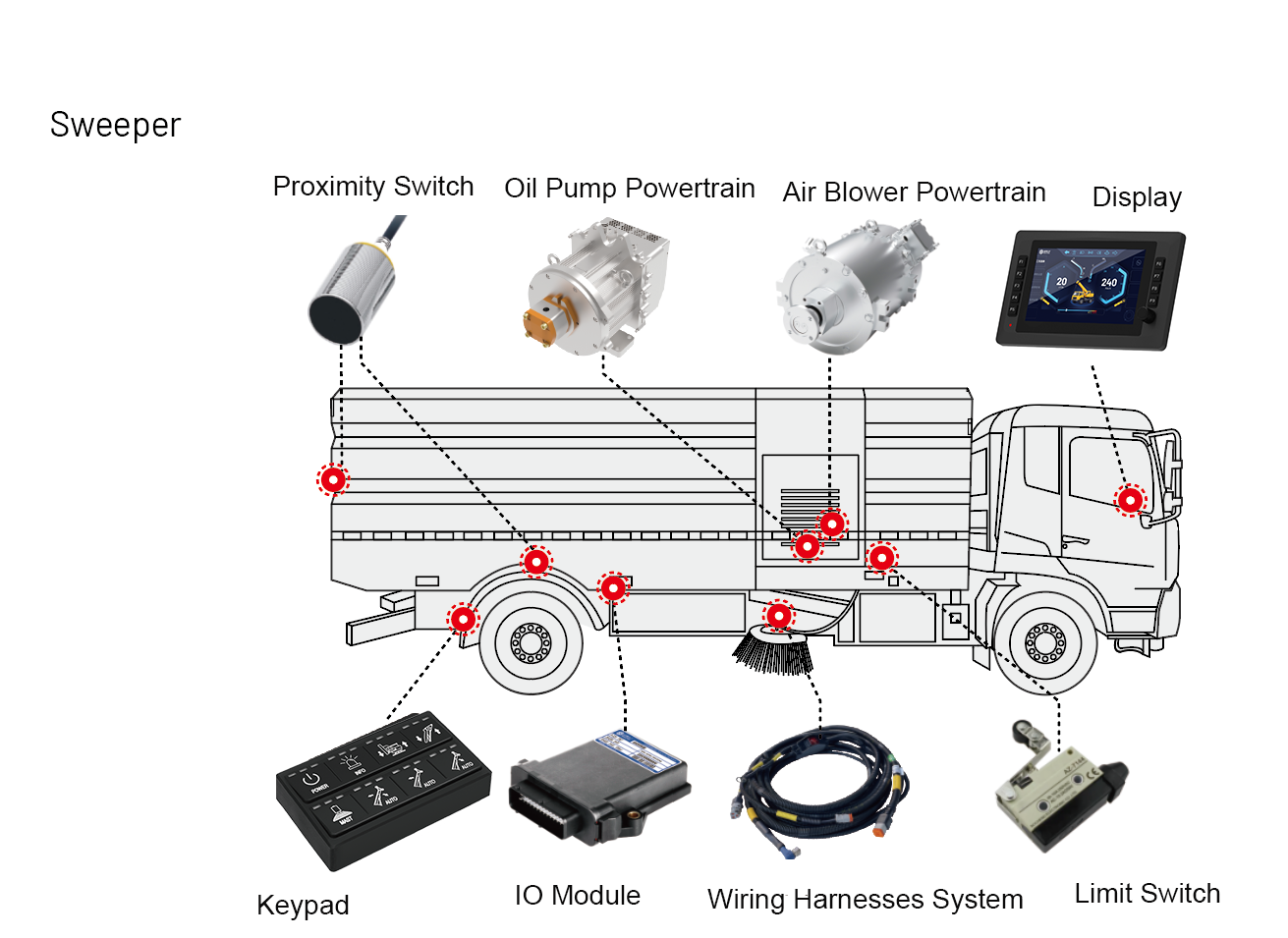

For example, a street sweeper may include:
Brush lifting and lowering
Brush speed control
Water spray control
Vacuum fan operation
Hopper sensors
Rear cameras
Warning lights
Hydraulic pump management
In traditional electrical architecture, these functions often use centralized relay-based wiring.
This means sensors and actuators located at the rear of the vehicle still require long cable runs back to the main controller inside the cab or electrical cabinet.
As more functions are added, the vehicle wiring harness becomes increasingly difficult to manage.
Common problems include:
Large cable bundles
Too many connectors
Long installation time
Difficult troubleshooting
Higher failure rates in harsh environments
This becomes especially problematic in sanitation vehicles because they operate in:
Wet conditions
Dusty environments
High vibration conditions
Frequent stop-and-go cycles
Outdoor temperature fluctuations
Long wiring harnesses and excessive connectors increase the risk of:
Corrosion
Loose connections
Broken wires
Electrical noise interference
Over time, maintenance costs increase significantly.
CAN Bus changes the entire communication structure of the vehicle.
Instead of using dedicated signal wires between every component, CAN Bus allows devices to share data over a common communication network.
The system typically uses:
CAN High
CAN Low
These two communication lines form a differential signaling network that is highly resistant to electrical noise.
In a CAN-based sanitation vehicle, devices such as:
Mobile controllers
HMI displays
Distributed I/O modules
Sensors
Hydraulic controllers
can exchange data through the same network.
For example:
The brush controller does not need a dedicated wire directly connected to the HMI display.
Instead:
The controller sends a CAN message
The display reads the message from the network
The operator sees brush status on the screen
This significantly reduces dedicated signal wiring.
CAN Bus also allows multiple ECUs to communicate simultaneously without adding large numbers of additional wires.

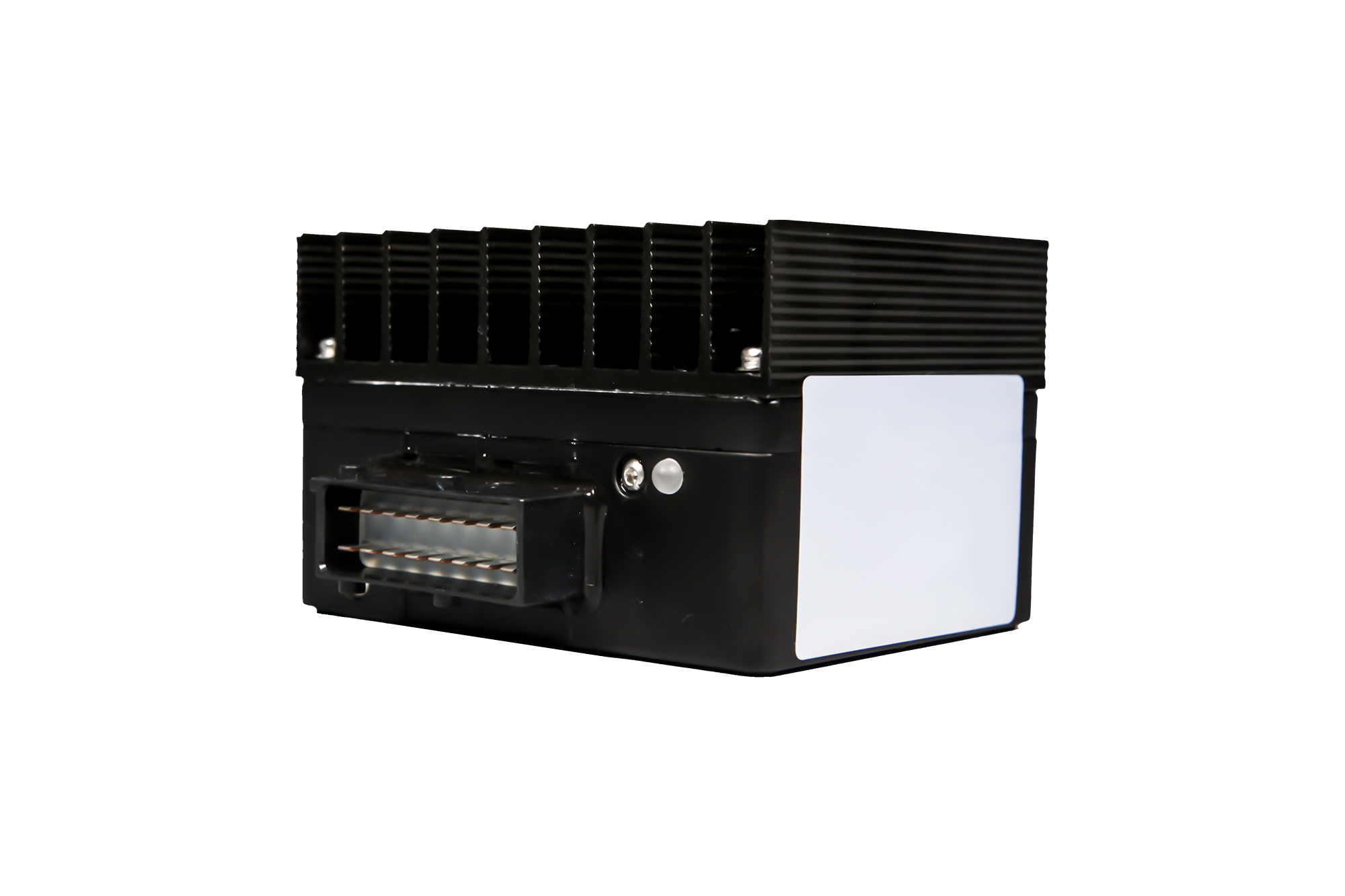

One of the biggest reasons CAN Bus reduces wiring complexity is the use of distributed I/O modules.
In traditional systems:
Every sensor and actuator may require individual wires routed back to the central controller.
In distributed architecture:
I/O modules are placed closer to the subsystems they control.
For example:
A rear-mounted I/O module may control rear lighting and hopper sensors
A hydraulic-zone I/O module may control nearby hydraulic valves
A front-zone module may handle water spray systems and brushes
Instead of running dozens of signal wires across the entire vehicle, only:
power lines
CAN communication lines
need to travel between zones.
This creates several advantages.
Large cable bundles become smaller and easier to route.
Reducing connector count lowers the number of possible failure points.
Vehicle assembly becomes faster because subsystem wiring can be modularized.
Technicians can troubleshoot individual zones instead of tracing wires across the entire machine.
This is particularly valuable in sanitation vehicles where rear working equipment is constantly exposed to vibration, moisture, and debris.
Modern sanitation vehicles often contain multiple electronically controlled subsystems.
CAN Bus helps coordinate communication between them.
Street sweepers often use hydraulic brush systems.
Operators may adjust:
Brush speed
Brush pressure
Lift/lower position
through an HMI display.
Instead of direct wiring between every switch and valve, CAN communication allows these commands to travel digitally across the network.
Water spray systems may include:
Pump control
Water level sensors
Solenoid valves
Flow monitoring
Distributed I/O modules can locally control these devices while sending status data back to the main controller.
Vacuum systems typically require:
Motor monitoring
Hydraulic pressure feedback
Temperature sensors
Safety alarms
CAN communication allows all these signals to be monitored centrally without excessive wiring.
Garbage compactor trucks often include:
Rear operation panels
Safety interlocks
Hopper sensors
Hydraulic sequencing
CAN Bus simplifies communication between rear working equipment and the cab controller.
Warning lights, beacons, and work lights are often distributed across the vehicle.
Distributed control modules reduce the need for long dedicated lighting harnesses.
Reducing wiring is only one advantage of CAN Bus.
Modern sanitation vehicles also benefit from improved diagnostics.
In traditional systems, troubleshooting often requires technicians to:
Physically trace wires
Test relays manually
Check connectors individually
This process can be extremely time-consuming.
CAN-based systems allow faults to be detected at the node level.
For example:
Sensor communication loss
Hydraulic controller failure
CAN communication timeout
Voltage abnormalities
can all be identified digitally.
Modern HMI displays can show:
Warning messages
Diagnostic trouble codes
Communication status
Subsystem alarms
This helps technicians identify problems more quickly.
Faster diagnostics can reduce vehicle downtime and maintenance labor costs.
The biggest difference between traditional and modern architecture is not simply the communication protocol.
It is the system layout.
Characteristics:
Long wiring harnesses
Large relay panels
High connector count
Difficult wire tracing
Heavy cable bundles
Advantages:
Simpler for small systems
Familiar to older maintenance teams
Disadvantages:
Difficult to scale
Poor maintenance efficiency
Higher failure risk in harsh environments
Characteristics:
Distributed I/O zones
Shared communication network
Modular subsystem wiring
Reduced harness complexity
Easier diagnostics
Advantages:
Better scalability
Faster troubleshooting
Reduced installation complexity
Lower overall wiring weight
Disadvantages:
Requires proper network design
CAN termination must be correct
Diagnostic tools are necessary
Some retrofit projects fail because CAN Bus is added without redesigning the electrical architecture.
This is one of the most common engineering mistakes.
Simply replacing relays with CAN controllers does not automatically reduce wiring.
If all sensors and actuators still connect to a central cabinet, the harness complexity remains high.
Effective distributed architecture usually separates the vehicle into zones such as:
Cab zone
Chassis zone
Rear working equipment zone
Hydraulic zone
Lighting zone
Without zoning, the advantages of distributed I/O are limited.
Sanitation vehicles operate in harsh outdoor environments.
Using insufficient connector sealing can lead to:
Moisture ingress
Corrosion
Intermittent communication faults
IP67-rated connectors and modules are often preferred.
Improper CAN termination can cause:
Unstable communication
Data collisions
Intermittent network failures
This is especially important in long vehicle harnesses.
