Distributed I/O Control for Smart Sprayers and Seeders

Distributed I/O Control for Smart Sprayers and Seeders

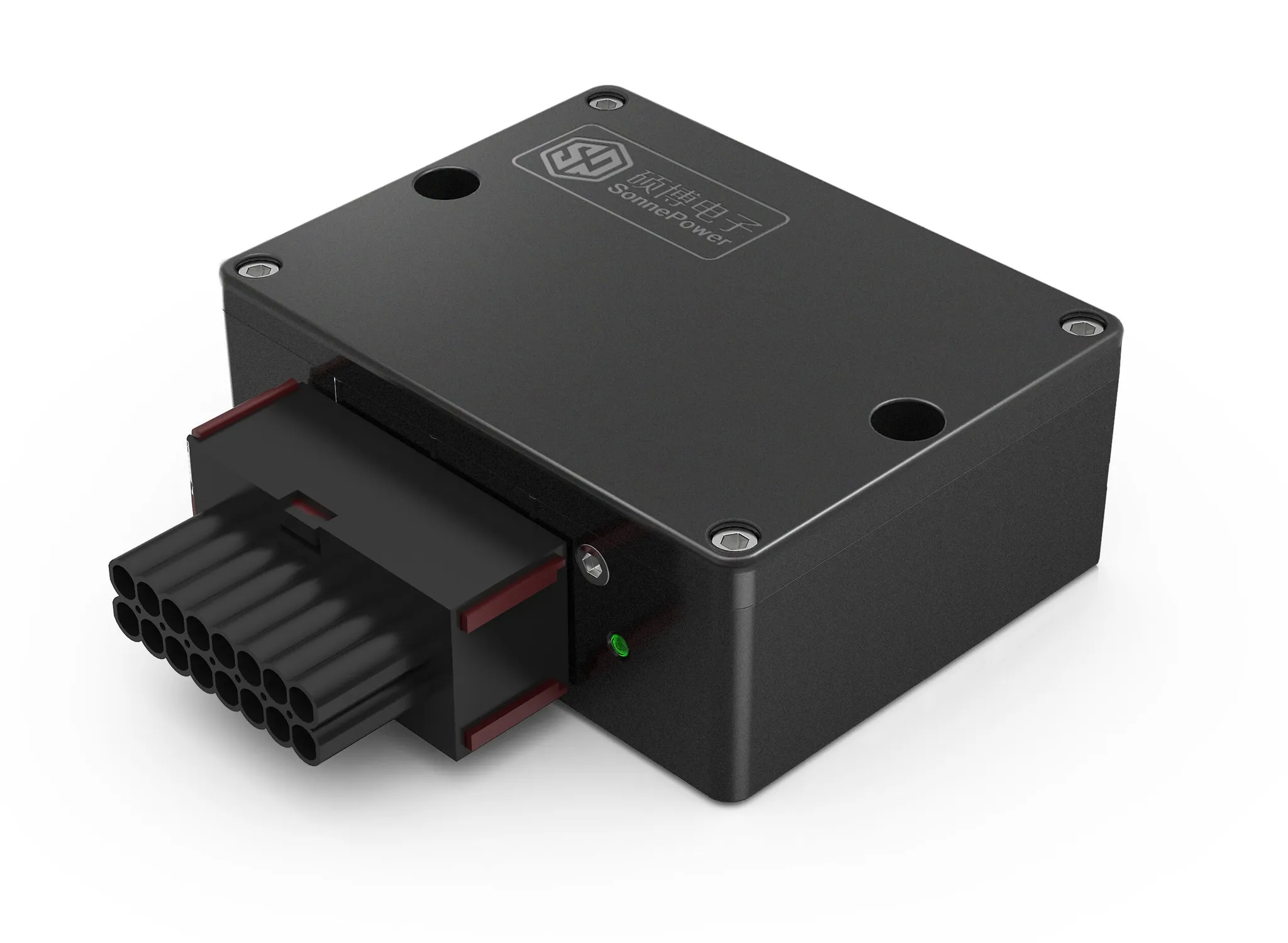

Modern sprayers and seeders are moving beyond single-box control architectures. As these machines become more intelligent, OEMs increasingly need systems that are easier to expand, service, and adapt to precision application. Distributed I/O module helps by placing modules closer to sensors, valves, motors, and section units rather than routing every signal back to one central controller.

For OEMs and system integrators, the value of distributed I/O is not just reduced wiring. The real benefit is a smarter and more serviceable machine architecture that improves expansion flexibility, supports tractor-implement communication, enables more accurate control, and simplifies field diagnostics.

What Is Distributed I/O in Smart Sprayers and Seeders?

Distributed I/O in agricultural machinery means using decentralized input and output modules across the machine instead of concentrating all signal handling in one location. These modules can collect signals from sensors, drive outputs to valves or actuators, and communicate with the main controller over a field network such as CAN bus or an ISOBUS-based architecture.

In practical terms, this allows machine builders to put I/O where it is needed most, such as near boom sections on a sprayer or near row units on a seeder.

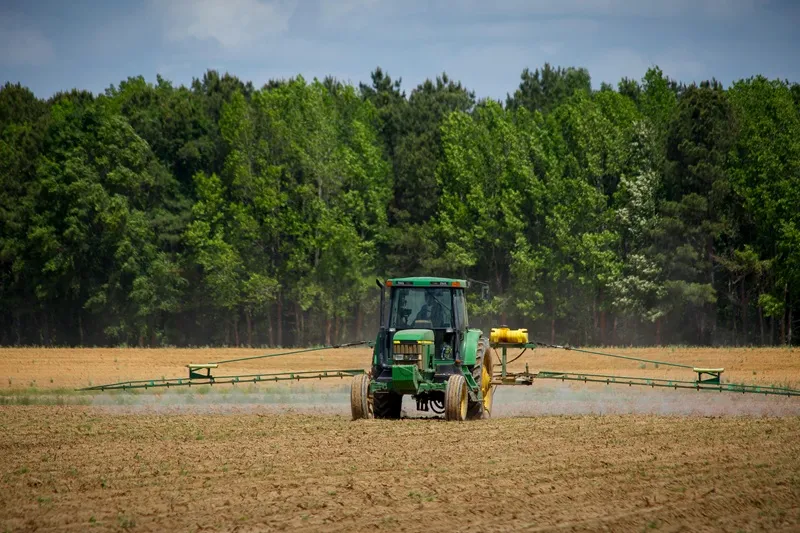

This matters because sprayers and seeders often have repeated machine zones. A sprayer may have many boom sections, valves, and feedback points.

A seeder may have multiple row units, seed sensors, metering controls, and monitoring channels. A centralized layout can quickly become difficult to wire, expand, and troubleshoot. A distributed layout can reduce harness complexity and support a more modular machine design.

Advantages of I/O Modules in Sprayers and Seeders

1.Simplified Wiring

Sprayers and seeders usually have many sensors, valves, motors, and switches distributed across the machine.

I/O modules can be placed closer to these devices, which helps reduce long wiring runs and makes the harness layout cleaner.

2.Better Modular Design

With I/O modules, OEMs can divide the machine into functional zones, such as boom sections on a sprayer or row units on a seeder.

This makes the overall electrical architecture more modular and easier to manage.

3.Easier System Expansion

When the machine needs more spray sections, more row units, or additional functions, I/O modules make expansion easier.

Instead of redesigning the entire control system, manufacturers can often expand the machine by adding more modules or channels.

4.Improved Control Efficiency

I/O modules help connect sensors and actuators more efficiently with the main controller.

This supports faster and more reliable control for functions such as section control, rate control, seed monitoring, and valve actuation.

5.Better Integration with Smart Functions

Modern sprayers and seeders often require CAN bus, ISOBUS, diagnostics, and precision application functions.

I/O modules make it easier to build these smart control systems and connect different parts of the machine into one unified architecture.

Centralized vs Distributed I/O

Key Takeaway

Centralized I/O is suitable for smaller and simpler machines

Distributed I/O is better for machines with more sections, more rows, and more complex control requirements

The main advantage of distributed I/O is not only fewer wires, but also better scalability, modularity, and easier expansion

Where Should I/O Nodes Be Placed?

One of the most practical design questions is node placement. In smart sprayers and seeders, the best location depends on machine layout, signal types, power requirements, and maintenance access.

In general, a good architecture separates roles clearly:

The main controller handles core logic, machine coordination, and higher-level communication.

The distributed I/O nodes handle local signal collection and local output driving near boom sections, row units, valves, or grouped functions.

The HMI or display handles visualization, alarms, setup, and operator interaction.

The ISOBUS communication layer supports tractor-implement interoperability and terminal workflows.

This kind of structure helps prevent two common mistakes: putting too much responsibility into the central controller, or scattering nodes without a clear service and fault-isolation strategy. The goal is not just to place modules physically closer to the machine functions, but to create a system that is easier to understand, easier to commission, and easier to maintain.

How to Choose the Right Distributed I/O Architecture

When selecting a distributed I/O control system for smart sprayers and seeders, a better engineering approach is to ask architecture questions before module questions.

Start with these points:

1.Which signals should stay local?

Inputs and outputs that belong to one repeated machine zone are often good candidates for local node control.

2.What must stay in the main controller?

Higher-level coordination, safety-related functions, and machine-wide logic usually belong in the main controller.

3.How will the system expand later?

If the machine may grow from fewer sections to more sections, or from fewer rows to more rows, the architecture should support that without major rewiring.

4.How will the machine communicate with the tractor?

ISOBUS, Virtual Terminal compatibility, Task Controller support, and CAN network design should be planned early, not added later.

5.How will diagnostics work in the field?

Technicians should be able to isolate faults by node or function rather than tracing the entire machine.

6.Is the system built for agricultural conditions?

Durability, connectors, power stability, and environmental protection matter just as much as control logic in off-highway equipment.
