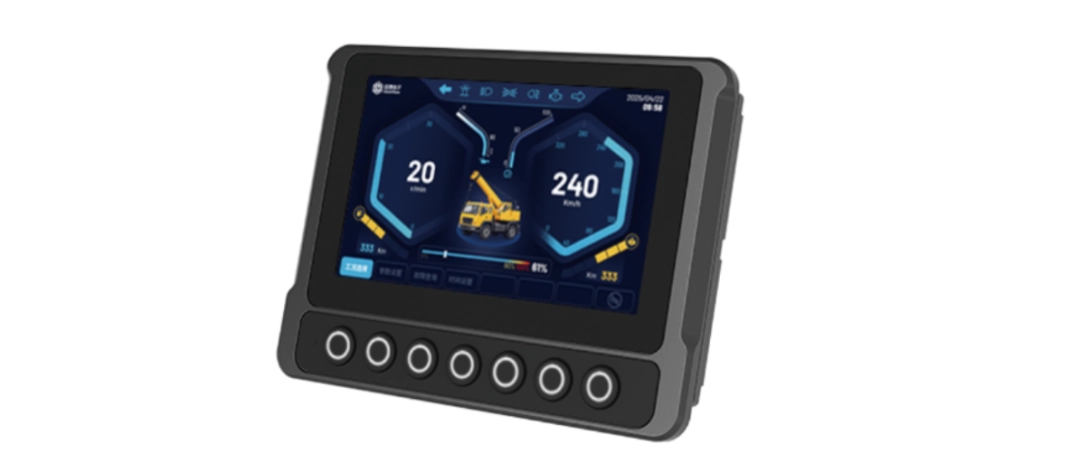

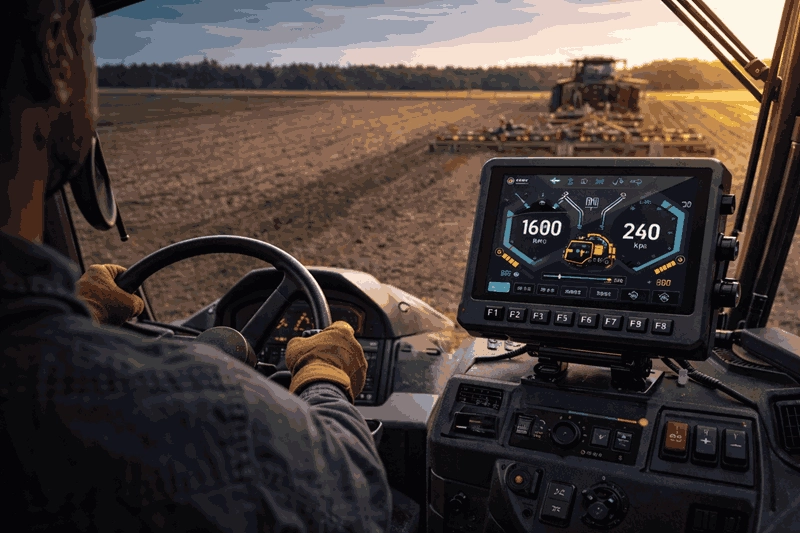

Best CAN Bus Display for Tractor (2026 Engineering Buying Guide)
Choosing the best CAN bus display for a tractor requires more than selecting the largest screen or the highest brightness rating. Agricultural machinery operates under unique field conditions and often integrates ISOBUS-based communication between tractors and implements.
Modern tractors are no longer simple mechanical machines. They are networked systems built on CAN bus architecture, sometimes extended by ISOBUS (ISO 11783) to enable standardized communication between tractor and implement.
This guide explains how to evaluate and select the right CAN bus display for tractor applications using engineering logic rather than marketing specifications.
What Is the Best CAN Bus Display for a Tractor?
The best CAN bus display for a tractor should:
①Support CAN-based communication (SAE J1939, CANopen, or proprietary CAN)
②Provide ISOBUS compatibility when implement control is required
③Deliver sufficient sunlight readability for open-field conditions
④Offer enough CAN channels for network expansion
⑤Match the tractor cab layout ergonomically
⑥Allow future software and feature upgrades
For most agricultural tractors, a 7-inch to 12-inch CAN display with ISOBUS-ready capability and IP65 front protection is widely used.
ISOBUS vs Standard CAN Bus in Tractors
Understanding the difference between CAN bus and ISOBUS is essential before selecting a display.
What Is CAN Bus in Tractors?
CAN bus (Controller Area Network) is the communication backbone used to connect:
①Engine control unit (ECU)
②Transmission control
③Hydraulic systems
④Instrument clusters
Many tractors use SAE J1939 as the upper-layer protocol on CAN.
However, standard CAN communication does not automatically guarantee implement compatibility.
What Is ISOBUS (ISO 11783)?
ISOBUS is an agricultural communication standard built on CAN bus.
It standardizes communication between:
①Tractor
②Implement (sprayer, seeder, fertilizer spreader, etc.)
③Display terminal
ISOBUS enables plug-and-play compatibility across brands.
If a tractor is ISOBUS-ready, a compatible display can function as a Universal Terminal (UT).
Universal Terminal (UT)
A Universal Terminal allows:
①One display to control multiple implements
②Elimination of multiple separate monitors
③Standardized graphical interfaces
UT capability is essential in precision agriculture.
Task Controller (TC)
The Task Controller (TC) function enables:
①Section control
②Variable rate application
③Automatic shutoff
④Field data recording
If precision farming functions are required, the display must support TC functionality.
When Is a Standard CAN Display Enough?
A standard CAN bus display may be sufficient when:
①The tractor does not require implement control
②ISOBUS is not used
③Only engine and hydraulic monitoring are needed
④The machine is compact or utility class
Not every tractor requires full ISOBUS functionality.
7 Critical Factors When Choosing a Tractor CAN Display
1.Sunlight Readability in Agricultural Conditions
Agricultural work involves:
①Direct sunlight
②Open fields
③High-glass cabins
④Dust reflection
Brightness requirements typically fall into these ranges:
400–600 cd/m² → Shaded or enclosed cabins
800+ cd/m² → Large glass cabins or bright climates
Excessive brightness increases cost and heat generation without practical benefit.
2.Screen Size Selection
Choosing the correct screen size is critical.
4–5 Inch Displays
①Compact utility tractors
②Basic monitoring
③Limited dashboard space
7 Inch Displays
①Most common for mid-range agricultural tractors
②Balanced visibility and integration
10–12 Inch Displays
①Precision farming systems
②ISOBUS UT + TC control
③High data density
④Camera and telemetry integration
Screen size must match operator reach, dashboard layout, and information complexity.
3.CAN Channel Requirements
Tractor networks may include:
①Engine bus
②Implement bus
③Diagnostics bus
④Telematics module
Typical configurations:
2 CAN → Basic tractor network
3–4 CAN → Tractor + implement integration
5 CAN → Advanced precision systems
Underestimating CAN channels can limit scalability.
4.IP Rating in Agriculture
Most tractor displays are cab-mounted.
IP65 front protection:
①Fully dust-tight
②Resistant to water jets
③Suitable for enclosed cabin installation
IP67 may be required if:
①Mounted externally
②Exposed to washdown
③Used in extreme slurry environments
For typical agricultural cabins, IP65 is sufficient.
5.Vibration & Mechanical Durability
Tractors operate on uneven terrain for extended hours.
Display systems must withstand:
①Engine vibration
②Field shock
③Long operating cycles
Mechanical design and connector stability are critical for long-term reliability.
6.Touchscreen vs Physical Controls
Agricultural operators often wear gloves.
Options include:
①Capacitive touchscreens
②Resistive touch
③Hybrid systems with physical function keys
Selection depends on usability priorities and environment.
7.Software Scalability & Connectivity
Modern tractors increasingly integrate:
①GNSS positioning
②Telematics
③4G connectivity
④Camera monitoring
⑤Data logging
A programmable display platform enables:
①UI customization
②Protocol updates
③Feature expansion
④Remote firmware updates
Fixed-function displays limit long-term adaptability.
Best CAN Bus Display by Tractor Type
Compact Utility Tractor
Recommended characteristics:
①4–5 inch display
②2 CAN channels
③Moderate brightness
④Basic monitoring functions
Focus: simplicity and space efficiency.
Mid-Size Agricultural Tractor
Recommended characteristics:
①7 inch display
②2–4 CAN channels
③ISOBUS ready capability
④Improved brightness
Focus: balance between cost and expandability.
Precision Farming Tractor
Recommended characteristics:
①10–12 inch display
②Multi-CAN architecture
③UT + TC support
④High visibility
⑤Telematics integration
Focus: data density and implement integration.
Common Mistakes When Selecting a Tractor CAN Display
①Ignoring ISOBUS compatibility
②Selecting based only on brightness numbers
③Underestimating CAN expansion needs
④Choosing oversized displays without ergonomic consideration
⑤Over-specifying IP rating without real need
Engineering alignment ensures long-term reliability and cost efficiency.
Frequently Asked Questions
Do tractors use CAN bus?
Yes. Most modern tractors use CAN bus networks, often combined with ISOBUS (ISO 11783) for implement communication.
What is the difference between ISOBUS and CAN bus?
CAN bus is the communication backbone. ISOBUS is an agricultural standard built on CAN that enables cross-brand tractor-implement compatibility.
Is IP65 enough for tractor displays?
For cab-mounted agricultural displays, IP65 front protection is typically sufficient.
What is the most common tractor display size?
7-inch displays are widely used in mid-range tractors. Precision farming systems often use 10–12 inch displays.
Final Engineering Insight
The best CAN bus display for a tractor is not defined by:
①The highest brightness
②The highest IP rating
③The largest screen
It is defined by:
①ISOBUS requirements
②CAN architecture complexity
③Field visibility conditions
④Ergonomic integration
⑤Long-term scalability
Selecting based on real agricultural requirements ensures reliability, usability, and future-ready performance.
