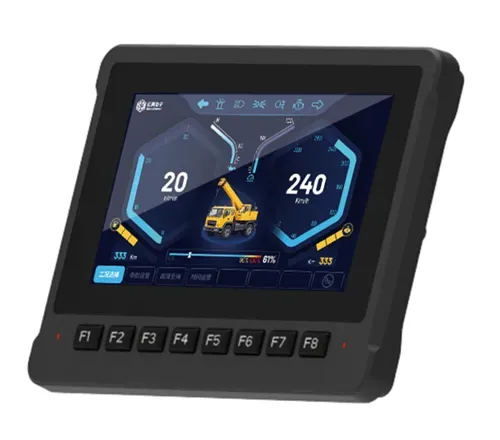

Best CAN Bus Display for Excavator (2026 Engineering Guide)
Selecting the best CAN bus display for an excavator is not about choosing the highest brightness or the largest screen. It is about aligning the display with the machine’s CAN architecture, cabin environment, vibration profile, and long-term upgrade path.
Most excavators today rely on SAE J1939 networks, multiple ECUs, and increasingly complex hydraulic and telematics systems. The display is no longer just a gauge cluster — it is the operator’s primary control interface.
This guide explains how to select the right CAN bus display for excavators using real engineering criteria.
What Is the Best CAN Bus Display for an Excavator?
The best CAN bus display for an excavator should:
-Support SAE J1939 and/or CANopen
-Provide sufficient cabin brightness (400–900 cd/m² depending on environment)
-Handle continuous vibration
-Offer enough CAN channels for multi-ECU communication
-Fit the dashboard layout ergonomically
-Allow software scalability for future features
For most cabin-mounted excavators, an IP65 front-panel display with 2–5 CAN channels and a 7-inch or 10.1-inch screen size is commonly used.
Why Excavators Have Unique HMI Requirements？
Excavators operate under conditions that differ significantly from other off-highway equipment.
1.Continuous Hydraulic Vibration
Hydraulic systems create constant low-frequency vibration. Displays must maintain stable touch performance and internal PCB integrity.
2.Multi-ECU Communication
Modern excavators often include:
-Engine ECU
-Hydraulic controller
-Attachment controller
-Telematics module
All of these may communicate over CAN.
3.High Information Density
Operators monitor:
-Engine RPM
-Coolant temperature
-Hydraulic pressure
-Fuel level
-Fault codes
-Camera feeds
Screen layout must balance visibility and clarity.
7 Critical Factors When Choosing a CAN Bus Display for Excavators
1.CAN Protocol Compatibility (J1939 vs CANopen)
Most excavators use SAE J1939 for engine communication. Some use CANopen for hydraulic or auxiliary systems. Others rely on custom CAN frames.
Before selecting a display, confirm:
-Protocol type
-Number of CAN buses
-Whether DBC file support is required
-Future network expansion plans
Choosing insufficient CAN capacity can limit future upgrades.
2.How Many CAN Channels Are Required?
Typical excavator configurations:
①Mini excavator → 2 CAN channels
②Mid-size excavator → 2–4 CAN
③Intelligent excavator → up to 5 CAN
More CAN ports allow separation of:
-Engine bus
-Attachment bus
-Diagnostics bus
-Telematics
Proper network segmentation improves stability.
3.Brightness Requirements for Excavator Cabins
Brightness should match actual working conditions.
Common brightness levels:
400–600 cd/m² → Shaded or partially enclosed cabin
800–900 cd/m² → Bright glass cabin
1000+ cd/m² → Direct external mounting
Over-specifying brightness increases power consumption and cost without proportional benefit.
4.Screen Size Selection
Choosing the correct size is critical.
4.3 Inch
Used in compact machines or as secondary monitoring panels.
5 Inch
Often replaces traditional instrument clusters.
7 Inch
The most common size for mid-size excavators. Provides good balance between information density and dashboard fit.
10.1 Inch
Used in advanced or smart excavators requiring camera integration and complex UI.
12.1 Inch
Common in mining excavators or fleet-integrated heavy equipment.
Screen size must match:
-Operator reach distance
-Dashboard geometry
-Data complexity
5.IP Rating——Is IP65 Enough?
Most excavator displays are installed inside sealed cabins.
IP65 front panel protection:
①Fully dust-tight
②Resistant to water jets
③Suitable for cabin environments
IP67 is required mainly for:
①External mounting
②Pressure wash exposure
③Mining slurry conditions
Over-specifying IP level increases enclosure cost and weight.
6.Vibration & Shock Resistance
Excavators produce constant vibration and occasional shock loads.
A suitable display should include:
①Reinforced housing
②Secure internal PCB mounting
③Industrial connectors
④Stable capacitive touch under vibration
Mechanical durability is often more critical than immersion rating.
7.Programmability & Long-Term Scalability
Modern excavators increasingly integrate:
-Remote diagnostics
-Telematics
-Camera systems
-Data logging
-Software updates
A programmable display platform allows:
-UI redesign
-Protocol updates
-Feature expansion
Fixed-function displays may limit lifecycle flexibility.
Best CAN Bus Display by Excavator Type
Best Display for Mini Excavator
Recommended characteristics:
①4.3" display or 5" can bus display
②2 CAN channels
③Moderate brightness (400–600 cd/m²)
④Compact installation footprint
Mini excavators prioritize space efficiency.
Best Display for 20–40 Ton Excavator
Recommended characteristics:
②2–5 CAN channels
③600+ cd/m² brightness
④Optional video input
This is the most common configuration in construction equipment.
Best Display for Mining Excavator
Recommended characteristics:
①10.1"display or 12.1"
②Multi-CAN architecture
③High resolution (1280×800 class)
④Camera integration
⑤Telematics compatibility
Mining environments demand higher integration and durability.
Common Mistakes When Choosing an Excavator CAN Display
1.Selecting based only on IP rating
2.Ignoring CAN network expansion
3.Overpaying for excessive brightness
4.Choosing oversized screens
5.Neglecting software upgrade capability
Engineering alignment is more important than marketing numbers.
Frequently Asked Questions
What CAN protocol do excavators use?
Most use SAE J1939 for engine communication. Some integrate CANopen or custom CAN messages for hydraulic modules.
Is IP67 necessary for excavator displays?
Not for cabin-mounted installations. IP65 is typically sufficient.
What is the most common excavator display size?
7-inch displays are widely used in mid-size excavators.
How many CAN ports does an excavator need?
Between 2 and 5 CAN channels depending on network complexity.
Do excavators require programmable HMIs?
Increasingly yes, especially for machines with telematics and camera integration.
Final Engineering Insight
The best CAN bus display for excavators is not defined by:
-The highest brightness
-The highest IP rating
-The largest screen
It is defined by:
①Correct CAN architecture matching
②Suitable brightness for the cabin
③Adequate vibration resistance
④Appropriate screen size
⑤Long-term software scalability
Selecting based on real engineering requirements ensures reliability, usability, and future-proof integration.
