How to Diagnose J1939 Problems

How to Diagnose J1939 Problems


Short Answer:


Diagnosing J1939 problems is not about guessing or replacing parts blindly.


It follows a clear, layered process:


1.Read and interpret diagnostic messages (SPN / FMI / DM1)

2.Verify the physical layer (wiring, resistance, voltage)

3.Check network behavior (address claim, node communication)

4.Isolate common fault causes such as grounding, connectors, or interference


If you follow this order, most J1939 issues can be identified quickly and systematically.


Step 1: Start With J1939 Diagnostic Codes (SPN & FMI)


J1939 diagnostics are built around Diagnostic Trouble Codes (DTCs), which consist of:


-SPN (Suspect Parameter Number)

Identifies what parameter is affected (e.g. engine speed, oil pressure).


-FMI (Failure Mode Identifier)

Describes how the parameter failed (e.g. out of range, short to ground, data erratic).


Together, SPN + FMI tell you where to look first, not just that “something is wrong”.


Why This Matters


Many technicians skip this step and go straight to wiring.

That often leads to unnecessary disassembly and wasted time.

If a fault is logical or sensor-related, physical inspection alone will not fix it.


Step 2: Check DM1 and Active Diagnostic Messages



Most active J1939 faults are broadcast using DM1 (Diagnostic Message 1).


DM1 messages report:


-Active DTCs

-Lamp status (Warning, Amber, Red)

-Fault priority


What to Verify


-Is the fault active or previously logged?

-Does it appear consistently or intermittently?

-Do multiple ECUs report related SPNs?


If multiple controllers report similar symptoms, the issue is often network-related, not a single ECU failure.



Step 3: Verify the Physical Layer


A large percentage of J1939 issues are physical-layer faults, especially in harsh environments.

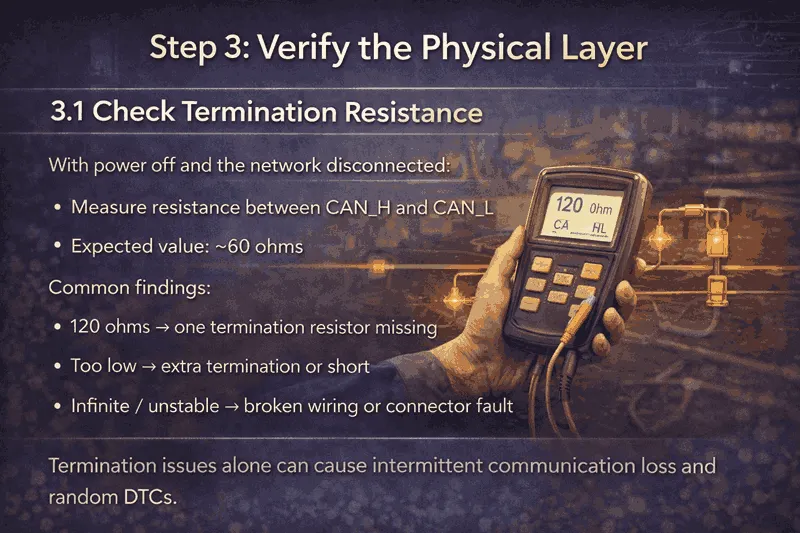

3.1 Check Termination Resistance


With power off and the network disconnected:


-Measure resistance between CAN_H and CAN_L

-Expected value: ~60 ohms


Common findings:


-120 ohms → one termination resistor missing

-Too low → extra termination or short

-Infinite / unstable → broken wiring or connector fault


Termination issues alone can cause intermittent communication loss and random DTCs.


How to Diagnose J1939 Problems





















3.2 Measure Bus Voltage Levels


With power on:


-CAN_H ≈ 2.5–3.5 V (dominant)

-CAN_L ≈ 2.5–1.5 V (dominant)

-Small differential voltage when recessive


If voltages are unstable or heavily noisy, suspect:


-Poor grounding

-Shield damage

-Power supply interference


Step 4: Inspect Wiring and Connectors


J1939 is widely used in off-highway and heavy-duty vehicles, where wiring is exposed to:


-Vibration

-Moisture

-Oil and dust

-Temperature extremes


Common Physical Faults


-Corroded 9-pin connectors

-Cracked insulation near joints

-Pin push-back inside connectors

-Shield grounded at multiple points


These issues often create intermittent faults that are difficult to reproduce unless inspected carefully.


Step 5: Check Address Claim and Node Behavior


Every J1939 ECU must claim an address before communicating.


Problems occur when:


-Two nodes attempt to use the same address

-A device repeatedly loses and reclaims its address

-A node enters silent mode


Symptoms


-ECU appears offline

-Intermittent data loss

-DM1 messages from unexpected sources


Monitoring the address claim process helps identify misconfigured or failing devices.


Step 6: Identify Common Root Causes


After diagnosis, most J1939 problems fall into a few categories:


-Wiring harness damage

-Missing or incorrect termination

-Ground reference issues

-Power supply instability

-Connector corrosion

-Improper shielding


Very rarely is the protocol itself the problem.


A Practical Diagnostic Mindset


Effective J1939 diagnosis is about process, not tools.


-Start with diagnostic messages

-Confirm network integrity

-Inspect physical connections

-Verify node behavior


This layered approach prevents guesswork and reduces downtime — especially critical in commercial and industrial vehicles where uptime matters.


Final Takeaway


J1939 is a robust and mature protocol, but it relies on:


-Clean physical wiring

-Correct termination

-Stable power and grounding

-Proper ECU configuration


When problems occur, they are usually system-level issues, not protocol failures.


Following a structured diagnostic method allows engineers and technicians to resolve J1939 issues efficiently — even in complex, multi-vendor vehicle systems.
