Communication: 1×CAN
Protocol: User-defined
Resource: 8 keys 1×DOH

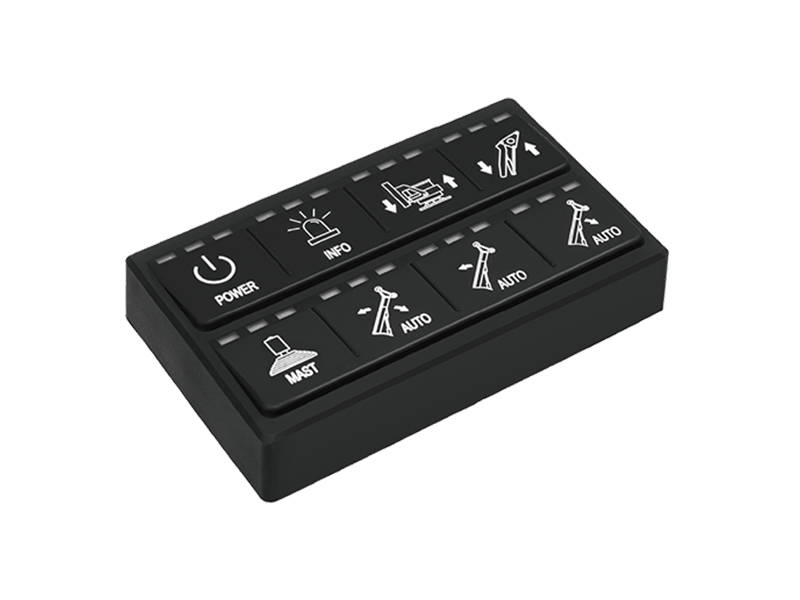

SPM-KEYP-A08, developed by SonnePower, is an affordable operation panel designed to meet various application requirements. This product has 1 channel CAN bus, 1 channel high side output, and 8 silicone buttons. Each silicone button is equipped with three LEDs, allowing for versatile and customizable visual feedback.
The SPM-KEYP-A08 operation panel excels in its high level of protection, ensuring reliable operation even in challenging environments. Its compact size makes it easy to integrate into different systems, while its high response speed guarantees quick and efficient interaction. With a long operational lifespan, this panel offers durability and longevity.
Whether it's for industrial or commercial applications, the SPM-KEYP-A08 operation panel is an ideal choice for distributed systems.
Communication: 1×CAN
Protocol: User-defined
Resource: 8 keys 1×DOH
Status Indicator: RGB Monocolor LED
Backlight: White Adjustable Brightness
Customized Key Pattern on Demand
- 32-bit high-performance MCU
- 1 channel CAN with customizable options.
- 1 high side output for direct load driving.
- Key life of up to 500,000 times.
- High brightness white backlight.
- All input ports support power and ground misconnection.
- All output ports feature short-circuit and over-temperature protection.
- IP65/IP67 protection (with cable).
