SPD-070-Hx series
Quick start ≤ 5s
5 CAN bus interfaces
1 RS232 serial communication port
Programming Environment:CoDeSys 3.5
4×AHD Video Inputs (720P/1080P), 20 IO resources

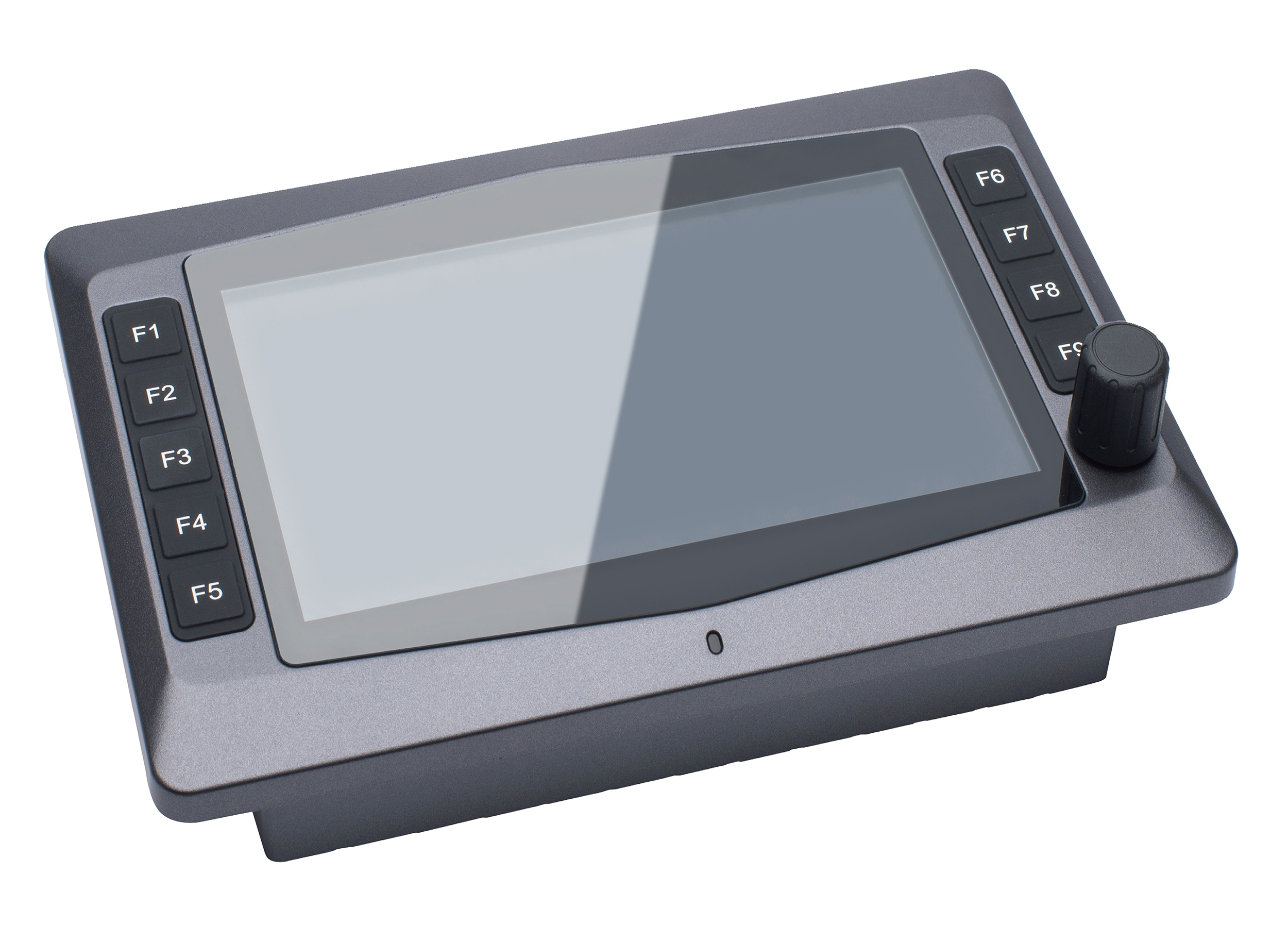

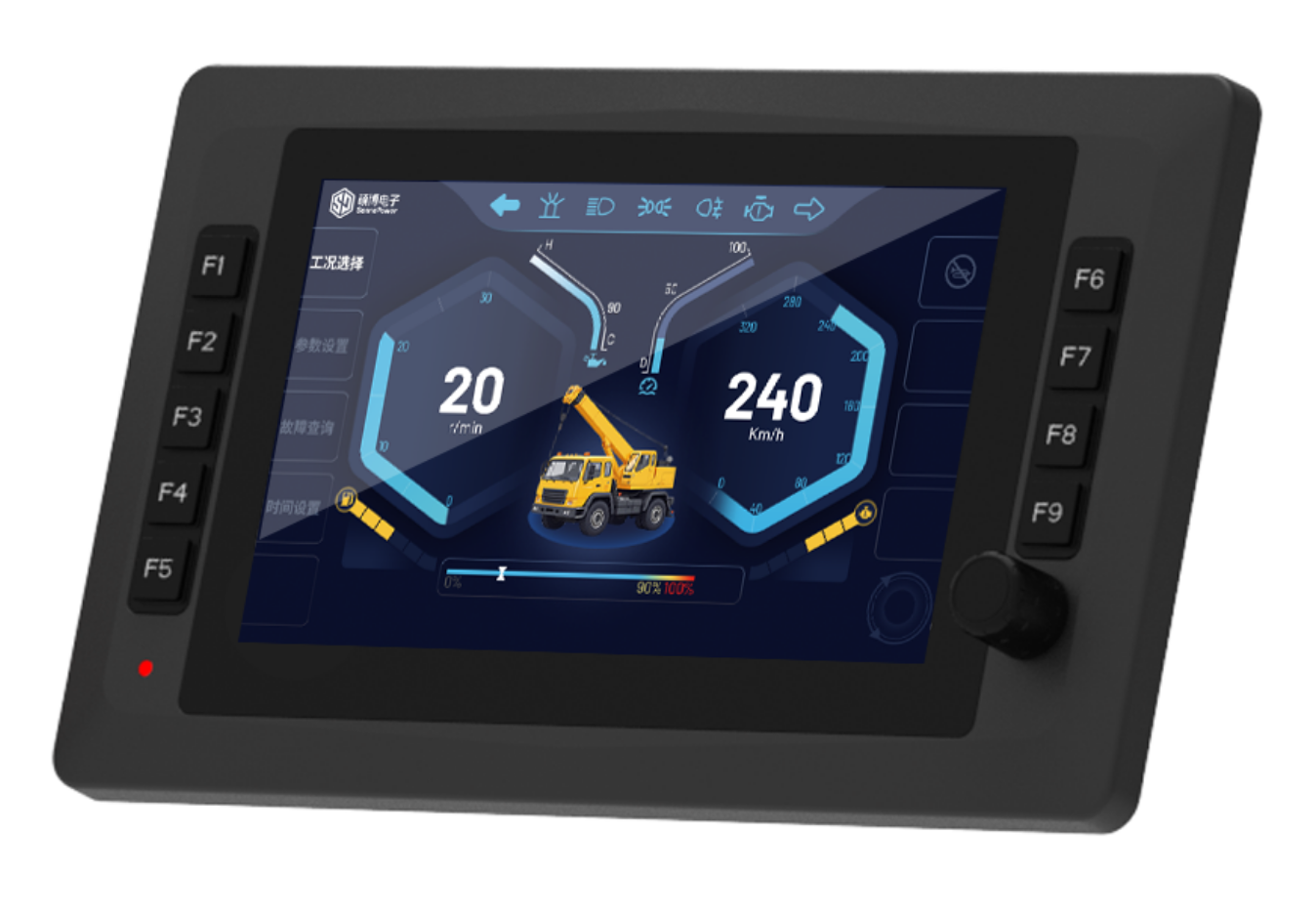

The SPD-070-Hx is a 7-inch off-highway programmable display designed for mobile machinery and special vehicles.
It integrates HMI operation, machine control, communication, and video functions in one compact platform, helping OEMs and system integrators build smarter and more efficient machine control solutions.
Suitable for demanding off-road environments, it is widely used in construction equipment, agricultural machinery, sanitation vehicles, and other intelligent mobile applications.
| Product Details | |
|---|---|
| Display Size | 7 inch |
| Resolution | 1024 × 600 |
| Brightness | ≥600 cd/m² |
| Touch Screen | Capacitive touch |
| Dimensions | 225 × 146 × 66.2 mm |
| Mounting | Embedded mounting or RAM bracket mount |
| Connector | 60-pin connector |
| Weight | 1.45 kg |
| Operating Voltage | 8–32 V DC |
| Operating Temperature | -20 to +70°C |
| Storage Temperature | -30 to +80°C |
| Protection Rating | IP65 |
1. Integrated HMI and control functions
The SPD-070-Hx combines display, operation, communication, and control functions in one unit, helping simplify system architecture and reduce hardware integration complexity.
2. Built for off-highway applications
Designed for mobile machinery and special vehicles, it is suitable for demanding working environments where reliability, visibility, and stable performance are essential.
3. Flexible communication and system integration
With support for CANopen, SAE J1939, and user-defined protocols, the display can be integrated into different machine control systems more easily.
4. Enhanced operator interaction
The combination of touchscreen, programmable keys, and rotary encoder helps improve operating convenience and supports more intuitive human-machine interaction.
5. Supports video and intelligent expansion
Video input and multiple communication interfaces make it easier to expand functions such as camera monitoring, positioning, wireless communication, and smart control.
