7" Screen Display

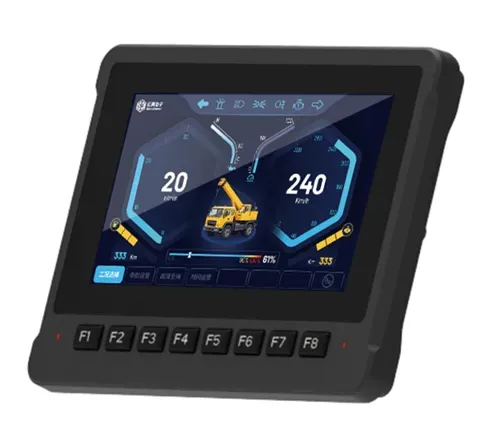

7” Ex Series Touch Display

7” Ex Series Touch Display

The SonnePower 7” E-Series is a rugged, high-performance touch display designed for special vehicles. With ultra-fast boot, dual CAN, CoDeSys 3.5 support, and multiple I/Os, it delivers smart control and reliable visibility in harsh environments.

The 7” E-Series display is engineered to perform in extreme conditions across industries such as mining, construction, agriculture, sanitation, and firefighting.

Boots in under 5 seconds, enabling fast readiness

Operating voltage: 8–32 VDC, wide input range

IP-rated housing, supports reliable operation in dust, shock, and vibration environments

Operating temperature range from –20°C to +70°C, suitable for both indoor cabs and outdoor



The display is equipped with rich I/O and communication capabilities to meet various control and monitoring demands:

2x CAN bus, user-defined protocol

CoDeSys 3.5 programmable, enabling customizable logic and HMI development

2x Analog video inputs, compatible with CVBS/AHD/TVI/CVI

RS-232, USB, Ethernet, and multiple digital/analog I/Os

Support Bluetooth, GPS/Beidou

High-brightness version available

Perfect for control panels in autonomous systems, smart diagnostics, rear-view camera integration, and more.
