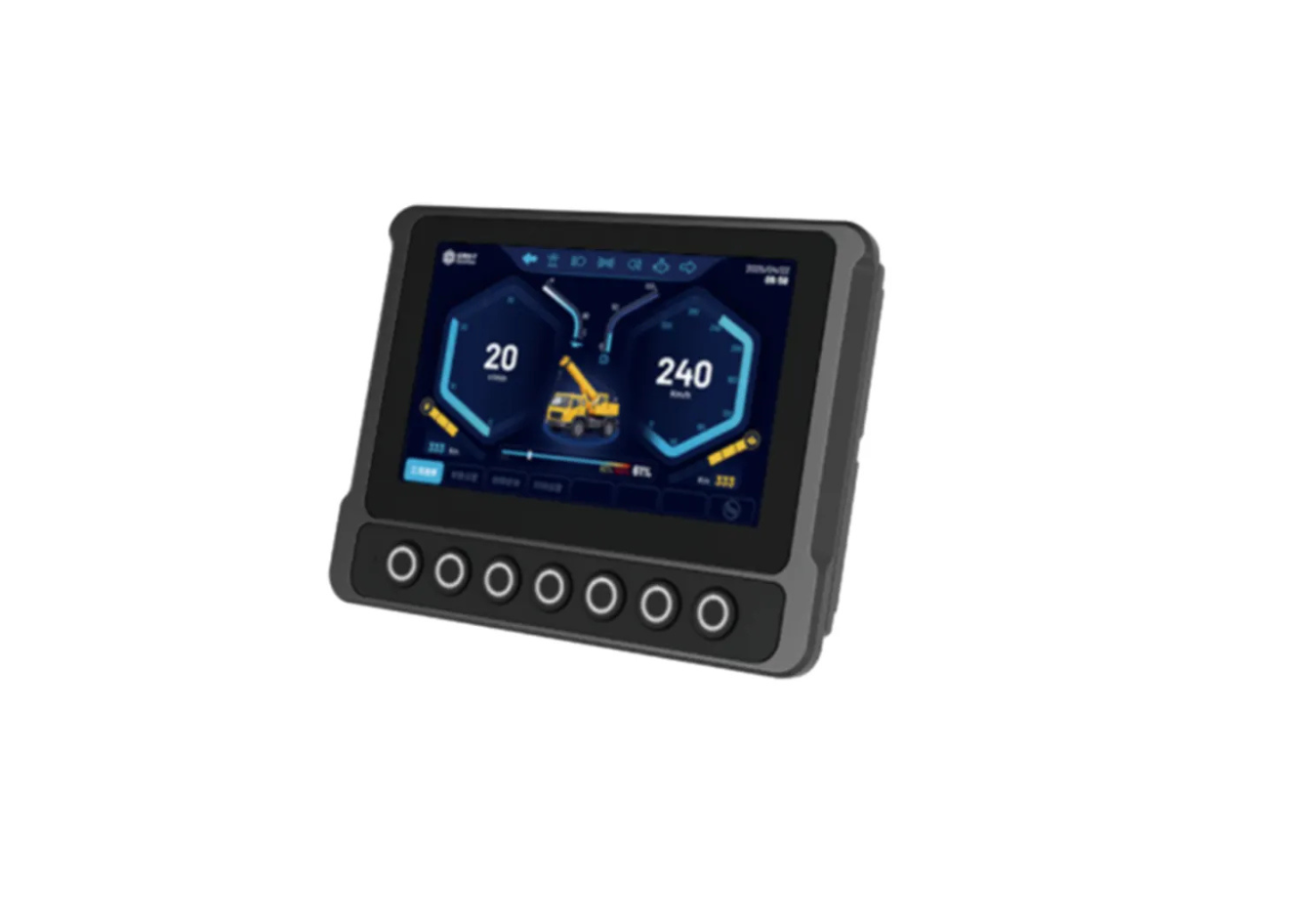

SPD-050-E is a compact 5 inch programmable display designed for mobile machinery, featuring CoDeSys 3.5, high brightness, flexible communication, and configurable local I/O for efficient HMI integration.
5 inch capacitive touch display
800 × 480 resolution
≥800 cd/m² brightness
CoDeSys 3.5 programmable platform
2 × CAN, RS232, and Ethernet connectivity
SPD-050-E Technical Specifications
The SPD-050-E is a compact 5 inch programmable display designed for mobile machinery and industrial equipment. Below are the key technical specifications for product evaluation and system matching.
| Item | Specification |
|---|---|
| Model | SPD-050-E |
| Communication | 2 × CAN, 1 × RS232, 1 × ETH |
| Protocol | User-defined |
| Display Size | 5 Inch |
| Programming Environment | CoDeSys 3.5 |
| Resolution | 800 × 480 |
| Brightness | ≥800 cd/m² |
| Total I/O | 14 multifunction local I/O channels, including up to 4 output-capable channels |
| I/O Type 1 | 6 × DI<sup>H/L</sup> / AI<sup>U</sup> / AI<sup>I</sup> |
| I/O Type 2 | 4 × DI<sup>H/L</sup> / PI |
| I/O Type 3 | 2 × PI (AB) |
| I/O Type 4 | 4 × DI<sup>H/L</sup> / AI<sup>U</sup> |
| I/O Type 5 | 4 × DO<sup>H</sup> / PWMi<sup>H</sup> / PWM<sup>H</sup> |
| Power Output | 1 × Vout (5V, Max 500mA) |
| Function Keys | 7 Freely Programmable Backlit Function Keys |
| Memory | DDR4: 8Gbit; Flash: 64Gbit; FRAM: 256Kbit |
| Expansion | Support WiFi, USB |
Note:
DI = Digital Input, AI = Analog Input, PI = Pulse Input, DO = Digital Output, PWM = Pulse Width Modulation.
Product Advantages
1.Compact size with practical machine-side capability
The 5 inch form factor makes SPD-050-E suitable for installations where panel space is limited, while still offering the communication, programming, and I/O resources needed for real machine HMI projects.
2.CoDeSys 3.5 for flexible HMI development
With CoDeSys 3.5, the display can support custom interface design, machine status visualization, and project-specific logic development, giving OEMs and integrators more flexibility.
3.Strong communication for system integration
Equipped with 2 × CAN, 1 × RS232, and 1 × Ethernet, SPD-050-E is easier to integrate with controllers, sensors, and other onboard electronic devices in mobile equipment systems.
4.High-brightness display for clearer visibility
The 800 × 480 resolution and ≥800 cd/m² brightness help deliver clear visual performance for machine operation interfaces and status monitoring.
5.Configurable local I/O for more functional flexibility
Beyond display functions, SPD-050-E provides multifunction local I/O resources, allowing it to handle signal input and selected output tasks closer to the operator interface.
6.Programmable keys and expansion support
With 7 freely programmable backlit function keys, plus WiFi and USB support, the unit offers better user interaction and easier expansion for different project requirements.
Typical Applications
1.Construction Machinery
Suitable for compact construction equipment that requires machine status display, operator interaction, and communication with the main controller.
2.Agricultural Equipment
Can be used in tractors, sprayers, seeders, and other agricultural machines that need a compact HMI with programmable functions and CAN-based integration.
3.Sanitation and Utility Vehicles
A good fit for sweepers, municipal vehicles, and utility equipment where operators need a clear control interface in a limited installation space.
4.Material Handling Equipment
Can be applied in forklifts and other handling vehicles that require local display, programmable keys, and reliable communication interfaces.
5.Special-Purpose Industrial Vehicles
Suitable for custom vehicles and specialized mobile equipment where OEMs need a programmable display with flexible I/O and communication resources.
