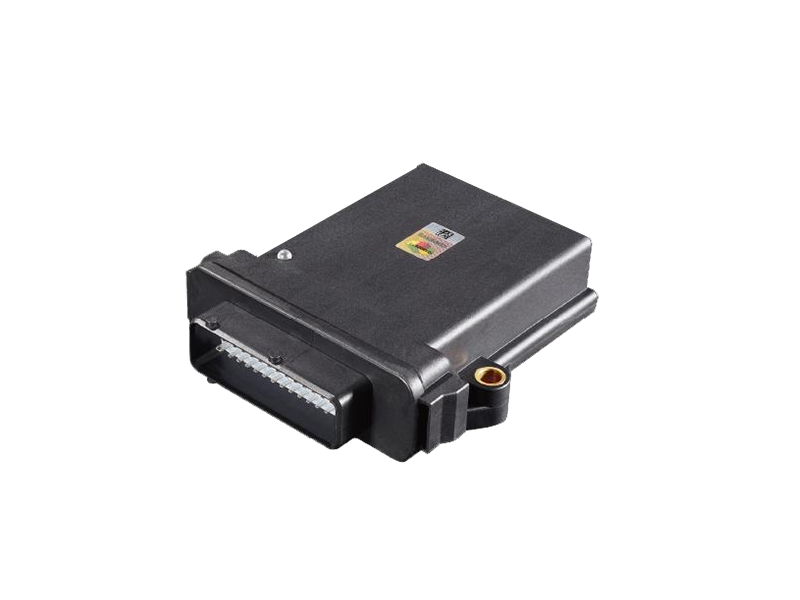

SPC-SDIO-1616A1 enables distributed I/O expansion over CAN bus, helping OEMs and system integrators simplify wiring and build scalable control systems for mobile and industrial equipment.
It integrates seamlessly into CANopen-based control networks, providing a reliable and flexible solution for distributed I/O deployment.
The SPC-SDIO-1616A1 provides a practical solution for distributed I/O expansion in CAN-based control systems. It enables I/O nodes to be deployed closer to sensors and actuators, reducing cable length and improving system reliability in complex electrical architectures.
The module supports EDS-based configuration and host software parameter setup, allowing fast integration into existing CANopen networks. With flexible I/O resources and built-in power outputs, SPC-SDIO-1616A1 can be easily adapted to various mobile and industrial applications, including construction equipment, agricultural machinery, sanitation vehicles, and other off-highway systems.
Model: IO-SPC-SDIO-1616A1
Communication: 1 × isolated CAN
Protocol: CANopen / custom protocol
Max Load: 15 A
Total I/O: 32 channels (32 inputs / 16 outputs)
Digital Inputs (DI): 32 × DI
Analog Inputs: 12 × AIU + 2 × AII
Pulse Inputs (PI): 4 × PI + 2 × PI (AB)
PWM Outputs: 12 × PWMiH
Digital Outputs: 4 × DOH
Typical applications include:
Construction equipment – distributed signal acquisition and actuator control
Agricultural machinery – sensor input and PWM-based control for implements
Sanitation vehicles – decentralized I/O for auxiliary systems and subsystems
Off-highway mobile machines – scalable CAN-based distributed control
Industrial automation systems – remote I/O extension over CAN bus
