12 Channels I/O Module
Input and Output module SPC-SDIO-S1212

Input and Output module SPC-SDIO-S1212

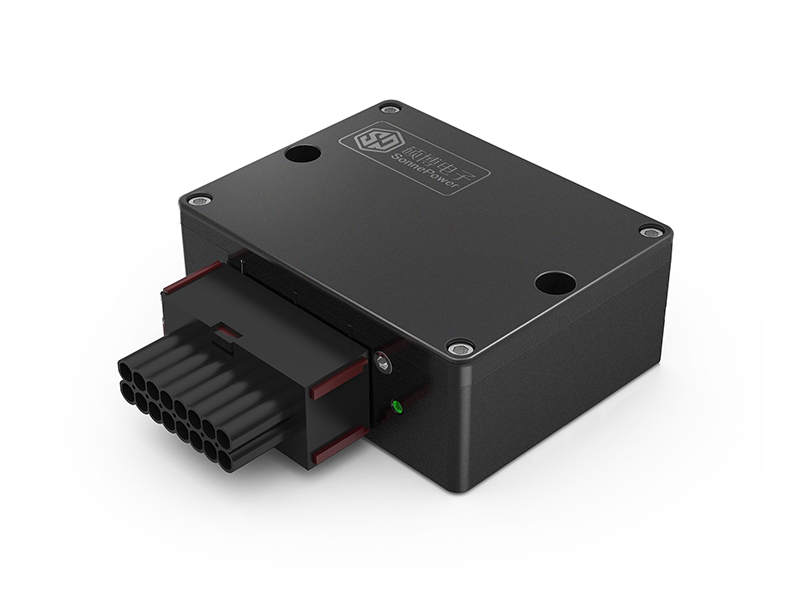

SPC-SDIO-S1212 Intelligent Distributed IO is an economical smart distributed IO developed by SonnePower. This product has 1 CAN bus and 12 IO resources, with high port versatility. The input ports can collect high-level signals, voltage, and more. The output resources consist of DOH (3A), capable of directly driving solenoid valves.

Additionally, this product offers advantages such as high protection level, compact size, high integration, flexible port configuration, and fast response speed. These qualities make it an ideal choice as the main controller in distributed applications.

Input and Output module SPC-SDIO-S1212

- 32-bit high-performance CPU

- 12-channel IO resources with high port multiplexing rate

- Supports 1 channel CAN with CANOpen compatibility

- Features a blue status indicator

- All input ports support power and ground misconnection

- All output ports equipped with short-circuit and overheating protection

- Protection grade: IP67

Housing MaterialAluminum

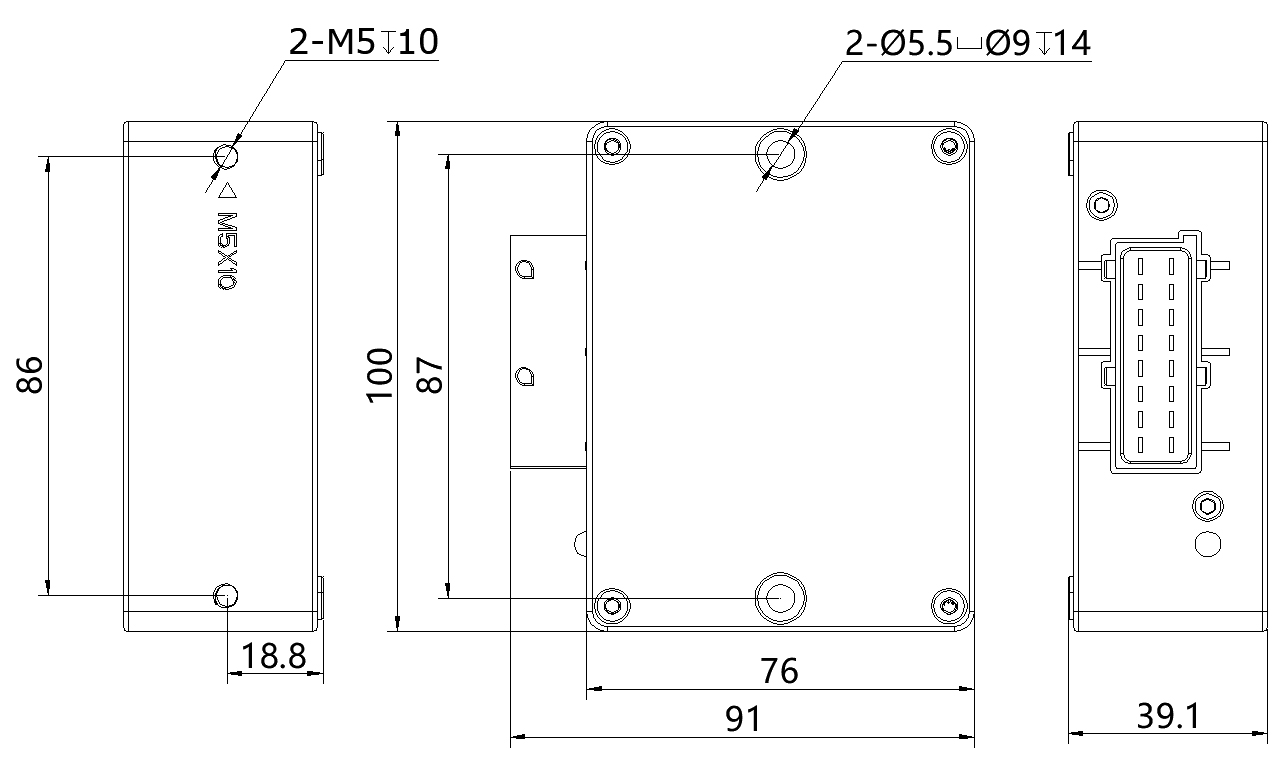

Size100×91×39.1 mm
Installation2 x M5×30 (side) or 2 x M5×10 (bottom) screw mounting
Connector16-Pin Tyco
Working temperature-40...85 ℃
Protection classIP67
Total IOs12 channels (12 inputs/0 outputs)
InputUp to 12 inputs can be configured



Sanitation Machinery

Agricultural Machinery

Port Machinery

Pavement Construction Machinery

Aerial Work Machines
