12.1" Screen Display
SPD-121-Ax series is a capacitive touch display

SPD-121-Ax series is a capacitive touch display

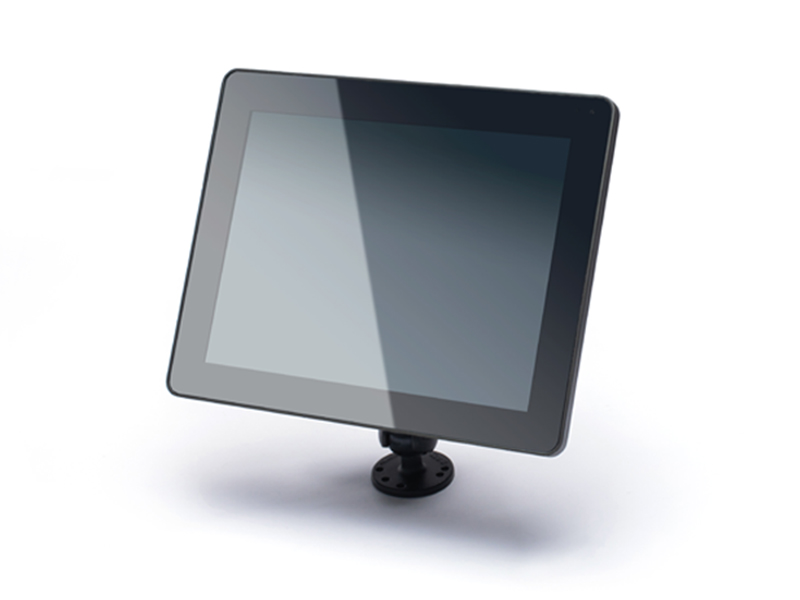

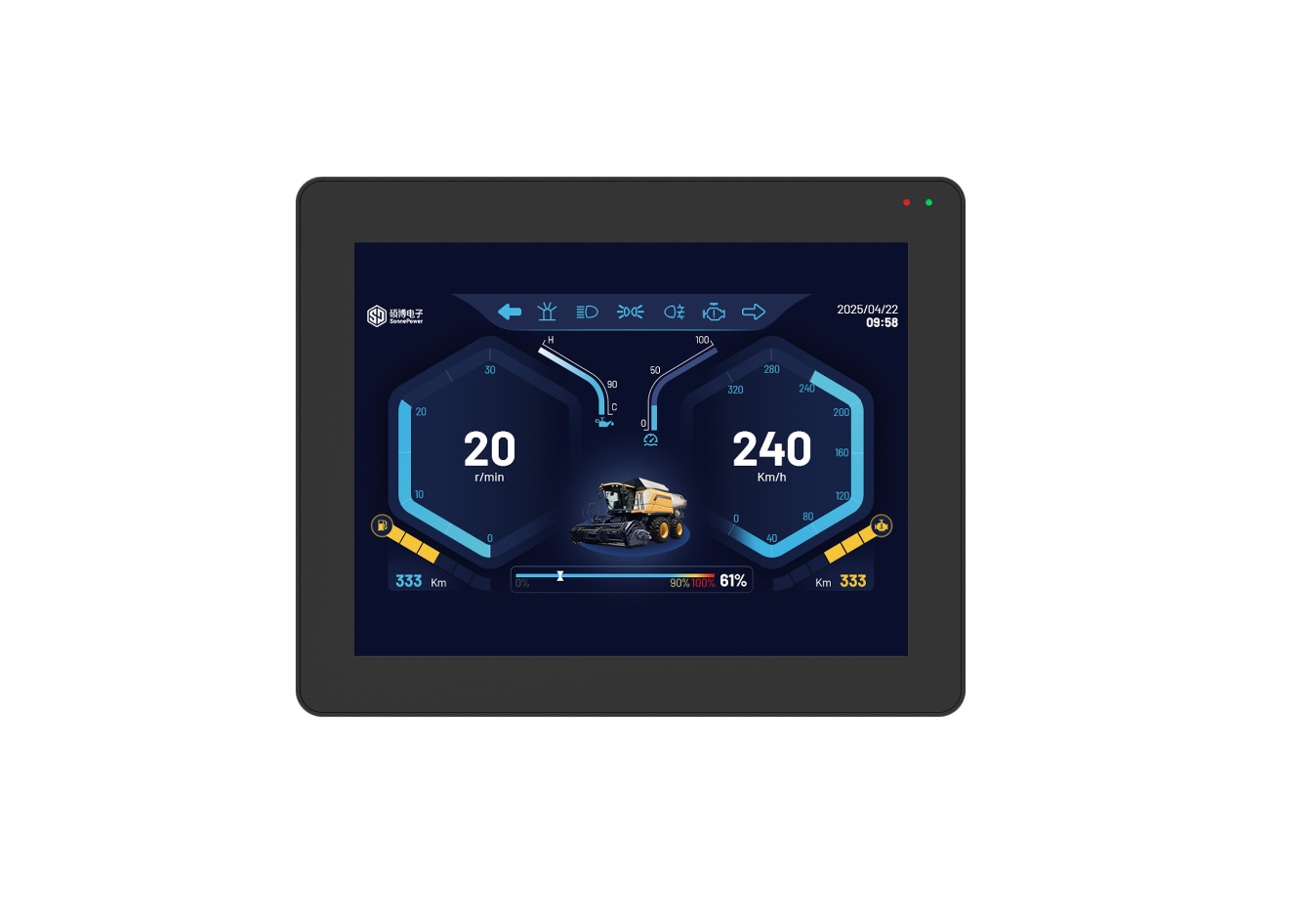

The 12.1 inch mobile machinery display SPD-121-Ax series from SonnePower is a capacitive touch display with a screen resolution of 1024*768. It has a contrast ratio of 1000 and a brightness of 600cd/m2 (typical). The 12.1 inch mobile machinery display supports Codesys 3.5 programming. It features 4 channels of CAN bus, 1 USB 2.0 OTG port, 1 Ethernet port (dedicated for program debugging and downloading), 6 channels of high-definition AHD video input, and 2 channels of IO resources (1 channel for AII/AIU/DIH/L and 1 channel for DOH/PWMH). It supports Bluetooth communication and can be wirelessly upgraded via a mobile app. 12.1-inch mobile machinery display is equipped with a metal M12 socket for external interfaces and has an overall protection class of IP65. Diffrent inches mobile machinery displays for you!

Wide input voltage range: The input power supports a wide voltage range of 8-32V, making it suitable for dedicated vehicles with 12V and 24V systems.

Compliance with standards:  12.1 inch Mobile Machinery Display meets the IEC61000-4-2, IEC61000-4-4, IEC61000-4-5, and ISO7637.2 standards, ensuring reliable performance in terms of electromagnetic compatibility and surge protection.

Bluetooth upgradability: 12.1 inch Mobile Machinery Display supports Bluetooth upgrades, allowing for convenient wireless updates and improvements.

Diagnostic and protection features: Industrial touch screen all ports are equipped with diagnostic and protection functions.

-The ports have protection mechanisms against power and ground misconnections, and the output ports have short-circuit and overheating protection.

-All digital output ports come with short-circuit feedback, short-circuit protection, and overheating protection.

Specifications: 300×242×53.5mm

Material: Aluminum alloy

Operating Voltage: 8-32V

Operating Temperature: -20 to +70℃

Resolution Ratio: 1024×768

Brightness: ≥480cd/m2

Contrast Ratio: 1000 (typical)

Backlight lifespan: 50000H

Total IO: 1 Input(AIU/AII/DIH)/1 Output(DOH/PWMH)

6 HD Videos

Capacitive Touch

Support Bluetooth, Ethernet, USB

TypeCAN ChannelVideo Input ChannelSocket Numbering
SPD- 121-AT10CN 1,2,3,4,x,x,x,x
SPD- 121-A4T40CN 1,2,3,4,5,6,x,x
SPD- 121-A4TV444CN 1,2,3,4,5,6,7,8

Experience industrial-grade innovation with SonnePower's 12.1-inch Mobile Machinery Display. This touch screen monitor delivers superior performance, making it the ideal choice for industrial touch display needs.  Contact us now to get a quote !
