Display Size: 10.1 inch, 1280×800 full-screen design
Brightness: 900 cd/m² sunlight-readable screen
Communication: 5 × CAN (CANopen / SAE J1939 / User-defined)
Programming Environment: CoDeSys 3.5
Total I/O: 20 (20 Inputs / 8 Outputs)

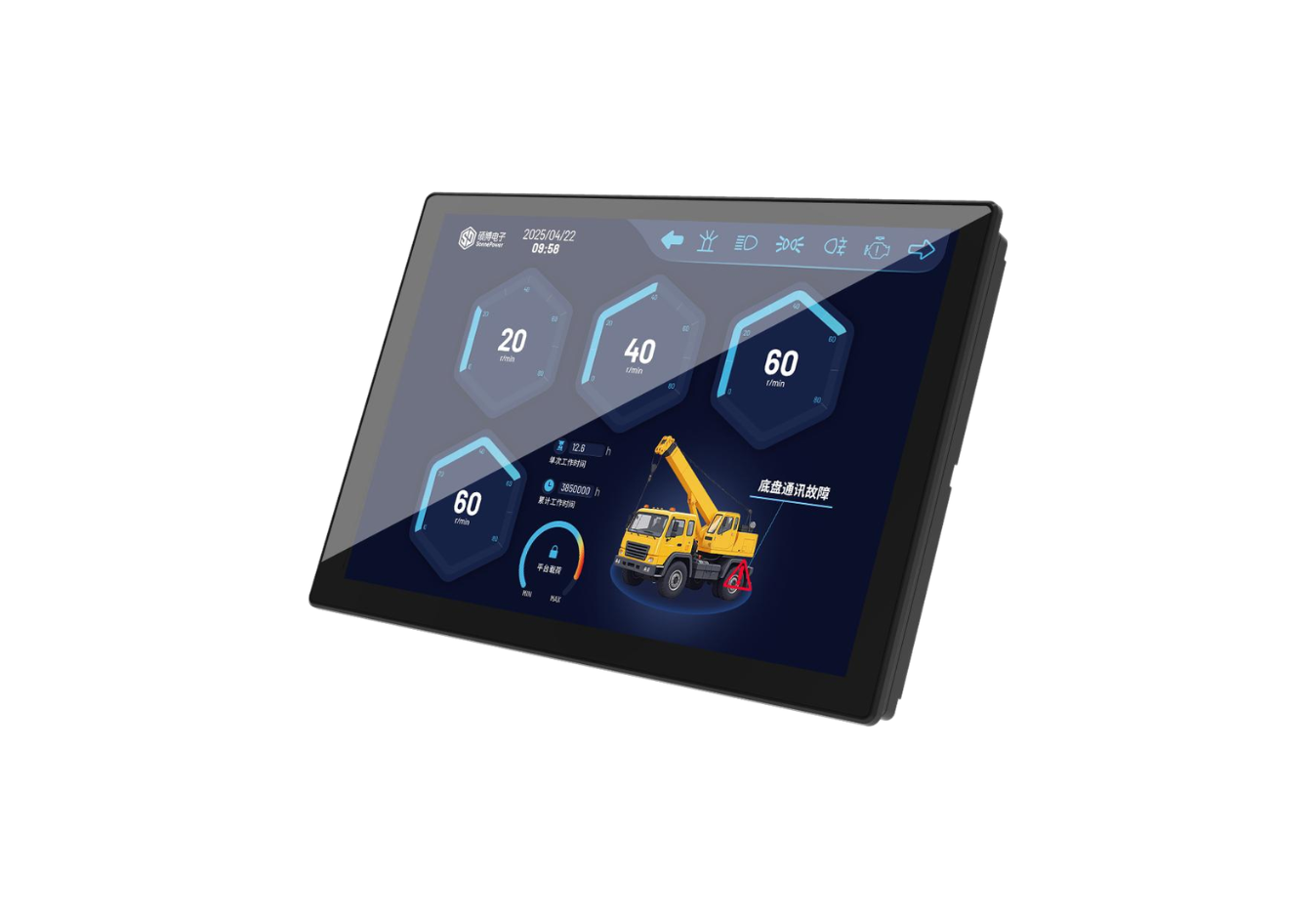

The SPD-101-H3x combines a full-screen modern design with high reliability, making it suitable for demanding off-highway environments such as construction, agriculture, and sanitation machinery.Its edge-to-edge display and robust structure ensure excellent visual experience and durability in all weather conditions.
✅ Display and Visibility
10.1-inch full-screen TFT-LCD, 1280×800 resolution
900 cd/m² brightness for superior sunlight readability
Fast boot function for immediate system startup
Wide viewing angle and rugged front panel design
✅ Communication and Protocol
5 × isolated CAN communication channels
Supports CANopen, SAE J1939, and user-defined CAN protocols
Ideal for intelligent vehicle control and real-time data exchange
✅ Programming Environment
Powered by CoDeSys 3.5, allowing flexible logic and visualization design
Supports customized control interfaces for diverse machinery applications
✅ I/O Resources
Total I/O: 20 (20 Inputs / 8 Outputs)
• 8 × DI (H/L)
• 12 × DI (H)
• 14 × AI (U 0–10 V)
• 2 × AI (U 0.4–32 V)
• 8 × AI (R 4–20 mA)
• 4 × PI (≤30 kHz)
• 1 × PI (AB)
• 8 × DO (H)
• 8 × PWM (H)
✅ Processing and Memory
DDR4 8 Gbit memory
Flash 64 Gbit storage
FRAM 256 Kbit for non-volatile data backup
✅ Interfaces
1 × USB
1 × RS232
1 × Ethernet
4 × AHD video inputs (720P / 1080P)
✅ Summary of Key Features
10.1-inch full-screen display (1280×800)
900 cd/m² high-brightness screen
5 × isolated CAN channels (CANopen, SAE J1939)
CoDeSys 3.5 programming environment
20 I/O channels for control and monitoring
Multiple interfaces: USB, RS232, Ethernet, 4 × AHD video inputs
