Display Size: 10.1 inch, 1280×800 resolution
Brightness: 900 cd/m² sunlight-readable display
Communication: 5 × CAN (CANopen / SAE J1939 / User-defined)
Rotary Encoders: 2 × rotary input for precise adjustment
Programming Environment: CoDeSys 3.5

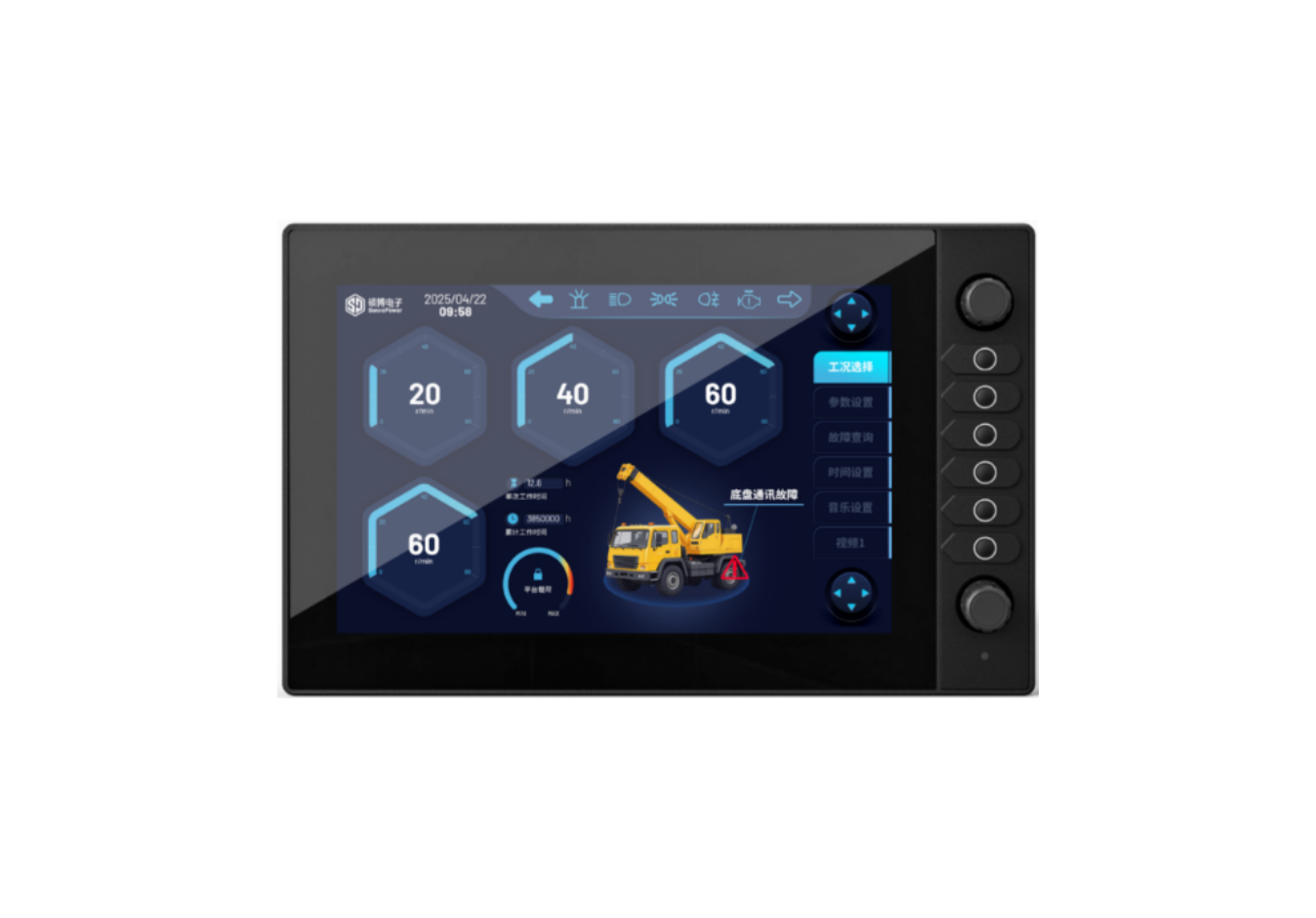

The SPD-101-H2x combines durability, precision, and high-performance computing for intelligent control systems in construction, agricultural, and sanitation machinery.
It provides a bright visual interface and smooth user operation even in harsh outdoor environments.
✅ Display and Visibility
10.1-inch TFT-LCD with 1280×800 resolution
900 cd/m² brightness ensures excellent readability under sunlight
Wide viewing angle and anti-glare design for outdoor applications
✅ Communication and Protocol
5 × isolated CAN channels for reliable communication
Compatible with CANopen, SAE J1939, and user-defined protocols
Suitable for distributed control networks and heavy vehicle systems
✅ Rotary Encoders and Keys
2 × rotary encoders for intuitive parameter control
6 independent function keys for quick operation
Designed for vibration resistance and long-term reliability
✅ Programming Environment
Supports CoDeSys 3.5 for logic control and HMI interface programming
Enables flexible configuration for different machine applications
✅ I/O Resources
Total I/O: 20 (20 Inputs / 8 Outputs)
• 8 × DI (H/L)
• 12 × DI (H)
• 14 × AI (U 0–10 V)
• 2 × AI (U 0.4–32 V)
• 8 × AI (R 4–20 mA)
• 4 × PI (≤30 kHz)
• 1 × PI (AB)
• 8 × DO (H)
• 8 × PWM (H)
✅ Processing and Memory
DDR4 8 Gbit memory
Flash 64 Gbit storage
FRAM 256 Kbit for non-volatile data storage
✅ Interfaces
1 × USB
1 × RS232
1 × Ethernet
4 × AHD video inputs (720P / 1080P)
✅ Summary of Key Features
10.1-inch TFT-LCD display (1280×800)
900 cd/m² brightness, sunlight readable
5 × isolated CAN channels (CANopen / SAE J1939)
2 × rotary encoders + 6 independent keys
CoDeSys 3.5 programming support
20 I/O channels for versatile control
Interfaces: USB, RS232, Ethernet, 4 × AHD video
