Display Size: 10.1 inch, 1280×800 resolution
Brightness: 900 cd/m² sunlight-readable screen
Communication: 5 × CAN (CANopen / SAE J1939 / User-defined)
Programming Environment: CoDeSys 3.5
Navigation Keys: 8 function keys + 1 navigation keypad

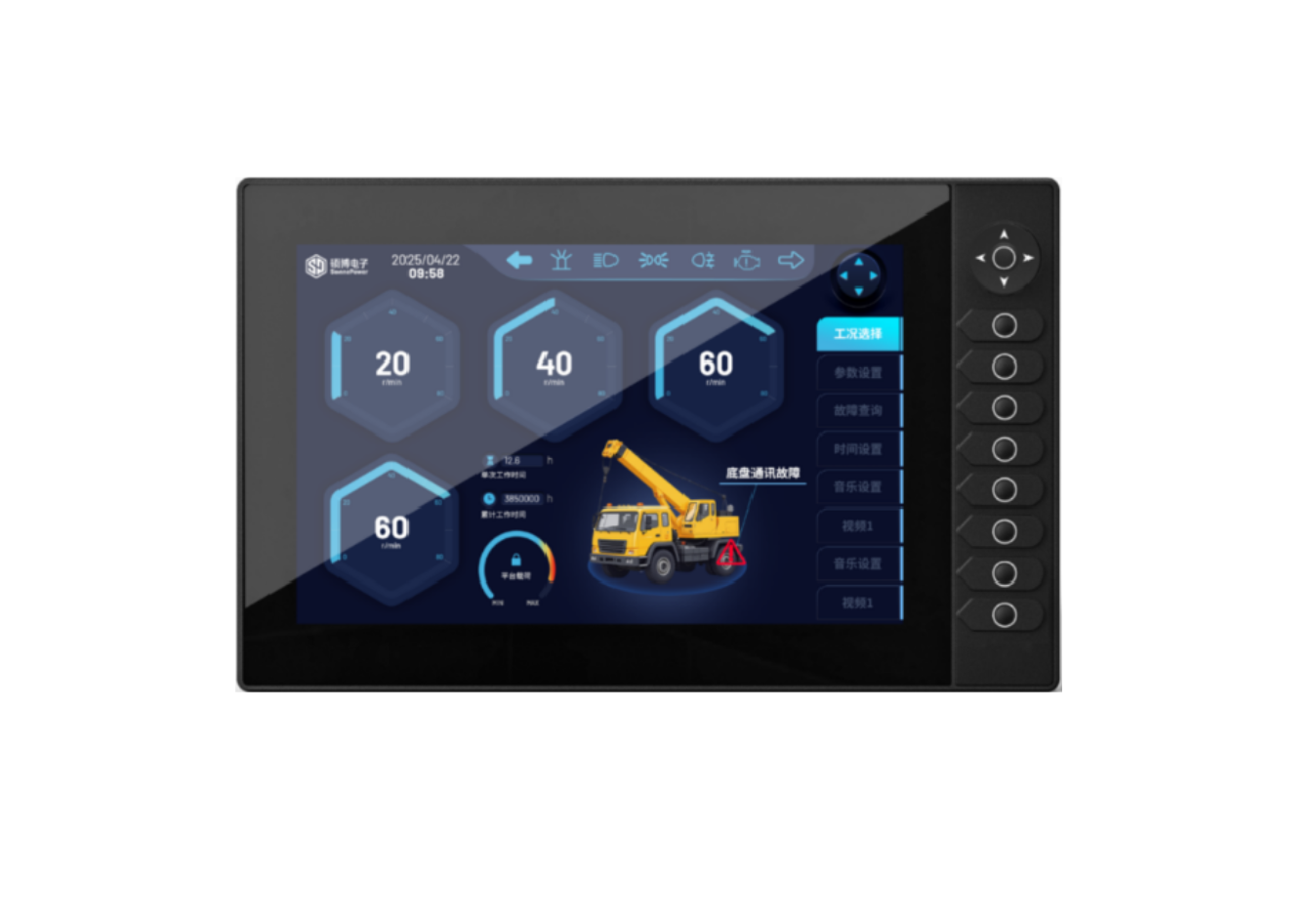

The SPD-101-H1x delivers powerful display performance and durable operation for industrial and mobile machinery.
It combines high visibility, fast booting, and multiple communication options to meet the needs of rugged field environments.
✅ Display and Visibility
10.1-inch TFT-LCD display with 1280×800 resolution
900 cd/m² brightness for clear visibility under direct sunlight
Rugged and stable screen design for outdoor applications
✅ Communication and Protocol
5 × isolated CAN communication channels
Supports CANopen, SAE J1939, and user-defined CAN protocols
Ensures reliable communication for mobile and construction machinery
✅ Programming Environment
Based on CoDeSys 3.5, enabling customized logic and visualization
Supports flexible configuration and easy system integration
✅ I/O Resources
Total I/O: 20 (20 Inputs / 8 Outputs)
• 8 × DI (H/L)
• 12 × DI (H)
• 14 × AI (U 0–10 V)
• 2 × AI (U 0.4–32 V)
• 8 × AI (R 4–20 mA)
• 4 × PI (≤30 kHz)
• 1 × PI (AB)
• 8 × DO (H)
• 8 × PWM (H)
✅ Processing and Memory
DDR4 8 Gbit RAM
Flash 64 Gbit storage
FRAM 256 Kbit for non-volatile data retention
✅ Interfaces
1 × USB
1 × RS232
1 × Ethernet
4 × AHD video inputs (720P / 1080P)
✅ User Interface
8 independent keys + 1 navigation keypad for easy operation
Ergonomic layout for equipment operators in harsh conditions
✅ Summary of Key Features
10.1-inch TFT-LCD (1280×800)
900 cd/m² high-brightness display
5 × isolated CAN channels (CANopen / SAE J1939)
CoDeSys 3.5 programming support
Navigation keypad + 8 function keys
USB, RS232, Ethernet, and AHD video interfaces
